AWS Glue

Disclaimer​

Your use of this download is governed by Stonebranch's Terms of Use.

Overview​

AWS Glue is a serverless data-preparation service for extract, transform, and load (ETL) operations. It makes it easy for data engineers, data analysts, data scientists, and ETL developers to extract, clean, enrich, normalize, and load data.

This Universal Extension provides the capability to submit a new AWS Glue Job.

Version Information​

Template Name

Extension Name

Extension Version

Status

AWS Glue

ue-aws-glue

2 (Current 2.1.0)

Fixes and new Features are introduced.

AWS Glue

ue-aws-glue

1

Hot Fixes Only (Until UAC 7.2 and 7.3 are End of Support)

Refer to Changelog for version history information.

Software Requirements​

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Software Requirements for Universal Template and Universal Task​

Tested with Python version 3.7.6 and 3.11.6 and with the Universal Agent bundled Python distribution.

Software Requirements for Universal Agent​

Both Windows and Linux agents are supported.

  • Universal Agent for Windows x64 Version >= 7.4.0.0
  • Universal Agent for Linux Version >= 7.4.0.0

Software Requirements for Universal Controller​

Universal Controller Version >=7.4.0.0

Network and Connectivity Requirements​

Extension's Universal Agent host should be able to reach AWS Glue REST endpoints. The AWS Credentials provided in the AWS Glue Universal Task, should have sufficient permissions on AWS to invoke Glue Jobs.

Key Features​

This Universal Extension provides the following key features.

  • Actions
    • Start a Glue job.
    • Start a Glue job and wait until it reaches state "success" or "failed".
  • Authentication
    • Authentication through HTTPS
    • Authentication through IAM Role-Based Access Control (RBAC) strategy.
  • Input/Output
    • Option to pass Input Arguments as UAC script supporting UAC environment variables and UAC Functions.
  • Other
    • Support for Proxy communication via HTTP/HTTPS protocol.

Import Universal Template​

To use the Universal Template, you first must perform the following steps.

  1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
  2. To import the Universal Template into your Controller, follow the instructions here.
  3. When the files have been imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task​

For a new Universal Task, create a new task, and enter the required input fields.

Input Fields​

The input fields for this Universal Extension are described in the following table.

Field

Input type

Default value

Type

Description

Action

Required

Start Job Run

Choice

The action performed upon the task execution.

The available actions are as follows.

  • Start Job Run.

AWS Region

Optional since version 1.1.0

Optional

-

Text

Region for the Amazon Web Service. Find more information about the AWS Service endpoints and quotas here.

When AWS Region is not populated as part of the task definition, during task execution the integration will look for credentials on the task execution environment. Refer to configuration options for more information.

AWS Region field is optional, however it is necessary to provide a valid AWS Region via this field or one of the other Amazon-supported methods in order for the AWS Glue Task to work properly.

AWS Credentials

Optional since version 1.1.0

Optional

-

Credentials

The Credentials definition should be as follows.

  • AWS Access Key ID as "Runtime User".
  • AWS Secret Access Key as "Runtime Password".

When AWS Credentials are not populated as part of the task definition, during task execution the integration will look for AWS Credentials on the task execution environment. Refer to configuration options for more information.

Role Based Access

Optional

False

Boolean

Special type of authorization is provided by Role Assumption where the client sends his own credentials and the role he wants to assume from another user.

If allowed, the client receives temporary credentials with limited time access to some resources.

Role ARN

Optional

-

Text

Role Arn: Amazon Role, which is applied for the connection. Role ARN format: Example RoleArn: arn:aws:iam::119322085622:role.

Required when Role Based Access="True".

Endpoint URL

Optional

-

Text

URL of the AWS endpoint to use instead of the default one.

Job Name

Required

-

Text

Name of the Glue job that will be invoked.

Job Run ID

Optional

-

Text

ID of a previous Job Run to retry.

Security Configuration

Optional

-

Text

Name of the Security Configuration structure to be used with the Job Run.

Execution Class

Introduced in version 2.0.0

Optional

-- None --

Choice

Indicates what execution class is used when the job is run. Available options are the following.

  • STANDARD
  • FLEX

Worker Type

Optional

-- None --

Choice

Type of predefined worker that is allocated when a job runs. Available options are the following.

  • Standard
  • G.1X
  • G.2X
  • G.4X
  • G.8X
  • G.025X

Introduced in version 2.0.0: G.4X, G.8X, G.025X

Number Of Workers

Optional

-

Integer

Number of workers of a defined Worker Type that are allocated when a job is executed. The maximum number of workers that can be defined are as follows.

  • 299 for G.1X.
  • and 149 for G.2X.

Required when Worker Type is not None.

Job Timeout

Optional

2880

Integer

Job Run timeout in minutes.

info

The value of 2880 Minutes is the default timeout value provided by Amazon for new AWS Glue Jobs. It is suggested that users tune this parameter to the minimum value to avoid having running jobs for more than expected.

For more information please refer to Amazon AWS Glue pricing guide.

Notify Delay Period

Optional

-

Integer

After a job run starts, the number of minutes to wait before sending a job run delay notification.

Input Arguments Source

Introduced in version 1.2.0

Required

Array Field

Choice

Source of job arguments with possible choices: "Array Field" or "Script".

Job arguments replace the default arguments set in the job definition, for the current run. More info here.

Input Arguments Script

Introduced in version 1.2.0

Optional

-

Script

Job arguments in UAC Script in JSON format. Used to pass arguments from UAC environment variables or UAC Functions. Data Type of arguments must be string and character escaping actions to be performed where needed. Check the example for more information.

Visible when Input Arguments Source is configured as "Script".

Input Arguments

Optional

-

Array

Job arguments in array format.

Visible when Input Arguments Source is configured as "Array Field".

Wait for Success or Failure

Introduced in version 1.2.0

Optional

False

Boolean

If selected, the task will continue running until Job reaches the "SUCCEDED" or "FAILED" state."STOPPED", "TIMEOUT","ERROR' are considered "FAILED" states.

Polling Interval

Introduced in version 1.2.0

Optional

60

Integer

The polling interval in seconds between checking for the Job status.
Required when Wait for Success or Failure ="True".

Use Proxy

Optional

-

Boolean

Flag to indicate whether a Proxy should be used for the communication. Proxies set up using this option would overwrite any proxy settings present in the environmental variables.

Proxy Type

Removed in version 2.1.0

Optional

HTTP

Choice

Type of proxy connection to be used. The type of proxy connection chosen depends on the scheme type of the Endpoint and not the proxy server used. Available options are the following.

  • HTTP
  • HTTPS
  • HTTPS With Credentials

Visible only when Use Proxy = "True".

tip

This field is removed (hidden) as it is not required to be filled anymore by users, and only HTTPS endpoints are supported.

Proxy

Optional

-

Text

URL of the proxy server to be used.

Valid formats are the following.

http://proxyip:port or https://proxyip:port.

Visible when Use Proxy is checked.

Proxy CA Bundle File

Optional

-

Text

The path to a custom certificate bundle to use when establishing SSL/TLS connections with proxy.

Visible when Use Proxy is checked.

Proxy Credentials

Optional

-

Credentials

Credentials to be used for the proxy communication.

The credential definition should be as follows.

  • Proxy Username as "Runtime User".
  • Proxy Password as "Runtime Password".

Visible when Use Proxy is checked.

Task Examples​

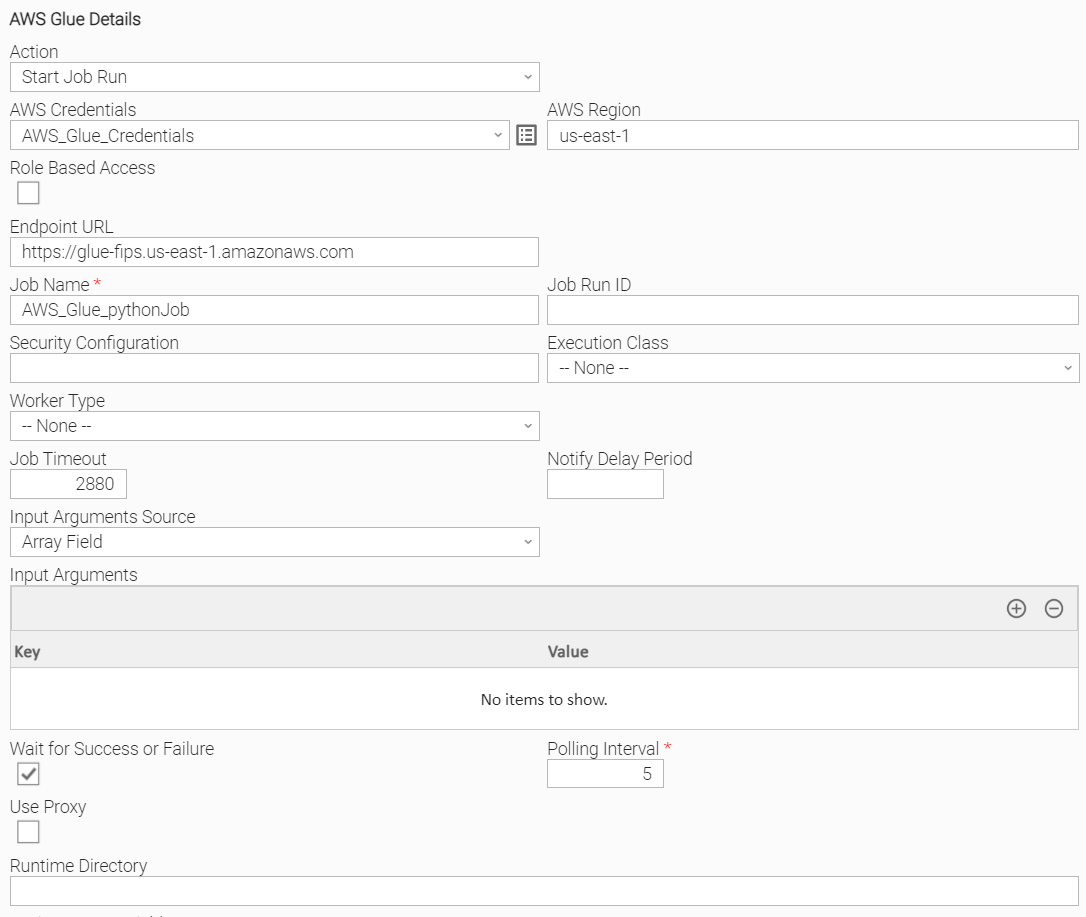

Start Job Run​

Start a new job run.

Start Job Run with all optional input arguments​

Start a new Job Run for a given Run ID (retries a previous execution), with all optional input argument.

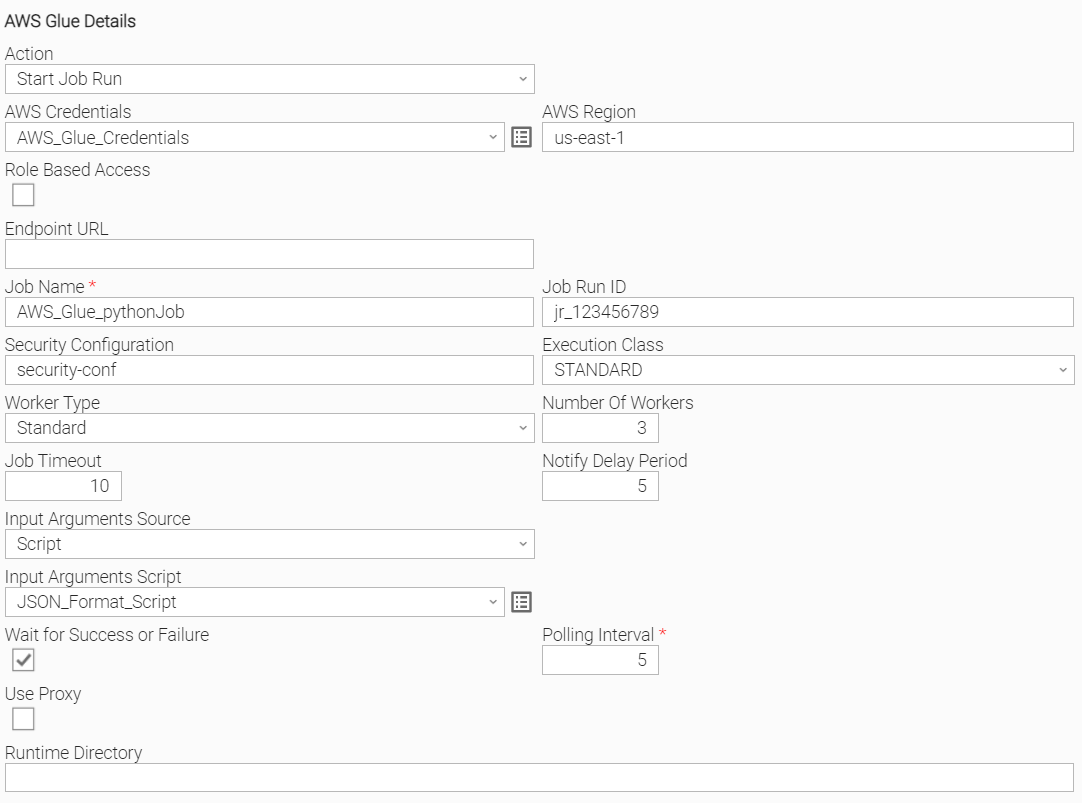

Start Job Run with all optional input arguments and script​

Start a new Job Run for a given Run ID (retries a previous execution), with all optional input argument as above but use "Script" as Input Arguments Source.

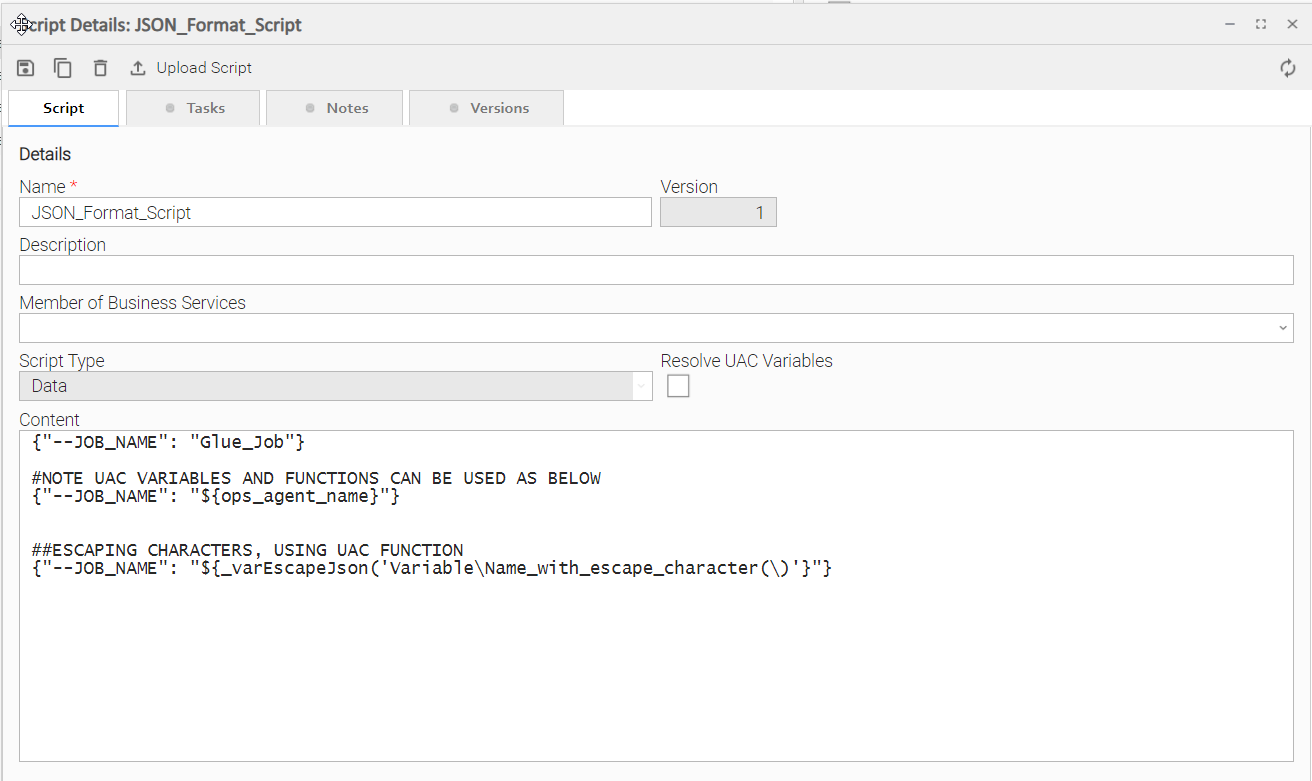

Job arguments in UAC Script in JSON format can pass arguments from UAC Variables or UAC Functions as shown below. More information about escaping characters for json format here.

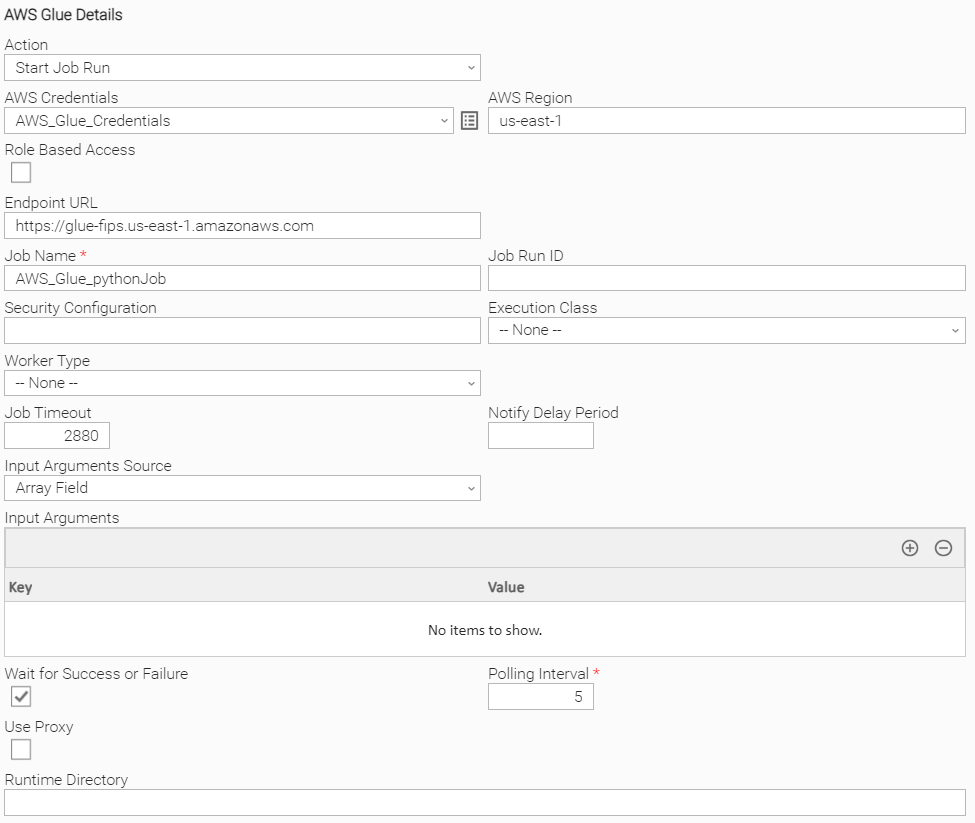

Start Job Run with Endpoint URL​

Start a new Job Run, overriding the default AWS Endpoint.

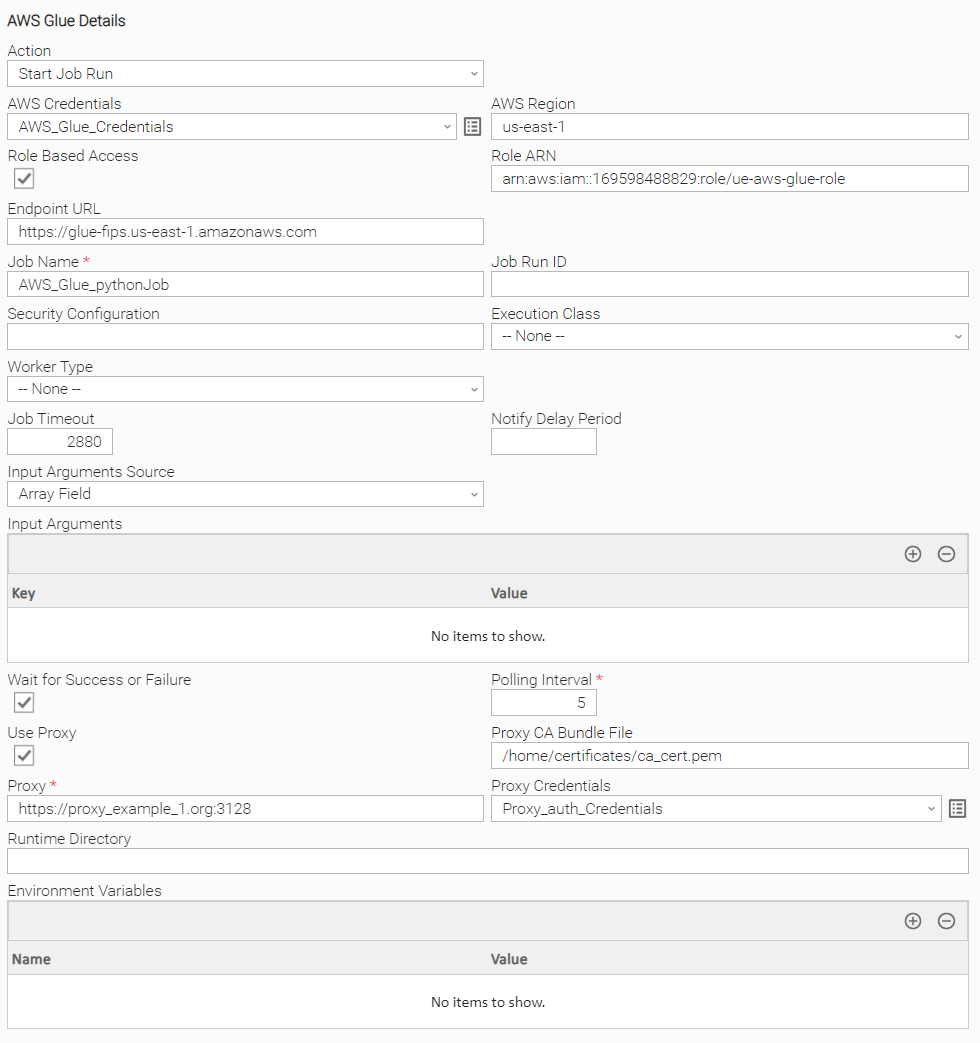

Start Job Run with Role ARN and Proxy configuration​

Start a new Job Run assuming a provided ARN Role, and also using a Proxy configuration.

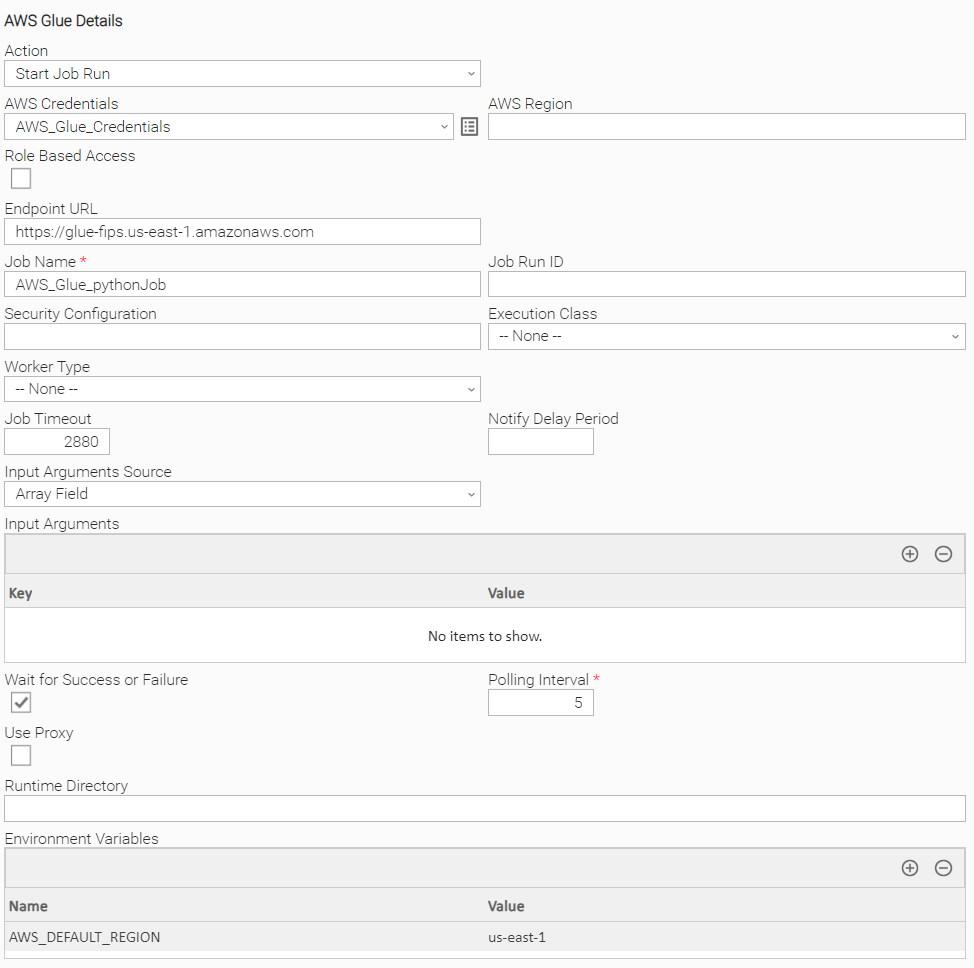

Start Job Run with Environment Variables as Region​

Start a new job run, providing no AWS Credentials in task definition and providing AWS Region as Environment Variable, leaving the respective input fields empty. AWS Credentials are expected in this case to be configured on the task execution environment. Please refer to AWS Credentials input field for more information.

Task Output​

Output Only Fields​

The output fields for this Universal Extension are described below.

Field

Type

Description

Job Run ID

text

ID of the started job run

Job Run Status

text

Status of the job run.

Generated for Action "Start Job Run" and Wait for Success or Failure = "True", updating live during execution.

Exit Codes​

The exit codes for the Extension are described below.

Exit Code

Status Classification Code

Status Classification Description

Status Description

0

SUCCESS

Successful Execution

SUCCESS: AWS Glue Job started successfully.

0

SUCCESS

Successful Execution with Wait for Success or Failure="True"

SUCCESS: AWS Glue Job started successfully and resulted in status SUCCEEDED.

1

FAIL

Failed Execution

FAIL: < Error Description >.

1

FAIL

Failed Execution with Wait for Success or Failure="True"

FAIL: Job Run started successfully but resulted in status < STATUS >

Available values for are listed below.

  • FAILED
  • ERROR
  • TIMEOUT

2

AUTHENTICATION_ERROR

Bad credentials

AUTHENTICATION_ERROR: Account cannot be authenticated.

3

AUTHORIZATION_ERROR

Insufficient Permissions

AUTHORIZATION_ERROR: Account is not authorized to perform the requested action.

10

CONNECTION_ERROR

Bad connection data or connection timed out

CONNECTION_ERROR: < Error Description >.

11

CONNECTION_ERROR

Extension specific connection error

CONNECTION_ERROR: ProxyConnectionError: Failed to connect to proxy URL <url>.

20

DATA_VALIDATION_ERROR

Input fields validation error

DATA_VALIDATION_ERROR: Some of the input fields cannot be validated. See STDERR for more details.

21

FAIL

User Stopped the execution

FAIL: Job Run started successfully but resulted in status STOPPED.

Extension Output​

In the context of a workflow, subsequent tasks can rely on the information provided by this integration as Extension Output.

Attribute changed is populated as follows.

  • true in case the job is triggered successfully
  • false otherwise

result section includes the following attributes.

Attribute

Type

Description

out_job_run_id

string

ID of the started job run

job_run_status

Introduced in version 1.2.0

text

Status of the job run.

Generated for Action "Start Job Run" with Wait for Success or Failure = "True".

started_on

Introduced in version 1.2.0

text

The date and time at which this job run was started.

Generated for Action "Start Job Run" with Wait for Success or Failure = "True".

last_modified_on

Introduced in version 1.2.0

text

The last time that this job run was modified.

Generated for Action "Start Job Run" with Wait for Success or Failure = "True".

completed_on

Introduced in version 1.2.0

text

The date and time that this job run completed.

Generated for Action "Start Job Run" with Wait for Success or Failure = "True".

error_message

Introduced in version 1.2.0

text

An error message associated with this job run.

Generated for Action "Start Job Run" with Wait for Success or Failure = "True".

An example of the Extension Output with Wait for Success or Failure = "False" for a successful triggering job is presented below.

Extension Output with Wait for Success or Failure = "False"
Extension Output with Wait for Success or Failure =
{
    "exit_code": 0,
    "status_description": "SUCCESS: AWS Glue Job started successfully.",
    "changed": true,
    "invocation": {
        "extension": "ue-aws-glue",
        "version": "2.1.0",
        "fields": { ... }
    },
    "result": {
        "out_job_run_id": "jr_123456789"
    }
}

An example of the Extension Output with Wait for Success or Failure = "True" for a successful triggering job is presented below.

Extension Output with Wait for Success or Failure = "True"
Extension Output with Wait for Success or Failure =
{
    "exit_code": 0,
    "status_description": "SUCCESS: AWS Glue Job started successfully and resulted in status SUCCEEDED.",
    "changed": true,
    "invocation": {
        "extension": "ue-aws-glue",
        "version": "2.1.0",
        "fields": { ... }
    },
    "result": {
        "job_run_id": "jr_57133f7bb82f13a29fa8813d95e2b941a3c6f5f67475227e1bb8d213e888478c",
        "job_run_status": "SUCCEEDED",
        "started_on": "2024-03-27 15:26:30.998000+02:00",
        "last_modified_on": "2024-03-27 15:26:58.791000+02:00",
        "completed_on": "2024-03-27 15:26:58.791000+02:00",
        "error_message": null
    }
}

STDOUT and STDERR​

STDOUT and STDERR provide additional information to the user.

warning

Backward compatibility is not guaranteed for the content of STDOUT/STDERR and can be changed in future versions without notice

Extensions Cancellation and Re-Run​

  • Canceling a task in UAC will only cancel it in UAC and will not have any effect on the running AWS Glue Job.
  • Re-Running a task in UAC will execute the task again and start a new AWS Glue Job.

Integration Modifications​

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

  • Python code modifications should not be done.
  • Template Modifications
    • General Section
      • "Name", "Extension", "Variable Prefix", "Icon" should not be changed.
    • Universal Template Details Section
      • "Template Type", "Agent Type", "Send Extension Variables", "Always Cancel on Force Finish" should not be changed.
    • Result Processing Defaults Section
      • Success and Failure Exit codes should not be changed.
      • Success and Failure Output processing should not be changed.
    • Fields Restriction Section
      The setup of the template does not impose any restrictions, However with respect to "Exit Code Processing Fields" section.
      1. Success/Failure exit codes need to be respected.
      2. In principle, as STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Document References​

This document references the following documents:

Document Link

Description

Universal Templates

User documentation for creating, working with and understanding Universal Templates and Integrations.

Universal Tasks

User documentation for creating Universal Tasks in the Universal Controller user interface.

Credentials

User documentation for creating and working with credentials.

Resolvable Credentials Permitted Property

User documentation for Resolvable Credentials Permitted Property.

Changelog​

ue-aws-glue-2.1.0 (2024-08-29)​

Enhancements​

  • Added: new input field - Endpoint URL (#41648, #118162)

Fixes​

  • Fixed: "Proxy Type" field incorrectly used. It is not required to be filled anymore by users on task definition and from this version onwards it is hidden and not used (#41745)

ue-aws-glue-2.0.0 (2024-04-18)​

Deprecations and Breaking Changes​

  • Breaking Change:drop support for agent 7.3.X or lower, agent version 7.4.X or higher is required

Enhancements​

  • Added: new input field - Execution Class
  • Added: newer worker types compatible with AWS Glue version 3, are now supported

ue-aws-glue-1.2.1 (2023-12-21)​

Fixes​

  • Fixed: auto-renew AWS temporary credentials before expiration when using ARN based access
  • Fixed: fixed issue with polling logic where task would get stuck with status Running (#35135)

ue-aws-glue-1.2.0 (2022-11-11)​

Enhancements​

  • Added: Support Start Glue Job and Wait until Job Reaches status "Succeeded" or "Failed" (#30157)
  • Added: Larger set of output fields (#30157)
  • Added: Log payload response for Job Run Status and Start Glue Job Run Action on debug mode.
  • Added: Option to pass Input Arguments as UAC script supporting UAC environment variables and UAC Functions.

ue-aws-glue-1.1.0 (2022-06-23)​

Enhancements​

  • Added: Allow AWS Credentials and AWS Region as optional fields enabling their configuration on the task execution environment. (#28312)

ue-aws-glue-1.0.0 (2022-03-31)​

Initial Version
