AWS Step Functions

Disclaimer

Your use of this download is governed by Stonebranch's Terms of Use.

Version Information

Template Name	Extension Name	Version	Status
AWS Step Functions	ue-aws-stepfunctions	3.0.0	Fixes and new Features are introduced.

warning

3.0.0 is a major release and introduces breaking changes that might affect some customers depending on their setup. Administrators are strongly advised to refer to Changelog for more information on the changes introduced in this release.

Refer to Changelog for version history information.

Overview

This integration allows customers to execute AWS Step Functions from Universal Controller.

Key Features

Feature	Description
Step Function Execution	Execute an AWS Step Function asynchronously without waiting for the execution to finish, or wait until it reaches a final state.
AWS Credentials Authentication	Authenticate using AWS Credentials with support for IAM Role-Based Access Control (RBAC).
Proxy Support	Communication through a proxy using HTTP or HTTPS.

Requirements

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Area	Details
Python Version	Requires Python 3.11. Tested with Agent bundled Python distribution.
Universal Agent Compatibility	Compatible with Universal Agent for Windows x64 version >= 7.6.0.0. Compatible with Universal Agent for Linux version >= 7.6.0.0.
Universal Controller Compatibility	Universal Controller Version >= 7.6.0.0.
Network and Connectivity	The Universal Agent host must be able to reach AWS Step Functions REST endpoints. The AWS Credentials provided in the Universal Task must have sufficient permissions on AWS to execute the Step Function.

Supported Actions

Action: Start Asynchronous Execution

Starts an AWS Step Function execution. The task can be configured to return immediately after triggering the execution, or to wait until the execution reaches a final state (SUCCEEDED, FAILED, ABORTED, or TIMED_OUT).

Action Output

EXTENSION

The extension output provides the following information:

• exit_code, status_description: General information regarding the task execution.
• changed: Indicates whether the AWS Step Function was successfully triggered.
• invocation.fields: The task configuration used for this execution.
• result.executionArn: The ARN identifying the execution.
• result.stateMachineArn: The ARN identifying the state machine.
• result.name: The name of the execution.
• result.startDate: The date the execution started.
• result.stopDate: The date the execution stopped. Populated only when Wait for Success or Failure is selected.
• result.status: The current status of the execution.
• result.output: The JSON output data of the execution. Populated only when Wait for Success or Failure is selected.
• result.outputDetails: Details about execution output. Populated only when Wait for Success or Failure is selected.

Examples:

Successful execution

{
    "exit_code": 0,
    "status_description": "SUCCESS: AWS Stepfunctions workflow executed successfully.",
    "changed": true,
    "invocation": {
        "extension": "ue-aws-stepfunctions",
        "version": "3.0.0",
        "fields": {
            "action": "Start Asynchronous Execution",
            "credentials_user": "****",
            "credentials_password": "****",
            "region": "us-east-1",
            "role_based_access": false,
            "role_arn": null,
            "state_machine_arn": "arn:aws:states:us-east-1:169598488829:stateMachine:UE_Test_StateMachine",
            "execution_name": "",
            "input": null,
            "use_proxy": false,
            "wait_for_success_or_failure": true,
            "polling_interval": 2,
            "proxy_type": null,
            "proxy": null,
            "proxy_credentials_user": null,
            "proxy_credentials_password": null,
            "proxy_ca_bundle_file": null
        }
    },
    "result": {
        "executionArn": "arn:aws:states:us-east-1:169598488829:execution:UE_Test_StateMachine:ue-stepfunction-65cb4d81-08ff-4fe2-a2c4-0aa6ca878661-1",
        "stateMachineArn": "arn:aws:states:us-east-1:169598488829:stateMachine:UE_Test_StateMachine",
        "name": "ue-stepfunction-65cb4d81-08ff-4fe2-a2c4-0aa6ca878661-1",
        "status": "SUCCEEDED",
        "startDate": "2023-08-15 16:27:58.977000+03:00",
        "stopDate": "2023-08-15 16:28:05.081000+03:00",
        "output": "null",
        "outputDetails": {
            "included": true
        }
    }
}

Failed execution

{
    "exit_code": 2,
    "status_description": "AUTHENTICATION_ERROR: Account cannot be authenticated.",
    "changed": false,
    "invocation": {
        "extension": "ue-aws-stepfunctions",
        "version": "3.0.0",
        "fields": {
            "action": "Start Asynchronous Execution",
            "credentials_user": "****",
            "credentials_password": "****",
            "region": "us-east-1",
            "role_based_access": false,
            "role_arn": null,
            "state_machine_arn": "arn:aws:states:us-east-1:169598488829:stateMachine:UE_Test_StateMachine",
            "execution_name": "",
            "input": null,
            "use_proxy": false,
            "wait_for_success_or_failure": false,
            "polling_interval": 10,
            "proxy_type": null,
            "proxy": null,
            "proxy_credentials_user": null,
            "proxy_credentials_password": null,
            "proxy_ca_bundle_file": null
        }
    },
    "result": null
}

STDOUT

STDOUT provides additional information to the user. The populated content can be changed in future versions of this extension without notice.

Configuration Examples

Example: Start Asynchronous Execution

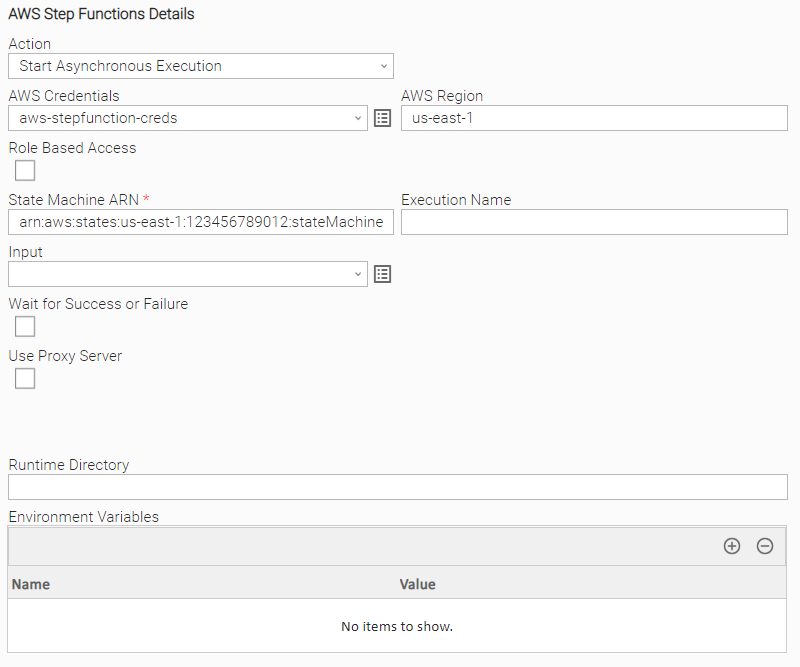

Example of AWS Step Functions Universal Task for triggering a Step Function with AWS Credentials and State Machine ARN only.

Example: Start Asynchronous Execution With Proxy

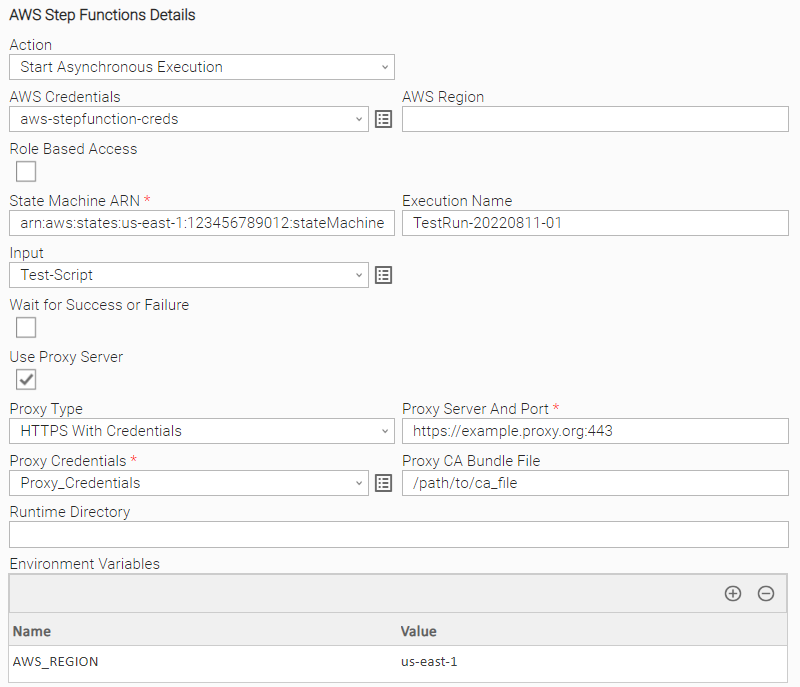

Example of AWS Step Functions Universal Task for submitting a new AWS Step Function with the following arguments.

• Environment Variables for AWS Region
• Input script
• Execution Name
• Proxy Type "HTTPS With Credentials"

Example: Start Asynchronous Execution With IAM Role

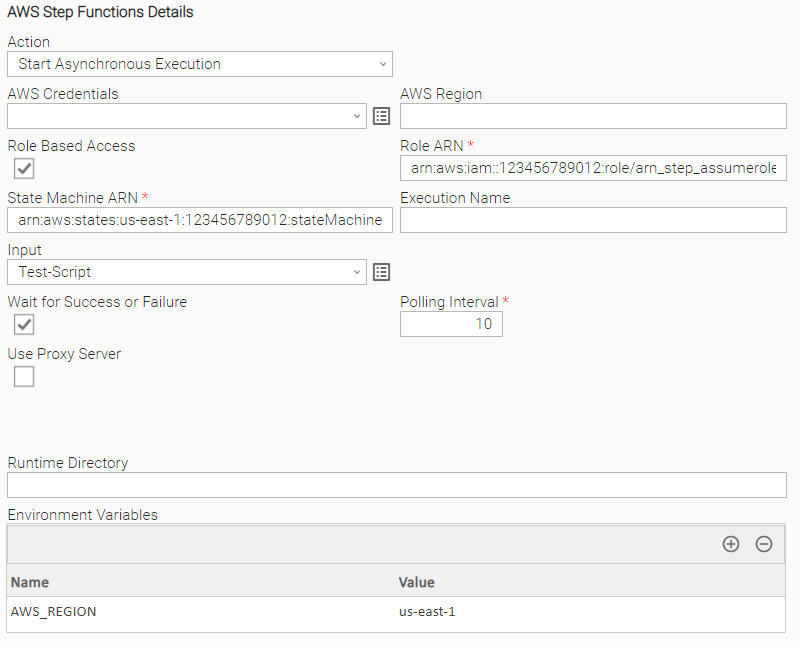

Example of AWS Step Functions Universal Task for submitting a new AWS Step Function using an IAM Role and without providing AWS Credentials.
AWS Credentials are expected in this case to be configured on the task execution environment.
Wait for Success or Failure is selected so the Universal Task instance will continue execution until the AWS Step Function reaches one of the following final states.

• SUCCESS
• FAIL
• ABORTED
• TIMEOUT

Input Fields

Field	Type	Description	Version Information
Action	Choice	Action performed upon the task execution. Available values: "Start Asynchronous Execution" (default).	Introduced in 1.0.0
AWS Region	Text	Region for the Amazon Web Service. When not populated, the integration will look for the region configured on the task execution environment. Refer to configuration options for more information.	Introduced in 1.0.0
AWS Credentials	Credentials	AWS credentials used to authenticate with the service. The credential definition should be as follows. AWS Access Key ID as "Runtime User". AWS Secret Access Key as "Runtime Password". When not populated, the integration will look for credentials configured on the task execution environment. Refer to configuration options for more information.	Introduced in 1.0.0
Role Based Access	Boolean	Enables Role Assumption authorization, where the client sends its own credentials along with the role to assume. If allowed, the client receives temporary credentials with limited time access to the specified resources. Defaults to "False".	Introduced in 1.0.0
Role ARN	Text	Role Amazon Resource Name (ARN) used to access and execute the Step Function. Role ARN format: arn:aws:iam::<AWS Account ID>:instance-profile/<Role name>. This field is required when Role Based Access is "True".	Introduced in 1.0.0
State Machine Arn	Text	The Amazon Resource Name (ARN) of the state machine to execute. This field is required.	Introduced in 1.0.0
Execution Name	Text	The name of the execution. For more information and restrictions refer to Limits Related to State Machine Executions in the AWS Step Functions Developer Guide. If empty, the Universal Task will generate a unique value for each instance. On the first and subsequent runs of a task instance, a suffix is appended to the name representing the execution count of the task, making the execution name unique across runs. This field is visible when Action is "Start Asynchronous Execution".	Introduced in 1.0.0
Input	Script	The string that contains the JSON input data for the execution.	Introduced in 1.0.0
Wait for Success or Failure	Boolean	If selected, the task will continue running until the execution reaches a final state: "SUCCEEDED", "FAILED", "ABORTED", or "TIMED_OUT". Defaults to "False".	Introduced in 1.0.0
Polling Interval	Integer	The polling interval in seconds between checks for the Step Function status. Defaults to 10. This field is required when Wait for Success or Failure is "True".	Introduced in 1.0.0
Use Proxy	Boolean	Indicates whether a proxy should be used for communication with AWS. Defaults to "False".	Introduced in 1.0.0
Proxy Type	Choice	Type of proxy connection to be used. Available values: "HTTP" (default), "HTTPS", "HTTPS With Credentials". This field is required when Use Proxy is "True".	Introduced in 1.0.0
Proxy	Text	Comma-separated list of proxy servers. Valid formats: http://proxyip:port or http://proxyip:port,https://proxyip:port. This field is required when Use Proxy is "True".	Introduced in 1.0.0
Proxy CA Bundle File	Text	The path to a custom certificate bundle to use when establishing SSL/TLS connections with the proxy. This field is visible when Proxy Type is "HTTPS" or "HTTPS With Credentials".	Introduced in 1.0.0
Proxy Credentials	Credentials	Credentials used for proxy communication. The credential definition should be as follows. Proxy Username as "Runtime User". Proxy Password as "Runtime Password". This field is required when Proxy Type is "HTTPS With Credentials".	Introduced in 1.0.0

Output Fields

The following output-only fields provide better visibility during the execution of Universal Task Instances.

Field	Type	Description	Version Information
Execution Arn	Text	The Amazon Resource Name (ARN) which identifies the execution.	Introduced in 1.0.0
Execution Status	Text	The current status of the execution.	Introduced in 1.0.0
Generated Execution Name	Text	The unique execution name generated by the task and used when the AWS service is called.	Introduced in 1.0.0

Cancellation and Rerun

There is no specific cancel logic. In the case of Retry, the action will be re-executed.

Exit Codes

Exit Code	Status	Description
0	SUCCESS	AWS Step Functions workflow executed successfully. When Wait for Success or Failure is "False", the execution was successfully started. When Wait for Success or Failure is "True", the execution reached a final succeeded state.
1	FAIL	Unexpected error. Execute in Debug mode for more information.
2	AUTHENTICATION_ERROR	Account cannot be authenticated.
3	AUTHORIZATION_ERROR	Account is not authorized to perform the requested action.
10	CONNECTION_ERROR	Bad connection data or connection timed out.
11	CONNECTION_ERROR	Failed to connect to proxy URL.
20	DATA_VALIDATION_ERROR	Some of the input fields cannot be validated. See STDOUT for more details.
23	FAIL	Step Function is in FAILED state.
24	FAIL	Step Function is in ABORTED state.
25	FAIL	Step Function is in TIMEOUT state.

STDOUT and STDERR

warning

Backward compatibility is not guaranteed for the content of STDOUT/STDERR and can be changed in future versions without notice.

How To

Import Universal Template

To use the Universal Template, you first must perform the following steps:

info

For large Universal Templates, some parameters need to be adjusted, particularly for MySQL, Universal Controller and Universal Agent:

MySQL (my.cnf)

• max_allowed_packet: Defines the maximum size of a single network packet. Recommended setting: at least 25% greater than the size of your largest imported integration.
• innodb_log_file_size: Determines the size of InnoDB redo log files. Recommended setting: ensure 10% of the log file size exceeds your largest imported integration.

Universal Agent Configuration (config/omss.conf)

• max_msg_size: Specifies the maximum allowable size for messages. Recommended setting: at least 10% greater than your largest imported integration.

Universal Controller Configuration

Universal Controller configuration can restrict import of an integration if the extension maximum bytes is not properly set. This can be configured in the following ways:

• Universal Controller configuration file (tomcat/conf/uc.properties): uc.universal_template.extension.maximum_bytes
• Universal Controller UI Admin Panel: Administration → Properties → Universal Template Extension Maximum Bytes

Recommended setting: ensure the configured value is greater than the size of your largest imported integration.

1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
2. Import the Universal Template into your Controller:
   1. Extract the zip file downloaded from the Integration Hub.
   2. In the Controller UI, select Services > Import Integration Template.
   3. Browse to the export folder under the extracted files for the ZIP file (the file name will be unv_tmplt_*.zip) and click Import.
   4. When the file is imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task

• Create a new Universal Task and enter the required input fields as defined in the Universal Template.
• Before creating the task, ensure any required external accounts, access tokens, or service credentials are available.
• Create the required Resolvable Credentials to be used as input fields in the Universal Task configuration.
• If additional resources are needed (such as configuration scripts, data files, or prerequisite tasks), set these up before configuring the Universal Task.

Integration Modifications

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

• Python code modifications should not be done.
• Template Modifications
  • General Section
    • "Name", "Extension", "Variable Prefix", "Icon" should not be changed.
  • Universal Template Details Section
    • "Template Type", "Agent Type", "Send Extension Variables", "Always Cancel on Force Finish" should not be changed.
  • Result Processing Defaults Section
    • Success and Failure Exit codes should not be changed.
    • Success and Failure Output processing should not be changed.
  • Fields Restriction Section The setup of the template does not impose any restrictions. However, concerning the "Exit Code Processing Fields" section:
    1. Success/Failure exit codes need to be respected.
    2. As STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining the success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Document References

This document references the following documents.

Document Link	Description
AWS Step Functions	User guide for AWS Step Functions.
IAM RBAC authorization model	User documentation for Comparing ABAC to the traditional RBAC model.

Changelog

ue-aws-stepfunctions-3.0.0 (2026-06-02)

Deprecations and Breaking Changes

• Breaking Change: Dropping support for Agents with version <= 7.5 and for Python 3.7.

Enhancements

• Added: Update boto3 library to increase compatibility.
• Added: Improving Python compatibility with future Agent versions.

ue-aws-stepfunctions-2.0.0 (2023-09-01)

Deprecations and Breaking Changes

• Breaking Change: This version supports Universal Agent and Universal Controller from version 7.2 onwards. Customers that used older versions of this integration on Universal Controller and Universal Agent of versions <= 7.2 are required to upgrade to use the new functionality introduced by 2.0.0.

Enhancements

• Added: A suffix is added to the Execution Name before the AWS Service is called. That suffix represents the execution count for a specific task instance, therefore providing uniqueness of the Execution Name.

Fixes

• Fixed: The Extension Output attribute fields.invocation.execution_name is corrected to represent the user input after the resolution of UC Functions and variables.

ue-aws-stepfunctions-1.0.1 (2022-09-29)

Fixes

• Fixed: Correct the handling of escaped characters within input field JSON payload which led to the impossibility of execution of the Step Function. (#30334)

ue-aws-stepfunctions-1.0.0 (2022-08-23)

Enhancements

• Added: Basic functionality for triggering an AWS Step Functions. (#28543)
