Databricks: Automate Jobs and Clusters

Disclaimer​

Your use of this download is governed by Stonebranch's Terms of Use, which are available at Stonebranch Integration Hub - Terms of Use.

Introduction​

This Universal Task allows Stonebranch users to perform end-to-end Orchestration and Automation of Jobs & Clusters in Databricks environment, either in AWS or Azure.

Overview​

This integration will use the Databricks URL and the user bearer token to connect with the Databricks environment. Users can perform the following actions with respect to the Databricks jobs.

  • Create and list jobs
  • Get job details
  • Run now jobs
  • Run submit jobs
  • Repair jobs
  • Cancel run jobs

Also with respect to Databricks clusters, this integration can perform the following operations.

  • Create, start, and restart a cluster
  • Terminate a cluster
  • Get cluster information
  • List clusters

With respect to Databricks DBFS, this Universal Task also provides a feature to upload larger files.

Version​

Template Name

Version

Databricks

1.4.0

Refer to Changelog for version history information.

Software Requirements​

This integration requires a Universal Agent and a Python runtime to execute the Universal Task against a Databricks environment. This Universal Task has been tested with the Azure Databricks environment API version 2.0.

Software Requirements for Universal Template and Universal Task​

Requires Python 3.11.0 or higher. Tested with the Universal Agent bundled Python distribution. It requires "requests" python module.

Software Requirements for Universal Agent​

  • Universal Agent for Windows x64 Version 7.4 and later with Python options installed
  • Universal Agent for Linux Version 7.4 and later with Python options installed

Software Requirements for Universal Controller​

  • Universal Controller Version 7.4.0.0 and later

Technical Considerations​

  • This task uses Python module "requests" to make REST API calls to the Databricks environment.

  • Databricks URL and user bearer token would be required as basic input for this Universal Task.

  • Authentication is possible either by generating a personal access token in Databricks Environment or an Azure AD-based authentication.

  • Using the Azure AD based Authentication involves some configuration as shown below in Azure (https://portal.azure.com).

    • Login to Azure; Use the App registrations services to create an application registration for Azure Databricks to get the client id / Client secret credentials

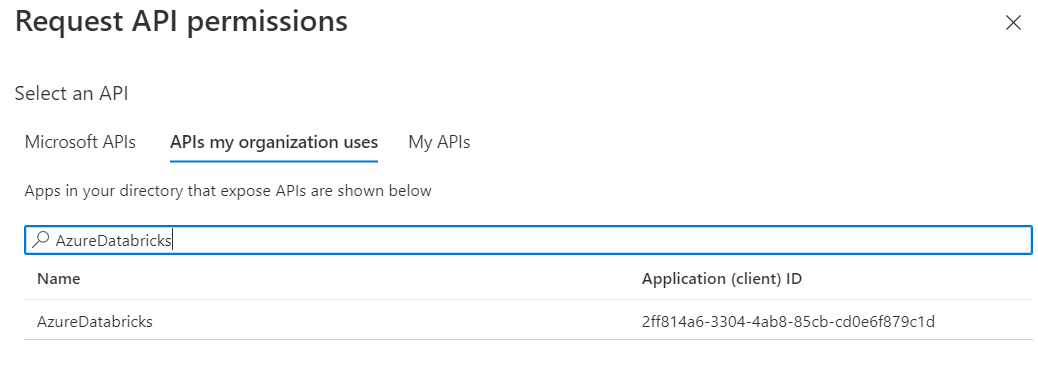

    • For the newly created Databricks App registration add the API permission for Azure Databricks as shown below:

    • Finally, add the service principal to Azure Databricks

  • Please refer to the Databricks API related to jobs and clusters.

Key Features​

Feature

Description

Create Job

Create a job in a Databricks environment from Universal Controller. Here, a JSON input for job creation in Databricks environment will be used.

List jobs

List the jobs available within the Databricks environment.

Get Job details

Provides an existing job definition in Databricks by providing the job ID as input.

Run now Jobs

This feature helps to run an existing job in Databricks environment using the run time input parameters supplied in JSON from the Universal Task and the Universal Controller will be monitoring the execution of the job until it gets completed.

Run Submit jobs

This feature helps to run a job in Databricks environment that can be dynamically defined in JSON as an input parameter in the Universal Task and the Universal Controller will be monitoring the execution of the job until it gets completed.

Repair jobs

This feature lets you re-run one or more tasks within an existing job. The tasks use the latest job and task settings, and their execution is logged in the history of the original job run.

Cancel Run job

Cancel an execution of a job that is in a running state within the Databricks environment.

Create Cluster

Create a cluster in Databricks environment. Input to be provided in the JSON in a script in this Universal Task.

List clusters

List the clusters available in the Databricks environment.

Start cluster

Start a cluster that is in a stopped state in Databricks.

Restart cluster

Restart a cluster in the Databricks environment.

Terminate cluster

Terminate cluster in Databricks environment by providing cluster ID as input.

Get a Cluster info

Provides the definition of an existing cluster in Databricks environment in JSON.

Upload file to DBFS

Upload a file from local server to a Databricks file system DBFS.+

Import Universal Template​

To use this downloadable Universal Template, you first must perform the following steps:

  1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
  2. To import the Universal Template into your Controller, follow the instructions here.
  3. When the files have been imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration.

Configure Universal Task​

For the new Universal Task type, create a new task, and enter the task-specific details that were created in the Universal Template.

Input Fields​

Field

Input Type

Default Value

Type

Description

Databricks URL

Required

Text

Specify the Databricks URL.

Azure AD Authentication

Optional

False

Boolean

Check the box when authentication must go via Azure AD.

Azure Tenant ID

Required

Text

If Azure AD Authentication is checked then specify the Azure Tenant id from the App registrations for databricks.

Azure Client ID & Secret

Required

Credential

If Azure AD Authentication is checked then specify the runtime User as Azure client id & runtime Password as the Secret value from the App registrations for databricks.

Scope

Required

2ff814a6-3304-4ab8-85cb-cd0e6f879c1d/.default

Text

If Azure AD Authentication is checked then specify the scope. The default value of scope would be "2ff814a6-3304-4ab8-85cb-cd0e6f879c1d/.default" as mentioned in the Azure Databricks documents

Bearer Token

Required

Credential

Provide the Databricks Personal token or the Azure AD token.

Databricks Function

Required

Choice

Select a Function that would like to perform with Databricks.

Create Request Script

Required

Script

Feed the script for the new job creation or cluster in Databricks.

Job ID

Optional

Text

Provide the Databricks Job ID.

Job Run Request

Optional

Script

Specify the parameters for Jar or notebook or python or spark-submit or the Job submit run request.

Run ID

Optional

Text

Specify the Databricks Run ID.

Repair

Optional

False

Boolean

Check the box to perform a repair request

First Repair Attempt

Optional

True

Boolean

Check the box if it is the first attempt of repairing the job (no latest Repair ID available )

Latest Repair ID

Optional

Text

The ID of the latest repair. This parameter is not required when repairing a run for the first time, but must be provided on subsequent requests to repair the same run.

Cluster ID

Optional

Text

Provide the cluster ID.

Local file name

Optional

Text

Local file name with path.

DBFS file name

Optional

Text

Provide the Databricks file path and name.

overwrite

Optional

False

Boolean

Specify if the uploaded files need to be overwritten in DBFS.

Log Level

Optional

INFO

Choice

Log Level.

SSL Verify

Optional

True

Boolean

Check if this Universal Task requires certificate verification for Databricks REST-API calls.

Certificate Path and file name

Optional

Text

Path of the certificate for SSL Verification, if the SSL Verify field is enabled.

Status Check Interval

Optional

10

Integer

The interval for checking the status of the job.

Maximum Retry

Optional

10

Integer

Number of retries during waiting for the task to be completed.

Task Examples​

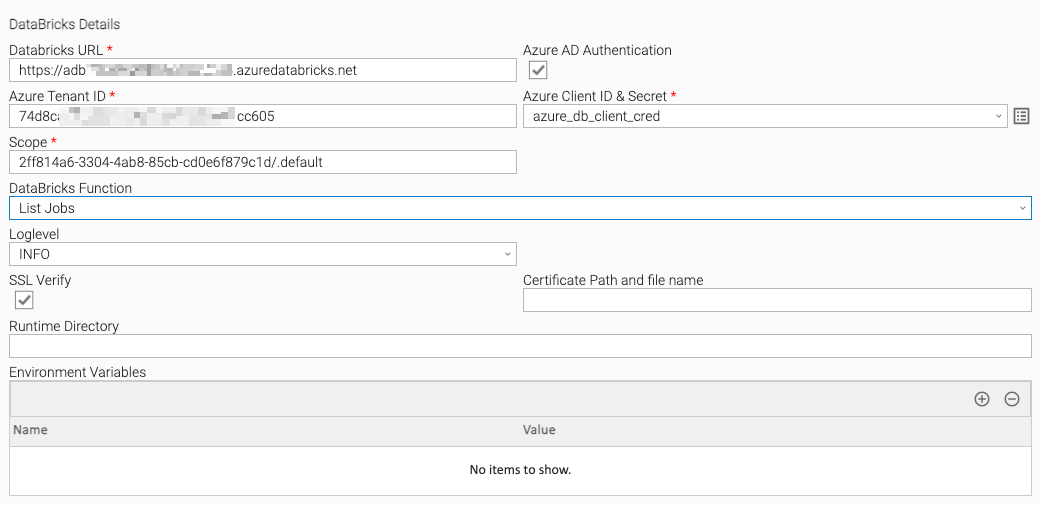

List Job​

Run now Job​

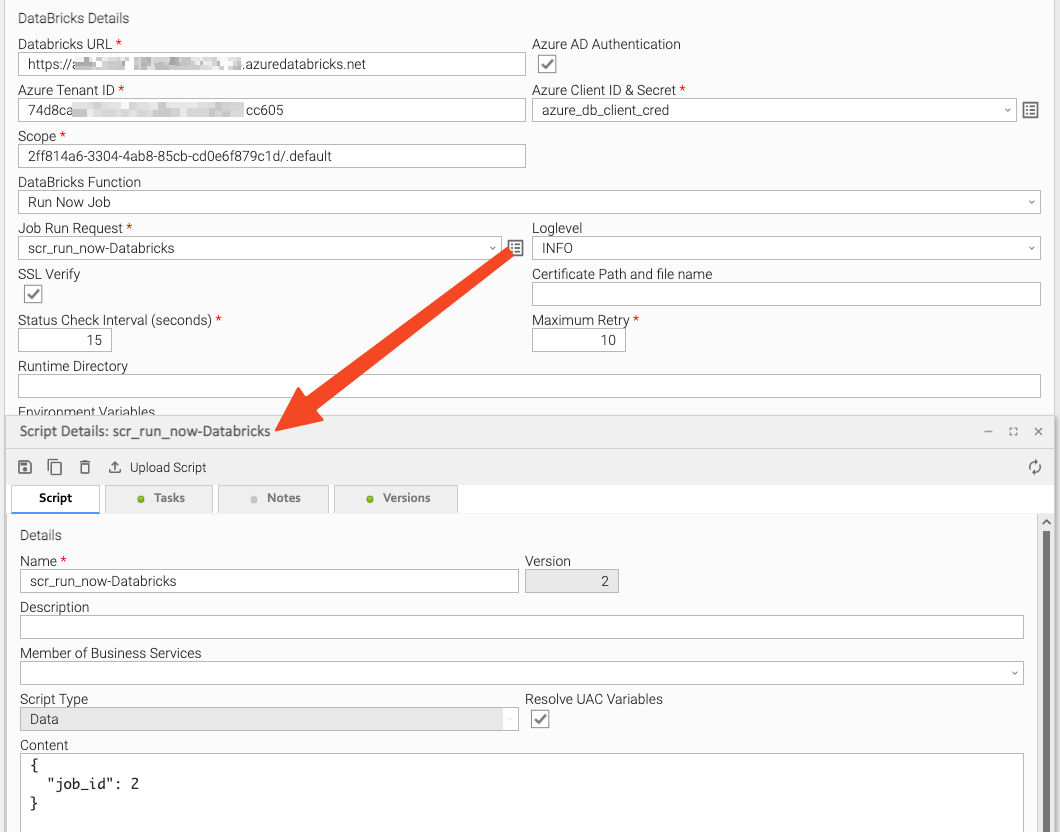

Run Now Job - Script Details​

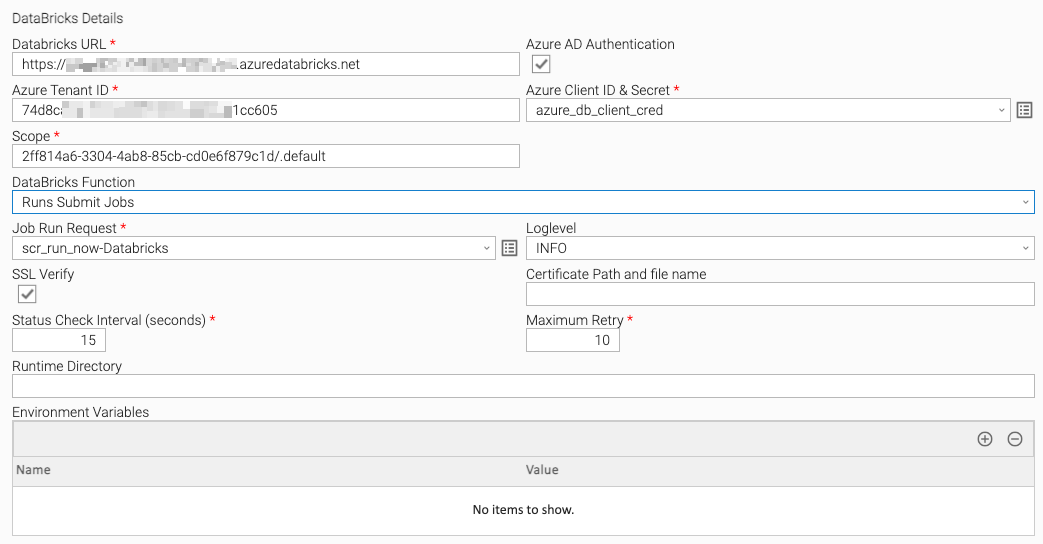

Run Submit Job​

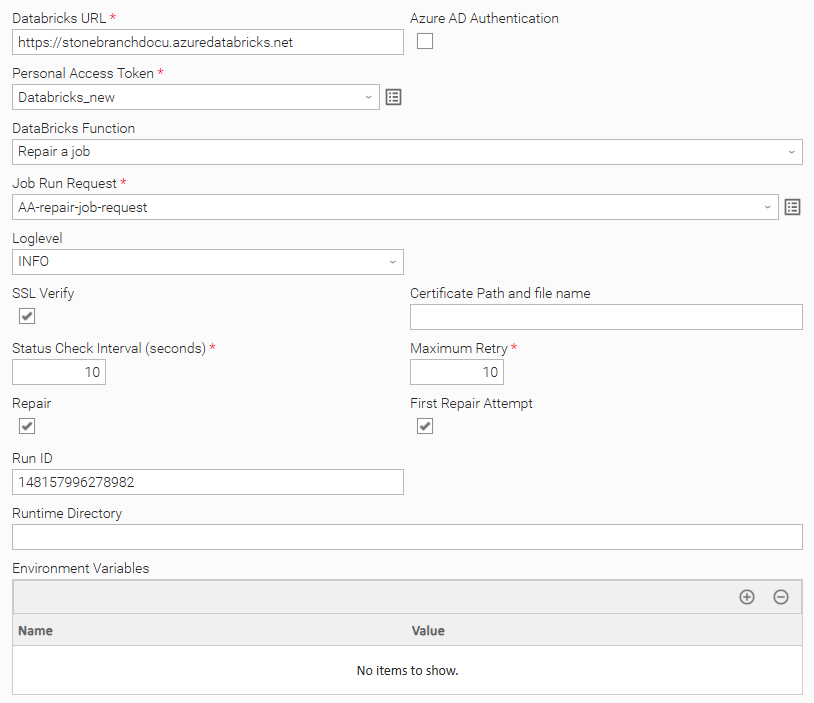

Repair Job - First Attempt​

Repair Job - Second Attempt​

​

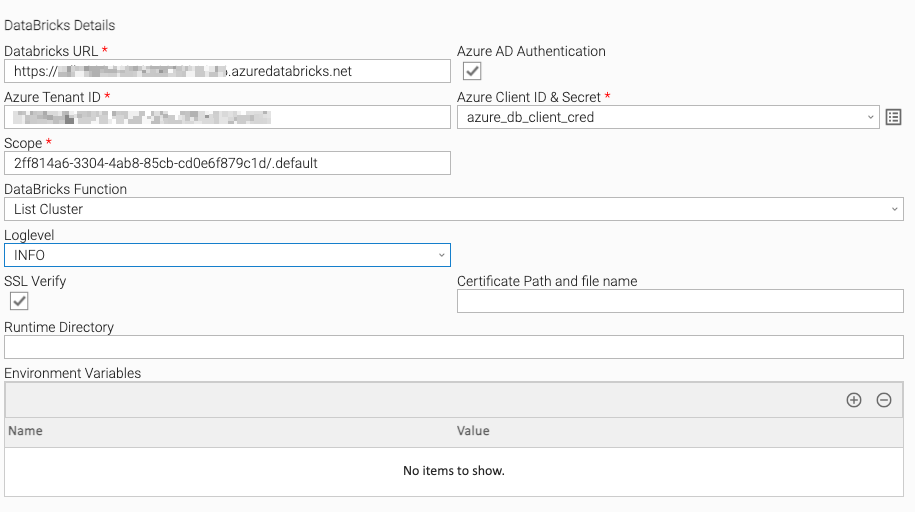

List Cluster​

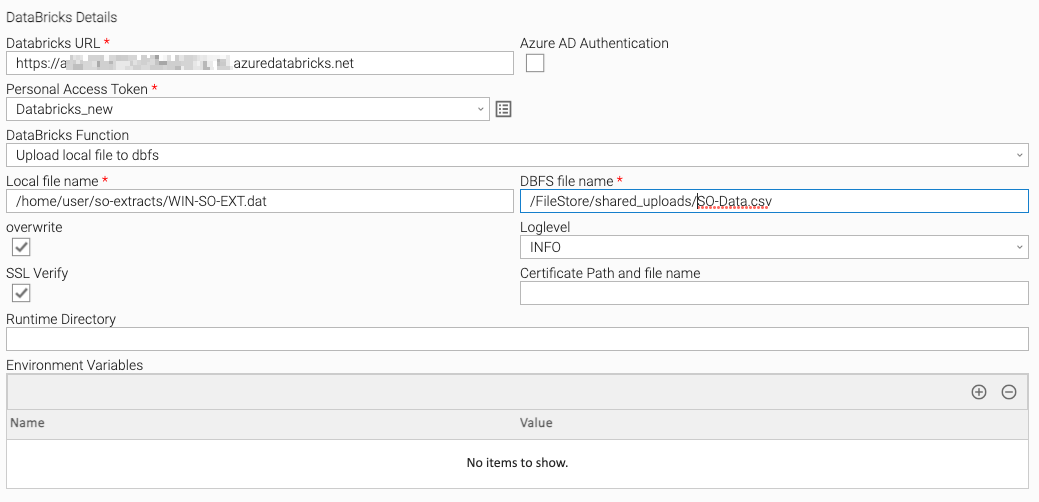

Upload Local File to DBFS​

Task Output​

Exit Codes​

The exit codes for this Universal Task are described in the following table.

Exit Code

Status Classification Code

Status Classification Description

0

SUCCESS

Successful Execution

1

FAIL

The unsuccessful response from the Databricks server can be an incorrect parameter or something on the Databricks side.

10

FAIL

Error acquiring authorization token. Check your tenantID, clientID, and clientSecret.

Document References​

This document references the following documents:

Name

Description

Universal Templates

User documentation for creating Universal Templates in the Universal Controller user interface.

Universal Tasks

User documentation for creating Universal Tasks in the Universal Controller user interface.

Changelog​

ut-cs-databricks-1.4.0 (2025-10-09)​

Enhancements​

  • Added: repair_job option to support repairing failed or incomplete jobs.
  • Added: Support for Databricks multi-task run job outputs in Run Job.
  • Added: repair parameter for run_now and run_submit functions to enable on-demand repair.
  • Added: Enhanced Databricks job logging for improved observability and debugging.

Fixes​

  • Fixed: Minor issues with Retry Interval and Max Retry configurations.
  • Fixed: Refactored large functions into smaller, modular units to improve code quality, maintainability, and readability.

ut-databricks-1.3.3 (2023-04-28)​

Fixes​

  • Fixed: Retry Interval and Max Retry parsing secured. It was failing for actions that don't use these values.

ut-databricks-1.3.2 (2022-07-17)​

Enhancements​

  • Added: Retry count will reset on successful execution.

ut-databricks-1.3.1 (2022-07-08)​

Fixes​

  • Fixed: Retry options added for connection errors also

ut-databricks-1.3.0 (2022-06-13)​

Enhancements​

  • Added: Timeout and Retry options added to requests module

ut-databricks-1.2.2 (2022-06-01)​

Enhancements​

  • Added: A field added for the sleep interval during job status check

ut-databricks-1.2.1 (2022-05-19)​

Fixes​

  • Fixed: check Run Status command may not return run_state value

ut-databricks-1.2.0 (2022-03-16)​

Enhancements​

  • Added: Regenerate Azure Ad token while Job monitor if token expires

ut-databricks-1.1.0 (2022-03-14)​

Enhancements​

  • Added: Included azure Ad based access to DB via MSAL

ut-databricks-1.0.4 (2021-01-04)​

Enhancements​

  • Added: SSL Verify option added

ut-databricks-1.0.3 (2021-12-20)​

Fixes​

  • Fixed: Usage for the Double quotes for the _scriptPath

ut-databricks-1.0.2 (2021-09-20)​

Fixes​

  • Fixed: Print state run now print logs

ut-databricks-1.0.1 (2021-05-06)​

Enhancements​

  • Added: Updates for customer requirements

ut-databricks-1.0.0 (2021-02-05)​

Enhancements​

  • Added: Upload & Export functionalities
