Guidewire Batch

Disclaimer

Your use of this download is governed by Stonebranch's Terms of Use, which are available at Stonebranch Integration Hub - Terms of Use.

Overview

This integration to run the Guidewire batch process from UAC works via SOAP protocol.

Functionality implemented for Guidewire Integration is as follows:

• Fetch Batch processes from Guidewire to UAC
• Run a Batch job by Batch process name
• Terminate batch process by name

Version Information

Template Name	Extension Name	Extension Version
Guidewire	ue-cs-guidewire	1.3.2

Refer to Changelog for version history information.

Software Requirements

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Software Requirements for Universal Template and Universal Task

Requires Python 3.7.6 or higher. Tested with the Universal Agent bundled Python distribution.

Software Requirements for Universal Agent

Both Windows and Linux agents are supported.

• Universal Agent for Windows x64 Version 7.1.0.0 and later with python options installed.
• Universal Agent for Linux Version 7.1.0.0 and later with python options installed.

Software Requirements for Universal Controller

Universal Controller Version 7.1.0.0 and later.

Network and Connectivity Requirements

N/A

Key Features

This Universal Extension provides the following key features:

• Actions
  • Fetch a Batch process name
  • Run a Batch job by Batch process name
  • Terminate batch process by name
• Authentication
  • Basic
• Input/Output
  • Capability to Print the XML Request BODY on STDERR
  • Capability to Print as Output the Run Process ID and Batch Status

Import Universal Template

To use the Universal Template, you first must perform the following steps.

1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
2. To import the Universal Template into your Controller, follow these instructions.
3. When the files have been imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task

For a new Universal Task, create a new task, and enter the required input fields.

Input Fields

The input fields for this Universal Extension are described below.

Field	Input type	Default value	Type	Description
GuideWire SOAP Request URL	Required		Text	Provide the base URL for Guide wire Example: https://bc-dev-gwcpdev.xxxxxx-1-xx-xx-3.guidewire.net/ws/gw/webservice/bc/MaintenanceToolsAPI
GuideWire Logon Credentials	Required		Credential	Provide the GuideWire logon Credentials
Select a GuideWire Functionality	Required	Run a Batch	Choice	Select a Guidewire Functionality Run a Batch Terminate Batch process Fetch process Name
SOAP XML Namespace	Required		Text	Specify SOAP request XML namespace: Different for policy, Claim and billing centers. For example, for policy center: http://guidewire.com/pc/ws/gw/webservice/pc/pc1000/MaintenanceToolsAPI
Batch Process Name	Required		Dynamic Choice	Specify the Batch Process Name when the selected Guidewire functionality is "Run a Batch" or "Terminate Batch process".
Batch Process with Arguments	Optional		Boolean	Check the box if the Batch needs to be run with arguments. Available if the selected functionality is "Run a Batch".
Batch Arguments	Optional		Text	Runtime arguments for the Batch Process. Available if the selected functionality is "Run a Batch", and Batch Process with Arguments is checked.

Task Output

Output Only Fields

The output fields for this Universal Extension are described below.

Field	Type	Description
Batch Process Run ID	Text	Specify the Batch Process ID
Batch Status	Text	Execution status of the Batch process in Guidewire

Task Examples

Example: Run a Batch

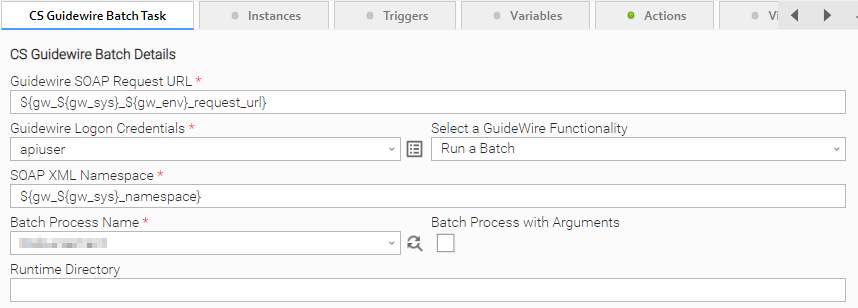

Configuration of Task

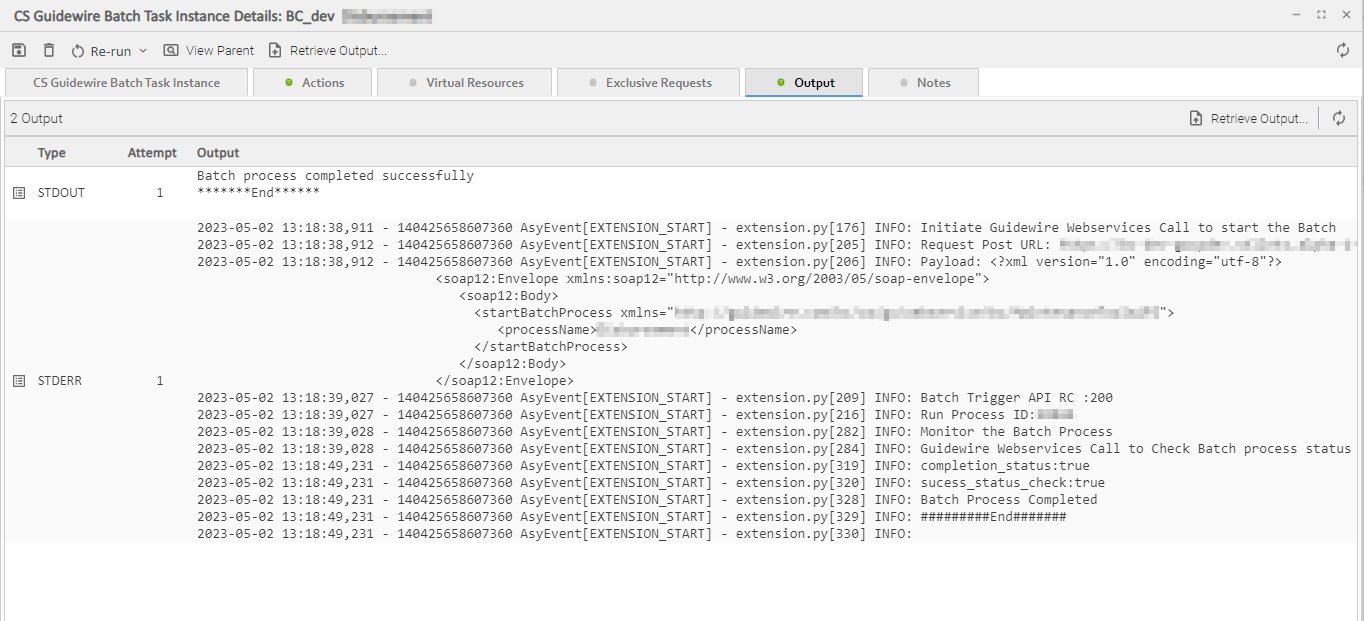

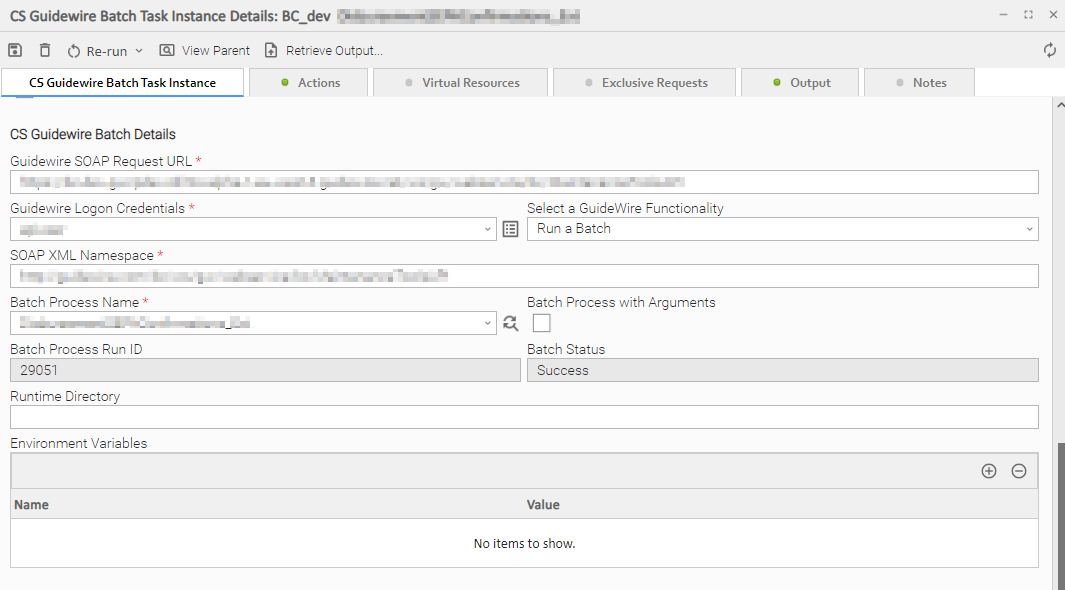

Output of Task

Document References

This document references the following documents.

Document Link	Description
Universal Templates	User documentation for creating, working with and understanding Universal Templates and Integrations.
Universal Tasks	User documentation for creating Universal Tasks in the Universal Controller user interface.
Credentials	User documentation for creating and working with credentials.
Resolvable Credentials Permitted Property	User documentation for Resolvable Credentials Permitted Property.

Integration Modifications

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

• Python code modifications should not be done.
• Template Modifications
  • General Section
    • "Name", "Extension", "Variable Prefix", "Icon" should not be changed.
  • Universal Template Details Section
    • "Template Type", "Agent Type", "Send Extension Variables", "Always Cancel on Force Finish" should not be changed.
  • Result Processing Defaults Section
    • Success and Failure Exit codes should not be changed.
    • Success and Failure Output processing should not be changed.
  • Fields Restriction Section
    The setup of the template does not impose any restrictions, However with respect to "Exit Code Processing Fields" section.
    1. Success/Failure exit codes need to be respected.
    2. In principle, as STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Changelog

ue-cs-guidewire -1.3.2 (2026-02-17)

• Initial public Version
