Oracle OIC

Disclaimer​

Your use of this download is governed by Stonebranch's Terms of Use.

Version Information​

Template Name

Extension Name

Version

Status

Oracle OIC

ue-oracle-oic

1.0.0

Initial Version.

Refer to Changelog for version history information.

Overview​

Oracle Integration Cloud (OIC) is Oracle's cloud-based platform for building and managing integrations between enterprise applications, enabling automated data exchange and process flows across cloud and on-premise systems.

This Universal Extension provides the capability to trigger pre-built OIC integrations directly from UAC, allowing Oracle integrations to participate in broader automation pipelines managed by UAC. Scheduled integrations can be triggered on demand rather than waiting for their OIC-defined schedule, and their execution can be tracked until a final state is reached. REST-based integrations can be invoked through their trigger endpoint and return results immediately upon completion. Jobs can also be launched and monitored through an Oracle API Gateway. To support pipeline setup and discovery, the extension can retrieve and display all integrations available on a given OIC instance.

Parameters and payloads can be defined inline or loaded from external files, and execution results are captured and made available for use in subsequent pipeline steps, giving full control over how OIC integrations fit within a larger automation context.

Key Features​

Feature

Description

Start Integrations and Gateway Jobs

Start OIC Gateway Jobs and REST and Scheduled Integrations.

Monitor Integrations and Gateway Jobs

Monitor for Integrations and Jobs with setting monitor interval and number of times for monitor retry.

Configure Payload for Job Execution

Configure payload to be sent when starting jobs and integrations.

Configure Parameters for Job Execution

Configure parameters for job execution for OIC Gateway Jobs.

Configure Parameters for REST Integrations

Configure query parameters when starting REST integrations.

Requirements​

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Area

Details

Python Version

Requires Python 3.11, tested with Agent bundled python distribution

Universal Agent Compatibility

  • Compatible with Universal Agent for Windows x64 and version >= 7.6.0.0.
  • Compatible with Universal Agent for Linux and version >= 7.6.0.0.

Universal Controller Compatibility

Universal Controller Version >= 7.6.0.0.

Network and Connectivity

Network Connectivity to Oracle.

Supported Actions​

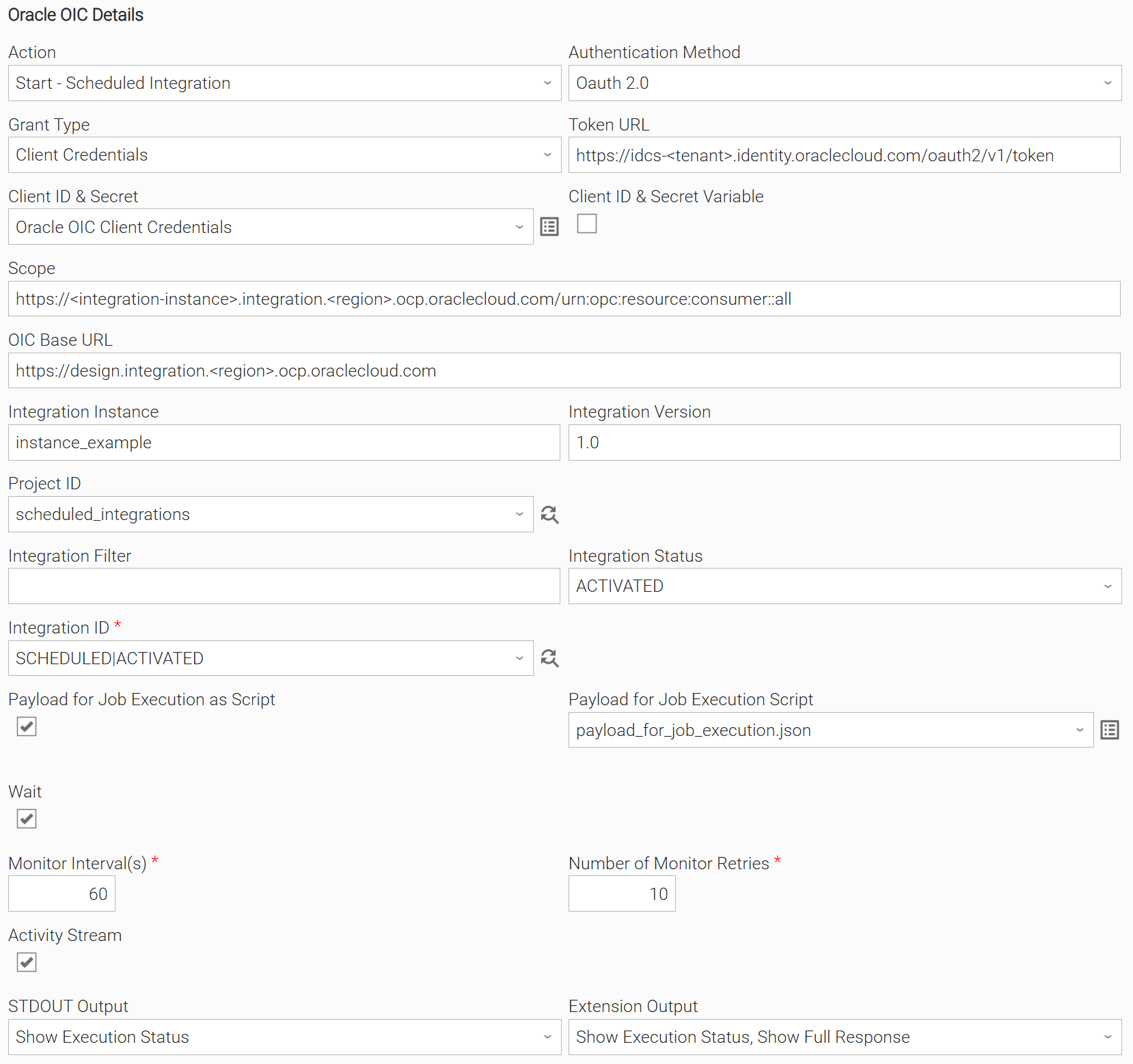

Action: Start - Scheduled Integration​

This action triggers a pre-built scheduled OIC integration on demand, bypassing its OIC-defined schedule, and tracks the execution until a final state is reached.

Action Output​

The extension output provides the following information:

  • exit_code, status_description: General info regarding the task execution. For more information users can refer to the exit code table.
  • invocation.fields: The task configuration used for this task execution.
  • result.execution_status: Displays the Execution Status of the integration.
  • result.response: Displays the full response of the starting of the integration.
  • result.activity_stream: Displays activity stream details if Activity Stream field is checked.
  • result.errors: List of errors that might have occurred during execution.
Successful Execution
{
    "exit_code": 0,
    "status_description": "Task executed successfully",
    "invocation": {
      "extension": "ue-oracle-oic",
      "version": "1.0.0",
      "fields": {
        "action": "Start - Scheduled Integration",
        "authentication": "Oauth 2.0",
        "grant_type": "Client Credentials",
        "token_url": "https://idcs.example.com/oauth2/v1/token",
        "client_id_secret": "****",
        "username_password": "****",
        "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
        "oic_base_url": "https://oic.example.com",
        "oic_rest_base_url": "https://oic.example.com",
        "oic_rest_monitor_url": "",
        "use_tst_endpoint_rest": false,
        "integration_instance": "my-oic-instance",
        "integration_version": "01.00.0000",
        "project_id": "",
        "integration_filter": "",
        "integration_status": "-- None --",
        "integration_id": "MY_SCHEDULED_INTEGRATION|ACTIVATED",
        "payload_exec_as_script": false,
        "payload_for_exec_script": "",
        "payload_for_execution": [
          { "startDate": "2024-01-15" },
          { "region": "US" }
        ],
        "wait_for_execution": true,
        "monitor_interval": 30,
        "monitor_retry": 10,
        "activity_stream": true,
        "stdout_output": "Show Full Response",
        "extension_output": ["Show Execution Status", "Show Full Response"]
      }
    },
    "result": {
      "execution_status": "SUCCEEDED",
      "response": {
        "job": {
          "instanceId": "abc-123-xyz",
          "status": "SUCCEEDED",
          "integrationCode": "MY_SCHEDULED_INTEGRATION",
          "integrationVersion": "01.00.0000",
          "startTime": "2024-01-15T10:00:00.000Z",
          "endTime": "2024-01-15T10:05:32.000Z"
        },
        "activityStream": {
          "statusCode": 200,
          "details": {
            "items": [
              {
                "activityType": "BPM",
                "status": "COMPLETED",
                "message": "Integration completed successfully"
              }
            ]
          }
        }
      },
      "activity_stream": {
        "statusCode": 200,
        "details": {
          "items": [
            {
              "activityType": "BPM",
              "status": "COMPLETED",
              "message": "Integration completed successfully"
            }
          ]
        }
      }
    }
  }
Failed Execution
{
    "exit_code": 1,
    "status_description": "Execution Failed: Max number of retries: 10 reached, quitting program with error status code
  40",
    "invocation": {
      "extension": "ue-oracle-oic",
      "version": "1.0.0",
      "fields": {
        "action": "Start - Scheduled Integration",
        "authentication": "Oauth 2.0",
        "grant_type": "Client Credentials",
        "token_url": "https://idcs.example.com/oauth2/v1/token",
        "client_id_secret": "****",
        "username_password": "****",
        "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
        "oic_base_url": "https://oic.example.com",
        "oic_rest_base_url": "https://oic.example.com",
        "oic_rest_monitor_url": "",
        "use_tst_endpoint_rest": false,
        "integration_instance": "my-oic-instance",
        "integration_version": "01.00.0000",
        "project_id": "",
        "integration_filter": "",
        "integration_status": "-- None --",
        "integration_id": "MY_SCHEDULED_INTEGRATION|ACTIVATED",
        "payload_exec_as_script": false,
        "payload_for_exec_script": "",
        "payload_for_execution": [
          { "startDate": "2024-01-15" },
          { "region": "US" }
        ],
        "wait_for_execution": true,
        "monitor_interval": 30,
        "monitor_retry": 10,
        "activity_stream": true,
        "stdout_output": "Show Full Response",
        "extension_output": ["Show Execution Status", "Show Full Response"]
      }
    },
    "result": {
      "errors": [
        "Max number of retries: 10 reached, quitting program with error status code 40"
      ]
    }
  }

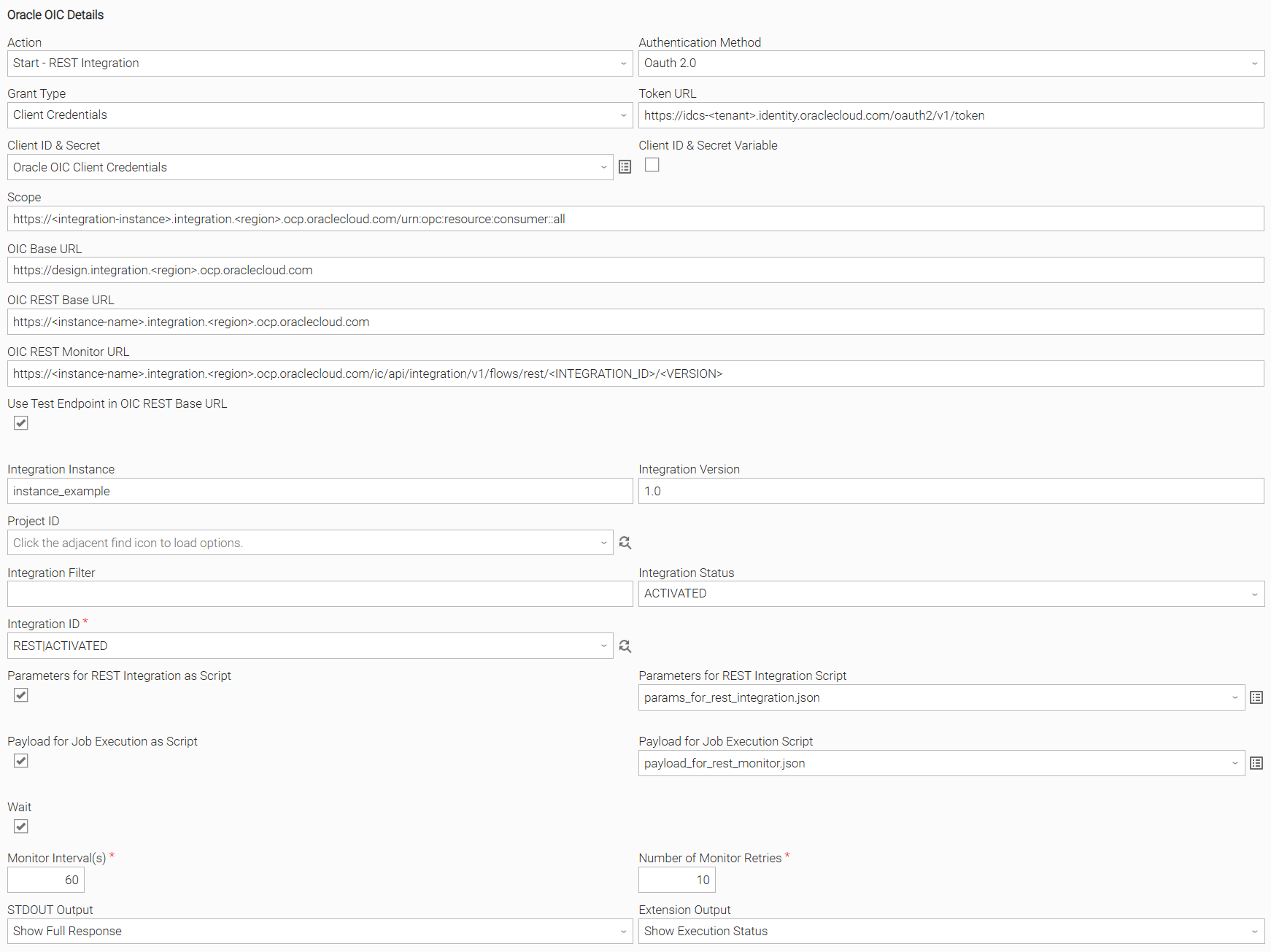

Action: Start - REST Integration​

The action invokes a pre-built REST-based OIC integration through its trigger endpoint and returns the results upon a successful response from OIC.

Action Output​

The extension output provides the following information:

  • exit_code, status_description: General info regarding the task execution. For more information users can refer to the exit code table.
  • invocation.fields: The task configuration used for this task execution.
  • result.execution_status: Displays the Execution Status of the integration.
  • result.response: Displays the full response of the starting of the integration.
  • result.errors: List of errors that might have occurred during execution.
Successful Execution
{
  "exit_code": 0,
  "status_description": "Task executed successfully",
  "invocation": {
    "extension": "ue-oracle-oic",
    "version": "1.0.0",
    "fields": {
      "action": "Start - REST Integration",
      "authentication": "Oauth 2.0",
      "grant_type": "Client Credentials",
      "token_url": "https://idcs.example.com/oauth2/v1/token",
      "client_id_secret": "****",
      "username_password": "****",
      "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
      "oic_base_url": "https://oic.example.com",
      "oic_rest_base_url": "https://oic.example.com",
      "oic_rest_monitor_url": "",
      "use_tst_endpoint_rest": false,
      "integration_instance": "my-oic-instance",
      "integration_version": "01.00.0000",
      "project_id": "",
      "integration_filter": "",
      "integration_status": "-- None --",
      "integration_id": "MY_REST_INTEGRATION|ACTIVATED",
      "parameters_rest_as_script": false,
      "parameters_for_rest_script": "",
      "parameters_for_rest": [
        { "startDate": "2024-01-15" },
        { "region": "US" }
      ],
      "wait_for_execution": true,
      "monitor_interval": 30,
      "monitor_retry": 10,
      "activity_stream": false,
      "stdout_output": "Show Full Response",
      "extension_output": ["Show Execution Status", "Show Full Response"]
    }
  },
  "result": {
    "execution_status": "REST Integration completed successfully",
    "response": {
      "status": "SUCCESS",
      "message": "Data processed successfully",
      "recordsProcessed": 150
    }
  }
}
Failed Execution
{
  "exit_code": 1,
  "status_description": "Execution Failed: {\"code\": 400, \"message\": \"Bad Request: invalid parameter value for
'startDate'\"}",
  "invocation": {
    "extension": "ue-oracle-oic",
    "version": "1.0.0",
    "fields": {
      "action": "Start - REST Integration",
      "authentication": "Oauth 2.0",
      "grant_type": "Client Credentials",
      "token_url": "https://idcs.example.com/oauth2/v1/token",
      "client_id_secret": "****",
      "username_password": "****",
      "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
      "oic_base_url": "https://oic.example.com",
      "oic_rest_base_url": "https://oic.example.com",
      "oic_rest_monitor_url": "",
      "use_tst_endpoint_rest": false,
      "integration_instance": "my-oic-instance",
      "integration_version": "01.00.0000",
      "project_id": "",
      "integration_filter": "",
      "integration_status": "-- None --",
      "integration_id": "MY_REST_INTEGRATION|ACTIVATED",
      "parameters_rest_as_script": false,
      "parameters_for_rest_script": "",
      "parameters_for_rest": [
        { "startDate": "invalid-date" },
        { "region": "US" }
      ],
      "wait_for_execution": true,
      "monitor_interval": 30,
      "monitor_retry": 10,
      "activity_stream": false,
      "stdout_output": "Show Full Response",
      "extension_output": ["Show Execution Status", "Show Full Response"]
    }
  },
  "result": {
    "errors": [
      "{\"code\": 400, \"message\": \"Bad Request: invalid parameter value for 'startDate'\"}"
    ]
  }
}

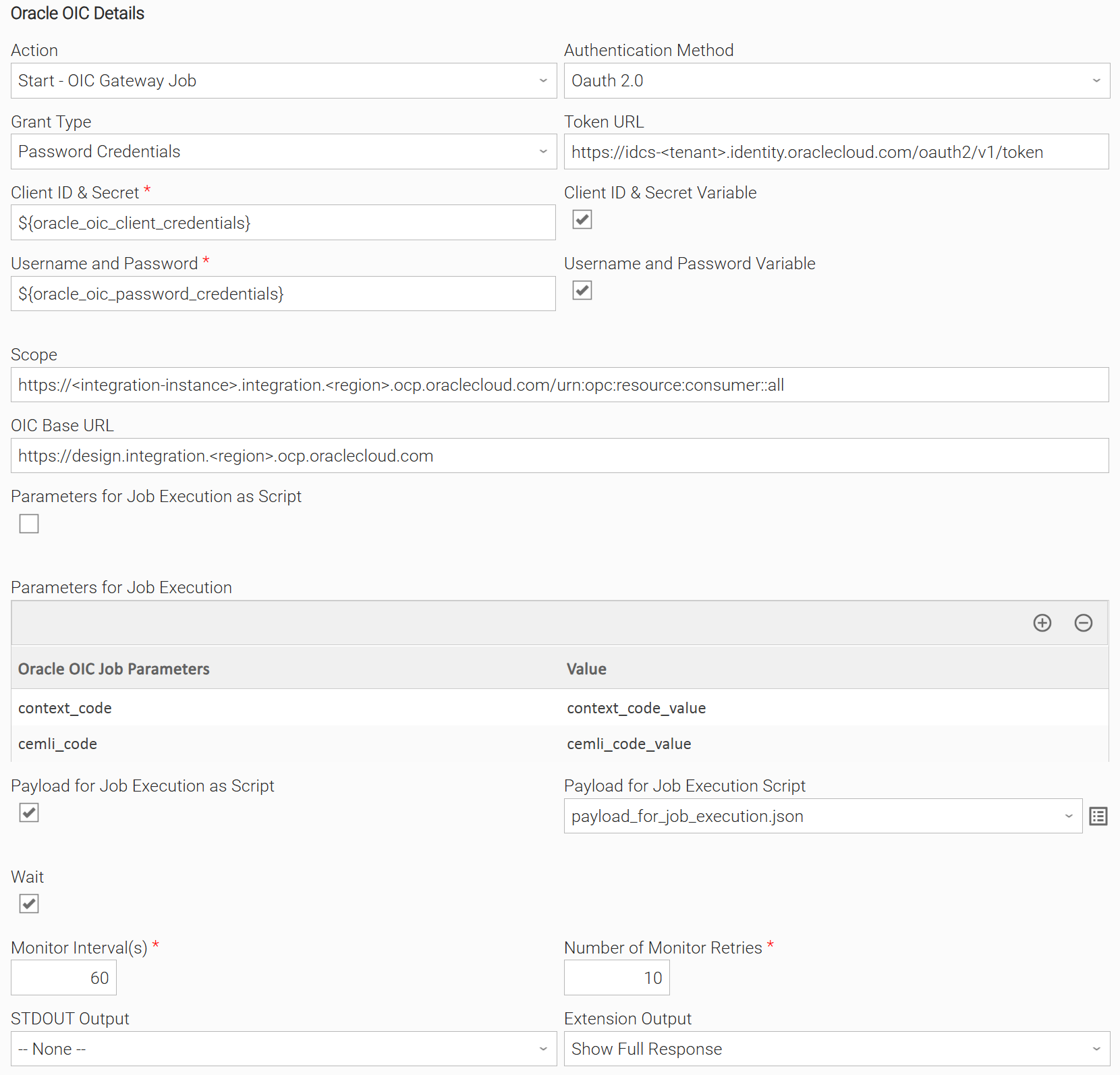

Action: Start - OIC Gateway Job​

Using this action, a job is submitted to OIC through an Oracle API Gateway and monitored until a completed state is reached.

Action Output​

The extension output provides the following information:

  • exit_code, status_description: General info regarding the task execution. For more information users can refer to the exit code table.
  • invocation.fields: The task configuration used for this task execution.
  • result.execution_status: Displays the Execution Status of the job.
  • result.response: Displays the full response of the starting of the job.
  • result.errors: List of errors that might have occurred during execution.
Successful Execution
{
  "exit_code": 0,
  "status_description": "Job submitted (status is Succeeded).",
  "invocation": {
    "extension": "ue-oracle-oic",
    "version": "1.0.0",
    "fields": {
      "action": "Start - OIC Gateway Job",
      "authentication": "Oauth 2.0",
      "grant_type": "Password Credentials",
      "token_url": "https://idcs.example.com/oauth2/v1/token",
      "client_id_secret": "****",
      "username_password": "****",
      "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
      "oic_base_url": "https://oic.example.com/gateway/MYAPI/1.0",
      "oic_rest_base_url": "https://oic.example.com",
      "oic_rest_monitor_url": "",
      "use_tst_endpoint_rest": false,
      "integration_instance": "my-oic-instance",
      "integration_version": "01.00.0000",
      "project_id": "",
      "integration_filter": "",
      "integration_status": "-- None --",
      "integration_id": "MY_GATEWAY_JOB|ACTIVATED",
      "parameters_exec_as_script": false,
      "parameters_for_exec_script": "",
      "parameters_for_execution": [
        { "runDate": "2024-01-15" },
        { "batchSize": "500" }
      ],
      "payload_exec_as_script": false,
      "payload_for_exec_script": "",
      "payload_for_execution": [
        { "entity": "Orders" },
        { "mode": "FULL" }
      ],
      "wait_for_execution": true,
      "monitor_interval": 30,
      "monitor_retry": 10,
      "activity_stream": false,
      "stdout_output": "Show Full Response",
      "extension_output": ["Show Execution Status", "Show Full Response"]
    }
  },
  "result": {
    "execution_status": "Job submitted (status is Succeeded).",
    "response": {
      "Status": "Success",
      "InstanceID": "abc-456-xyz",
      "Message": "Job completed successfully",
      "StartTime": "2024-01-15T10:00:00.000Z",
      "EndTime": "2024-01-15T10:08:45.000Z"
    }
  }
}
Failed Execution
{
  "exit_code": 1,
  "status_description": "Execution Failed: Error status of the OIC Job, RC is not 200",
  "invocation": {
    "extension": "ue-oracle-oic",
    "version": "1.0.0",
    "fields": {
      "action": "Start - OIC Gateway Job",
      "authentication": "Oauth 2.0",
      "grant_type": "Password Credentials",
      "token_url": "https://idcs.example.com/oauth2/v1/token",
      "client_id_secret": "****",
      "username_password": "****",
      "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
      "oic_base_url": "https://oic.example.com/gateway/MYAPI/1.0",
      "oic_rest_base_url": "https://oic.example.com",
      "oic_rest_monitor_url": "",
      "use_tst_endpoint_rest": false,
      "integration_instance": "my-oic-instance",
      "integration_version": "01.00.0000",
      "project_id": "",
      "integration_filter": "",
      "integration_status": "-- None --",
      "integration_id": "MY_GATEWAY_JOB|ACTIVATED",
      "parameters_exec_as_script": false,
      "parameters_for_exec_script": "",
      "parameters_for_execution": [
        { "runDate": "2024-01-15" },
        { "batchSize": "500" }
      ],
      "payload_exec_as_script": false,
      "payload_for_exec_script": "",
      "payload_for_execution": [
        { "entity": "Orders" },
        { "mode": "FULL" }
      ],
      "wait_for_execution": true,
      "monitor_interval": 30,
      "monitor_retry": 10,
      "activity_stream": false,
      "stdout_output": "Show Full Response",
      "extension_output": ["Show Execution Status", "Show Full Response"]
    }
  },
  "result": {
    "errors": [
      "Error status of the OIC Job, RC is not 200"
    ]
  }
}

Action: List - Integrations​

This action retrieves and displays all integrations available on a given OIC instance, including their ID, version, status, and name.

Action Output​

The extension output provides the following information:

  • exit_code, status_description: General info regarding the task execution. For more information users can refer to the exit code table.
  • invocation.fields: The task configuration used for this task execution.
  • result.execution_status: Displays the Execution Status of the integration.
  • result.response: Displays the full response of the starting of the integration.
  • result.errors: List of errors that might have occurred during execution.
Successful Execution
{
  "exit_code": 0,
  "status_description": "Task executed successfully",
  "invocation": {
    "extension": "ue-oracle-oic",
    "version": "1.0.0",
    "fields": {
      "action": "List - Integrations",
      "authentication": "Oauth 2.0",
      "grant_type": "Client Credentials",
      "token_url": "https://idcs.example.com/oauth2/v1/token",
      "client_id_secret": "****",
      "username_password": "****",
      "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
      "oic_base_url": "https://oic.example.com",
      "oic_rest_base_url": "https://oic.example.com",
      "oic_rest_monitor_url": "",
      "use_tst_endpoint_rest": false,
      "integration_instance": "my-oic-instance",
      "integration_version": "01.00.0000",
      "project_id": "",
      "integration_filter": "",
      "integration_status": "-- None --",
      "integration_id": "MY_SCHEDULED_INTEGRATION|ACTIVATED",
      "wait_for_execution": false,
      "monitor_interval": 30,
      "monitor_retry": 10,
      "activity_stream": false,
      "stdout_output": "Show Full Response",
      "extension_output": ["Show Execution Status", "Show Full Response"]
    }
  },
  "result": {
    "execution_status": "Successfully listed 3 integrations",
    "response": {
      "items": [
        {
          "code": "MY_SCHEDULED_INTEGRATION",
          "version": "01.00.0000",
          "status": "ACTIVATED",
          "name": "My Scheduled Integration"
        },
        {
          "code": "MY_REST_INTEGRATION",
          "version": "01.00.0000",
          "status": "ACTIVATED",
          "name": "My REST Integration"
        },
        {
          "code": "MY_INACTIVE_INTEGRATION",
          "version": "01.00.0000",
          "status": "CONFIGURED",
          "name": "My Inactive Integration"
        }
      ],
      "count": 3,
      "totalResults": 3,
      "hasMore": false,
      "limit": 50,
      "offset": 0
    }
  }
}
Failed Execution
{
  "exit_code": 1,
  "status_description": "Execution Failed: {\"code\": 401, \"message\": \"Unauthorized: invalid or expired access
token\"}",
  "invocation": {
    "extension": "ue-oracle-oic",
    "version": "1.0.0",
    "fields": {
      "action": "List - Integrations",
      "authentication": "Oauth 2.0",
      "grant_type": "Client Credentials",
      "token_url": "https://idcs.example.com/oauth2/v1/token",
      "client_id_secret": "****",
      "username_password": "****",
      "scope": "https://oic.example.com:443urn:opc:resource:consumer::all",
      "oic_base_url": "https://oic.example.com",
      "oic_rest_base_url": "https://oic.example.com",
      "oic_rest_monitor_url": "",
      "use_tst_endpoint_rest": false,
      "integration_instance": "my-oic-instance",
      "integration_version": "01.00.0000",
      "project_id": "",
      "integration_filter": "",
      "integration_status": "-- None --",
      "integration_id": "MY_SCHEDULED_INTEGRATION|ACTIVATED",
      "wait_for_execution": false,
      "monitor_interval": 30,
      "monitor_retry": 10,
      "activity_stream": false,
      "stdout_output": "Show Full Response",
      "extension_output": ["Show Execution Status", "Show Full Response"]
    }
  },
  "result": {
    "errors": [
      "{\"code\": 401, \"message\": \"Unauthorized: invalid or expired access token\"}"
    ]
  }
}

Configuration Examples​

Example: Start and Monitor Scheduled Integration​

Start and monitor until the Scheduled Integration finishes in Project "scheduled_integrations" using "Client Credentials" Grant Type. The Payload for Job Execution is set through UAC Script. The execution status is displayed on STDOUT, while both the execution status and response are displayed on the Extension Output. Since Activity Stream is checked, the activity stream details are also displayed on both output types.


Example: Start and Wait for REST Integration to complete​

Start and wait for the REST Integration to complete with using "Client Credentials" Grant Type and configured OIC REST Monitor URL. Use Test Endpoint in OIC REST Base URL is checked. The Parameters for REST Integration and Payload for Job Execution are set through UAC Script. The response is displayed on STDOUT, while the execution status is displayed on the Extension Output.


Example: Start and Monitor OIC Gateway Job​

Start and monitor until the OIC Gateway Job finishes using "Password Credentials" Grant Type. The Parameters for Job Execution are set through Array Field, while the Payload for Job Execution is set using UAC Script. No information is displayed on STDOUT, while the response is displayed on the Extension Output.

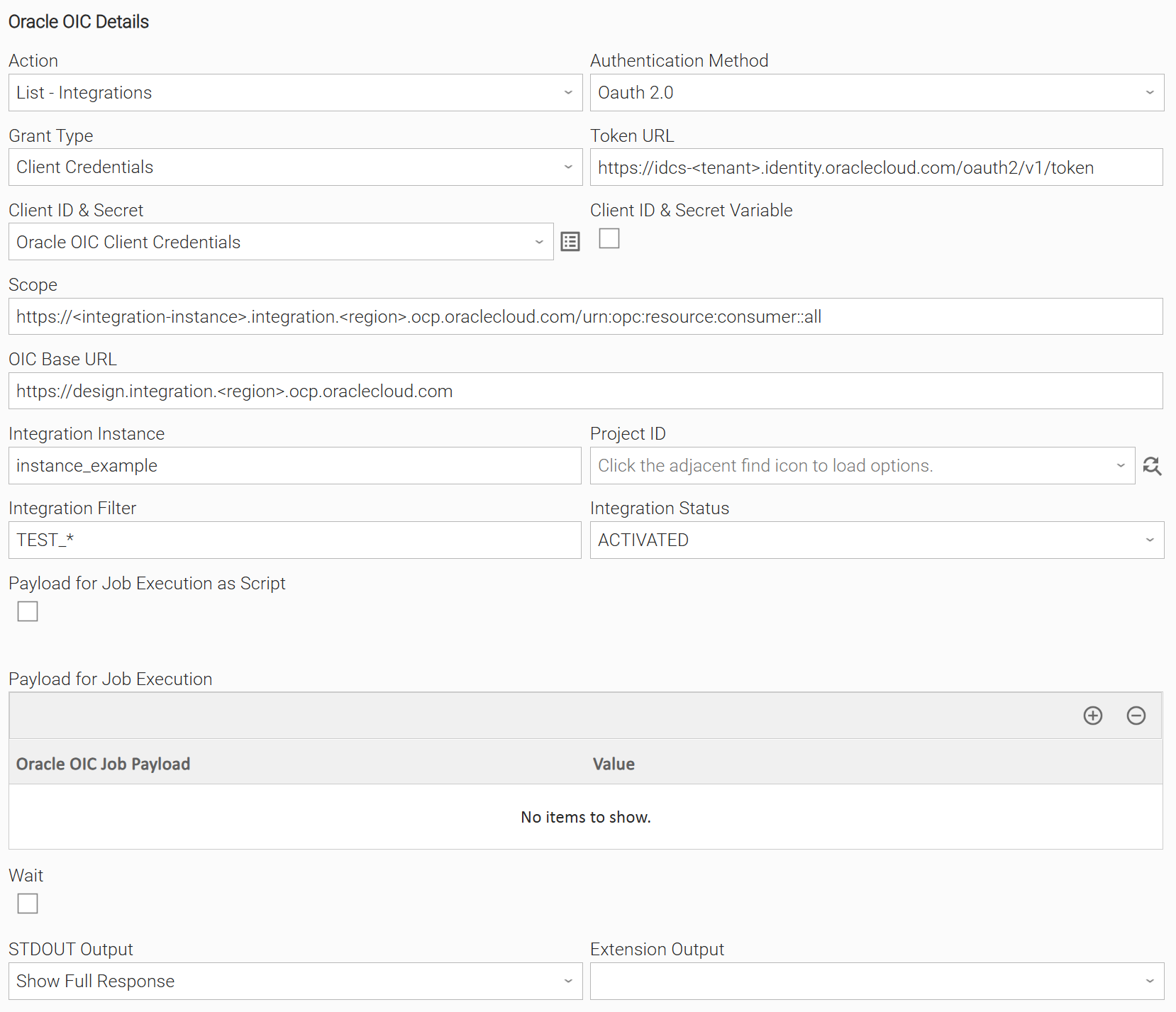

Example: List Integrations​

List all integrations that have status "ACTIVATED" and begin with "TEST" using "Client Credentials" Grant Type. The response listing all integrations and their information is displayed on STDOUT, while no information is displayed on the Extension Output.


Input Fields​

Name

Type

Description

Version Information

Action

Choice

The action performed upon the task execution.

  • Start - Scheduled Integration (default)
  • Start - REST Integration
  • Start - OIC Gateway Job
  • List - Integrations

Introduced in 1.0.0

Authentication Method

Choice

The authentication method used to connect to the Oracle OIC platform.

Authentication methods currently supported:

  • Oauth 2.0 (default)

Introduced in 1.0.0

Grant Type

Choice

The OAuth 2.0 grant type used to obtain an access token.

  • Client Credentials (default)
  • Password Credentials

Introduced in 1.0.0

Token URL

Text

The endpoint used to request an OAuth 2.0 access token.

Introduced in 1.0.0

Client ID & Secret

Credentials

The client credentials used to authenticate against the OAuth 2.0 token endpoint.

The definition of the credential should be as follows:

  • Client ID as "Runtime User".
  • Client Secret as "Runtime Password"

Introduced in 1.0.0

Username and Password

Credentials

The user credentials used when authenticating with the Password Credentials grant type.

The definition of the credential should be as follows:

  • Username as "Runtime User".
  • Password as "Runtime Password"

Available when Grant Type is "Password Credentials".

Introduced in 1.0.0

Scope

Text

The OAuth 2.0 scope defining the level of access requested for the token.

Introduced in 1.0.0

OIC Base URL

Text

The base URL of the OIC instance.

Introduced in 1.0.0

OIC REST Base URL

Text

The base URL used to invoke REST-based OIC integrations on the OIC instance.

Available when Action is "Start - REST Integration".

Introduced in 1.0.0

OIC REST Monitor URL

Text

The URL used to poll for the completion status of a REST integration triggered asynchronously. When set, the extension submits the integration via POST using a generated TraceId, then polls this URL until a final state is reached.

Available when Action is "Start - REST Integration".

Introduced in 1.0.0

Use Test Endpoint in OIC REST Base URL

Checkbox

Enable using test endpoint in the OIC REST Base URL. This enables appending "/test" to the URL.

Available when Action is "Start - REST Integration".

Introduced in 1.0.0

Integration Instance

Text

The name of the OIC integration instance to target.

Available when Action is "Start - Scheduled Integration", "Start - REST Integration" or "List - Integrations".

Introduced in 1.0.0

Integration Version

Text

The version of the integration to be triggered.

Available when Action is "Start - Scheduled Integration" or "Start - REST Integration".

Introduced in 1.0.0

Project ID

Dynamic Choice

The OIC project identifier used to scope integration lookups to a specific project. When set, API requests target integrations and schedules within that project.

Available when Action is "Start - Scheduled Integration", "Start - REST Integration" or "List - Integrations".

Introduced in 1.0.0

Integration Filter

Text

A wildcard pattern used to filter integrations by code or name. Supports * and ? wildcards (case-insensitive).

Available when Action is "List - Integrations".

Introduced in 1.0.0

Integration Status

Choice

Filters integrations by status when Integration Filter is set.

  • -- None --
  • ACTIVATED (default)
  • CONFIGURED
  • INPROGRESS
  • FAILEDACTIVATION

Available when Action is "List - Integrations".

Introduced in 1.0.0

Integration ID

Dynamic Choice

The unique identifier of the integration to be executed.

Available and required when Action is "Start - Scheduled Integration" or "Start - REST Integration" .

Introduced in 1.0.0

Parameters for Job Execution as Script

Checkbox

Enable specifying Parameters for Job Execution through UAC Script.

Available when Action is "Start - OIC Gateway Job".

Introduced in 1.0.0

Parameters for Job Execution Script

Script

The UAC Script containing the Parameters for Job Execution in JSON format.

Available when Parameters for Job Execution as Script is checked.

Introduced in 1.0.0

Parameters for Job Execution

Array

The list of key-value pairs passed as parameters when launching the OIC Gateway Job.

Available when Parameters for Job Execution as Script is unchecked.

Introduced in 1.0.0

Parameters for Rest Integration as Script

Checkbox

Enable specifying Parameters for Rest Integration through UAC Script.

Available when Action is "Start - REST Integration".

Introduced in 1.0.0

Parameters for Rest Integration Script

Script

The UAC Script containing the Parameters for Rest Integration in JSON format.

Available when Parameters for Rest Integration as Script is checked.

Introduced in 1.0.0

Parameters for Rest Integration

Array

The list of key-value pairs passed as query parameters when invoking the REST integration.

Available when Parameters for Rest Integration as Script is unchecked.

Introduced in 1.0.0

Payload for Job Execution as Script

Checkbox

Enable specifying Payload for Job Execution through UAC Script.

Available when Action is "Start - Scheduled Integration", "Start - OIC Gateway Job", or "List - Integrations".

Introduced in 1.0.0

Payload for Job Execution Script

Script

The UAC Script containing the Payload for Job Execution in JSON format.

Available when Payload for Job Execution as Script is checked.

Introduced in 1.0.0

Payload for Job Execution

Array

The key-value pairs sent as the request body when submitting the job.

Available when Payload for Job Execution as Script is unchecked.

Introduced in 1.0.0

Wait

Checkbox

When enabled, the extension waits for the integration or job to reach a final state before completing.

Introduced in 1.0.0

Monitor Interval(s)

Integer

The number of seconds to wait between each status check when monitoring execution progress.

Available when Wait is checked.

Introduced in 1.0.0

Number of Monitor Retries

Integer

The maximum number of status checks performed before the execution is considered timed out.

Available when Wait is checked.

Introduced in 1.0.0

Activity Stream

Checkbox

When enabled, the activity stream details of the scheduled integration execution are fetched and included in the output.

Available when Action is "Start - Scheduled Integration".

Introduced in 1.0.0

STDOUT Output

Choice

Specify the information to be displayed in STDOUT.

The following options are available:

  • -- None --
  • Show Execution Status (default)
  • Show Full Response

Introduced in 1.0.0

Extension Output

Multiple Choice

Specify the information to be displayed in the EXTENSION output.

The following options are available:

  • Show Execution Status
  • Show Full Response

Introduced in 1.0.0

Output Fields​

Name

Type

Description

Version Information

OIC Run Instance ID

Text

The instance ID assigned by OIC when the OIC Gateway Job is launched.

Available when Action is "Start - OIC Gateway Job".

Introduced in 1.0.0

Environment Variables​

Environment Variables can be set from the Environment Variables task definition table. The following environment variables can affect the behavior of the extension.

Environment Variable Name

Description

Version Information

UE_HTTP_TIMEOUT

This environment variable defines the global timeout value for all HTTP requests to Oracle. It affects both connection and read timeouts, preventing requests from hanging.

Accepted values: Positive integer (in seconds).

If the environment variable is not set, the timeout will default to 300 seconds.

Introduced in 1.0.0

UE_SSL_CERT_FILE

The path to a custom CA bundle or certificate file used to verify SSL certificates for all HTTP requests to Oracle.

When set, the provided file is used instead of the default system CA bundle.

Introduced in 1.0.0

Importable Configuration Examples​

This integration provides importable configuration examples along with their dependencies, grouped as Use Cases to better describe end to end capabilities.

warning

These examples aid in allowing task authors to get more familiar with the configuration of tasks and related Use Cases. Such tasks should be imported in a Test system and should not be used directly in production.

Initial Preparation Steps​

  • STEP 1: Go to Stonebranch Integration Hub and download the "Oracle OIC", "Amazon Bedrock" and "UAC Utility: Email" integrations.
  • STEP 2: Locate and import the above integrations to the target Universal Controller. For more information refer to the How To section in this document.
  • STEP 3: Extract the Oracle OIC archive; Inside the directory named "configuration_examples" you will find a list of definition zip files. Upload them one by one in the order given below, by using the "Upload" functionality of the Universal Controller:
    • 1_variables.zip
    • 2_credentials.zip
    • 3_scripts.zip
    • 4_tasks.zip
    • 5_workflows.zip
  • STEP 4: Update the uploaded UAC Credential entities for Oracle OIC, Amazon Bedrock and Email.
  • STEP 5: Update the UAC global variables introduced with the 1_variables.zip file. Their names are prefixed with "ue_oracle_oic". Review the descriptions of the variables as they include information on how they should be populated.
tip
  • The order indicated above ensures that the dependencies of the imported entities need to be uploaded first.
  • All imported entities are prefixed with UC1: Oracle OIC.

How to "Upload" Definition Files to a Universal Controller​

The "Upload" functionality of Universal Controller allows Users to import definitions exported with the "Download" functionality.

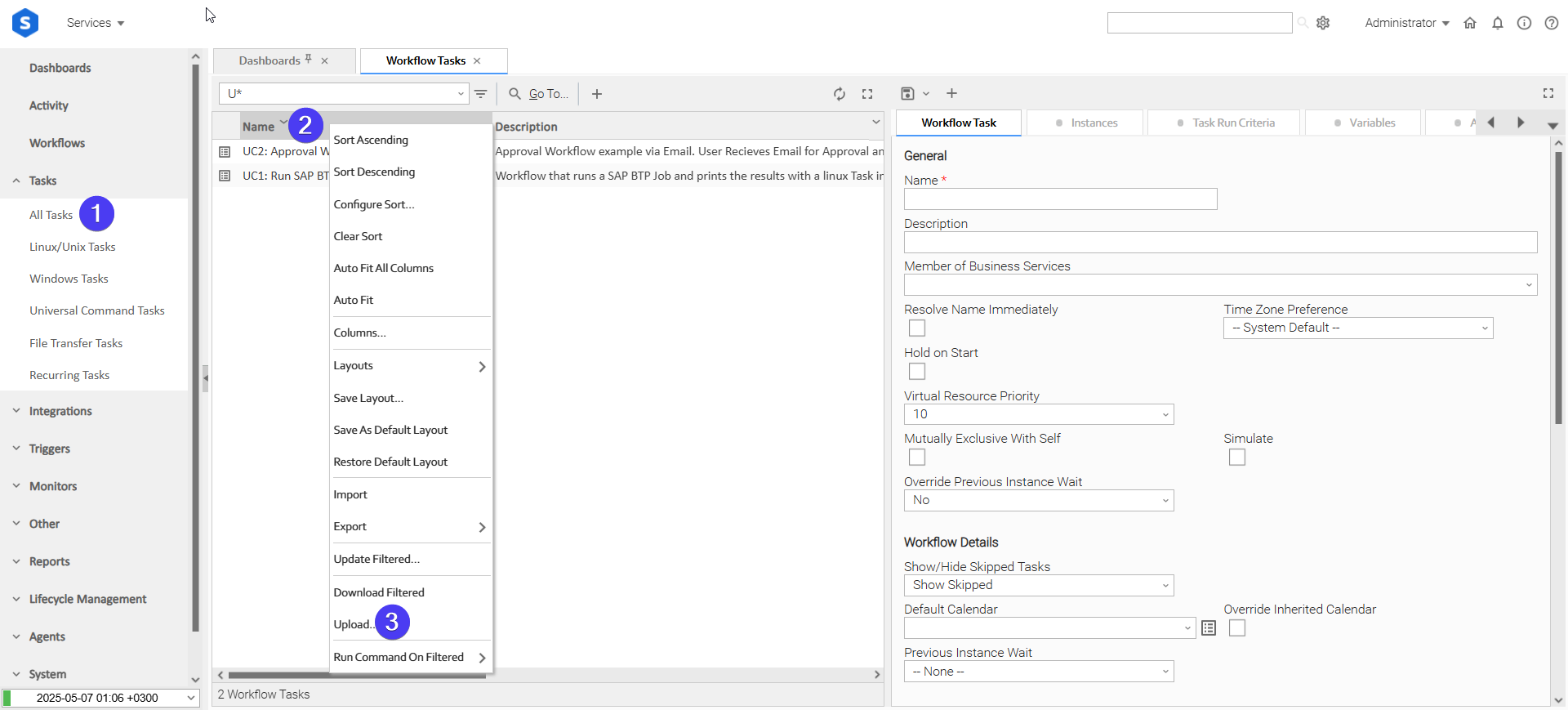

Login to Universal Controller and:

  • STEP 1: Click "Tasks"→"All Tasks"
  • STEP 2: Right click on the top of the column named "Name"
  • STEP 3: Click "Upload..."

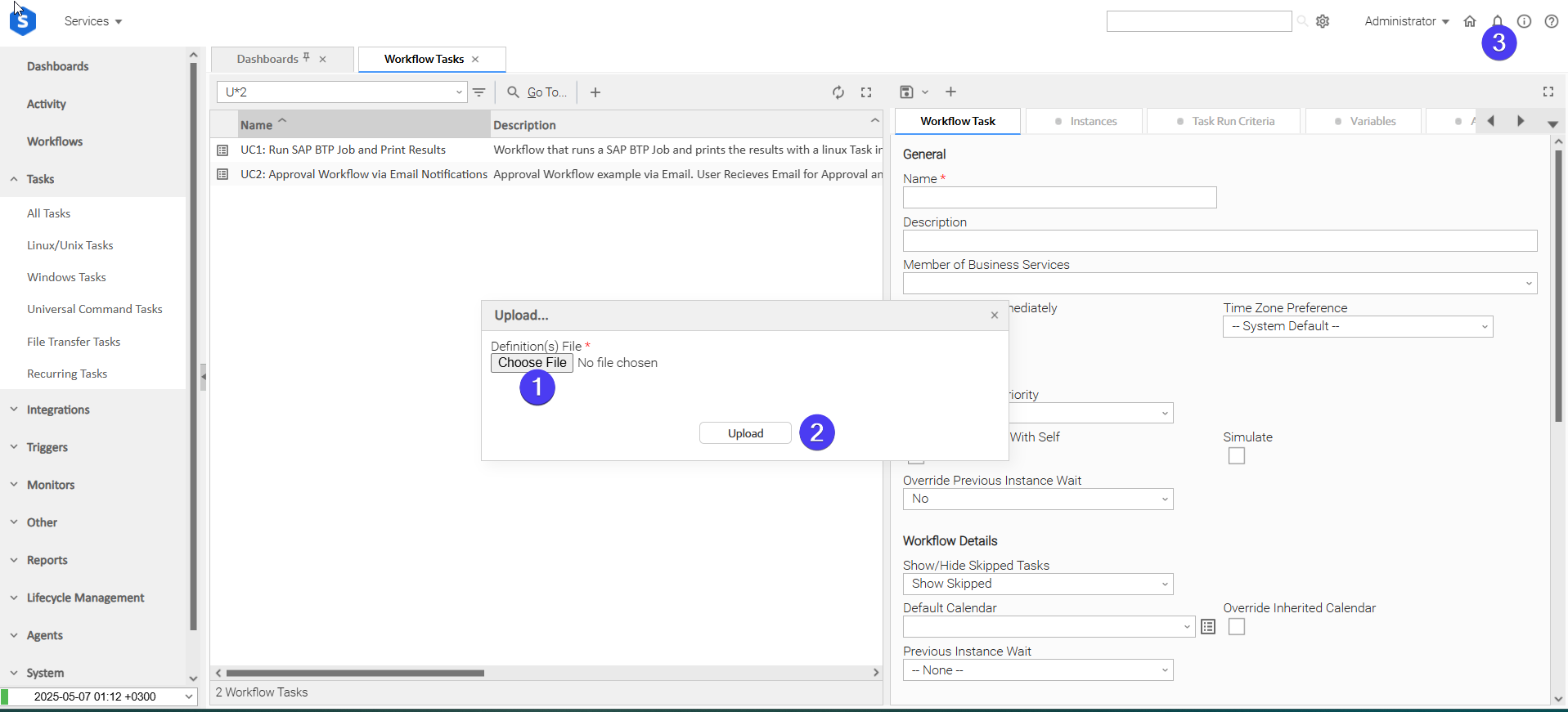

In the pop-up "Upload..." dialogue:

  • STEP 1: Click "Choose File".
  • STEP 2: Select the appropriate zip definition file and click "Upload".
  • STEP 3: Observe the Console for possible errors.

Use Case: List Integrations, Start Selected Scheduled Integration and Send Email Summary​

Description​

This workflow uses AWS Bedrock to orchestrate Oracle OIC scheduled integrations end to end. A list of activated scheduled integrations is retrieved from Oracle OIC, and Amazon Bedrock selects the first available integration to start. Once execution completes, a second Bedrock task generates a professional email notification summarising the outcome, which is automatically sent to the ops team.

The workflow demonstrates how AWS Bedrock can sit inside an Oracle OIC orchestration flow to handle both data extraction and human-readable reporting, removing the need for manual intervention or hardcoded integration selection.

The tasks configured demonstrate the following capabilities among others:

  • Retrieve and filter Oracle OIC integrations by status using the OIC Universal Extension.
  • Use AWS Bedrock to extract structured data from a JSON integration list and return a typed response via JSON Schema enforcement.
  • Pass structured outputs between tasks using extension output variable references.
  • Start a scheduled Oracle OIC integration programmatically and monitor its execution until completion.
  • Use AWS Bedrock to transform raw OIC execution output into a professional plain-text email subject and body.
  • Deliver AI-generated notifications to an ops team via the Email Universal Extension.

The components of the solution are described below:

  1. List Integrations — Retrieves all activated scheduled integrations from Oracle OIC based on a customer-defined filter and passes the list to Bedrock.
  2. Bedrock Pick Integration — Receives the integration list and extracts the integration ID and version of the first item to pass to the scheduled integration task.
  3. Start Scheduled Integration — Starts the integration selected by Bedrock using its ID and version and waits until execution completes.
  4. Bedrock Write Email — Receives the execution result from OIC and generates a professional email subject and body summarising what ran and the outcome.
  5. Send Email — Sends the AI-generated subject and body to the ops team as a plain text email.

How to Run​

Execution Steps:

  • STEP 1: Ensure the Oracle OIC and Amazon Bedrock Universal Extensions are imported into your Universal Controller.
  • STEP 2: Update the OIC credentials with your OAuth Client ID and Secret and set the correct OIC Base URL and Token URL.
  • STEP 3: Update the AWS credentials with your Access Key ID and Secret Access Key and set the correct AWS Region.
  • STEP 4: Update the Integration Filter field in the List Integrations task to match the naming convention used in your OIC instance.
  • STEP 5: Update the Email task with your SMTP server details, From address, and To address.
  • STEP 6: Launch the workflow. This automatically starts the flow of tasks.

Expected Results​

  • Task List Integrations successfully retrieves all activated integrations matching the configured filter from Oracle OIC and returns them as a structured JSON list.
  • Task Bedrock Pick Integration successfully extracts the integration ID and version from the first item in the list and returns them as a typed JSON object.
  • Task Start Scheduled Integration successfully starts the selected integration and monitors it until it reaches a terminal state of SUCCEEDED, FAILED, ERRORED, ABORTED, or COMPLETED.
  • Task Bedrock Write Email successfully generates a concise professional email subject and plain-text body based on the OIC execution result.
  • Task Send Email successfully delivers the AI-generated notification to the ops team.

Exit Codes​

Exit Code

Status

Description

0

Success

Successful Execution.

1

Failure

Generic Error. Raised when not falling into the other Error Codes.

11

Failure

Exception raised when the OIC Job Launch fails.

12

Failure

Exception occurred while the OIC Job Launch Request.

20

Failure

Input fields validation error.

40

Failure

The Job is executed out of the normal duration boundaries.

100

Warning

The OIC Gateway Job completed with a Warning status. Available when Action is "Start - OIC Gateway Job".

101

Failure

The OIC Gateway Job completed with an Error status. Available when Action is "Start - OIC Gateway Job".

How To​

Import Universal Template​

To use the Universal Template, you first must perform the following steps

info

For large Universal Templates, some parameters need to be adjusted, particularly for MySQL, Universal Controller and Universal Agent: (tomcat/conf/uc.properties)

MySQL (my.cnf)

max_allowed_packet: Defines the maximum size of a single network packet that can be read or written by the server and clients.

Recommended setting: Ensure it is configured to a value at least 25% greater than the size of your largest imported integration

innodb_log_file_size: Determines the size of InnoDB redo log files. While this parameter has been simplified in recent MySQL versions, it's still relevant for MySQL versions prior to 8.0.30

Purpose: Prevents "BLOB/TEXT data inserted in one transaction is greater than 10% of redo log size" errors that might appear on Universal Controller logs

Recommended setting: Ensure 10% of the log file size exceeds your largest imported integration

Universal Agent Configuration (config/omss.conf):

max_msg_size: Specifies the maximum allowable size for messages. Messages exceeding the limit will not be accepted by the server.

Recommended setting: Ensure the configured value is 10% greater than your largest imported integration

Universal Controller Configuration

Universal Controller configuration can restrict import of an integration if the extension maximum bytes is not properly set. This can be configured in the following ways:

Universal Controller configuration file (tomcat/conf/uc.properties): uc.universal_template.extension.maximum_bytes

Universal Controller UI Admin Panel: Administration → Properties → Universal Template Extension Maximum Bytes

Recommended setting: Ensure the configured value is greater than the size of your largest imported integration

The deployment of an integration from Universal Controller to Universal Agents, can also be restricted by the JVM heap size of the Tomcat serving the Universal Controller. Ensure to configure the JVM heap size adequately. Things to consider.

# of agents configured to accept the extension(s).

# of agents configured to deploy on-registration and how many would be registering simultaneously.

# of parallel, on-demand deployments, where deployment happens the first time the extension needs to execute on a specific agent.

  1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
  2. Import the Universal Template into your Controller:
    1. Extract the zip file, you downloaded from the Integration Hub.
    2. In the Controller UI, select Services > Import Integration Template option.
    3. Browse to the "export" folder under the extracted files for the ZIP file (Name of the file will be unv_tmplt_*.zip) and click Import.
    4. When the file is imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task​

  • Create a new Universal Task and enter the required input fields as defined in the Universal Template.
  • Before creating the task, ensure any required external accounts, access tokens, or service credentials are available.
  • Create the required Resolvable Credentials to be used as input fields in the Universal Task configuration.
  • If additional resources are needed (such as configuration scripts, data files, or prerequisite tasks), set these up before configuring the Universal Task.

Integration Modifications​

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

  • Python code modifications should not be done.
  • Template Modifications
    • General Section
      • "Name", "Extension", "Variable Prefix", and "Icon" should not be changed.
    • Universal Template Details Section
      • "Template Type", "Agent Type", "Send Extension Variables", and "Always Cancel on Force Finish" should not be changed.
    • Result Processing Defaults Section
      • Success and Failure Exit codes should not be changed.
      • Success and Failure Output processing should not be changed.
    • Fields Restriction Section
      The setup of the template does not impose any restrictions. However, concerning the "Exit Code Processing Fields" section.
      1. Success/Failure exit codes need to be respected.
      2. In principle, as STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining the success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Document References​

This document references the following links:

Document Link

Description

Oracle Integration Cloud Documentation

Main OIC 3 documentation hub.

OIC REST API Reference

Full REST API reference for OIC.

OAuth 2.0 with OIC

OAuth 2.0 authorization types supported in OIC 3.

Oracle OIC Scheduled Integration

Creating and scheduling integrations in OIC 3.

Oracle OIC REST Integration Flows

REST Adapter capabilities for triggering and invoking REST APIs in OIC.

Oracle OIC API Gateway

Setting up and connecting OIC API Gateway with Oracle Integration.

Changelog​

ue-oracle-oic-1.0.0 (2026-06-23)​

Initial Version
