SAP iFlow

Disclaimer​

Your use of this download is governed by Stonebranch's Terms of Use.

Version Information​

Template Name

Extension Name

Version

Status

SAP iFlow

ue-sap-iflows

1 (Current 1.0.0)

Initial version.

Refer to Changelog for version history information.

Overview​

SAP Integration Suite (formerly SAP Cloud Platform Integration) enables organizations to design, deploy, and monitor integration flows (iFlows) that connect cloud and on-premise systems. iFlows define the end-to-end integration logic, including message routing, transformation, enrichment, and connectivity between applications, APIs, and business partners. SAP iFlows can be deployed and executed within specific runtime environments, providing centralized monitoring, message tracking, error handling, and operational visibility to ensure reliable data exchange across enterprise landscapes.

This integration can trigger and monitor SAP iFlows by making authenticated API requests to the SAP Integration Suite management and runtime endpoints. This enables automated deployment, execution, status tracking, and error handling of integration flows based on your orchestration requirements. By incorporating SAP iFlows into your automation workflows, UAC ensures seamless coordination of enterprise integrations alongside other business processes, delivering end-to-end visibility, control, and reliability across your hybrid IT environment.

Key Features​

Feature

Description

iFlow Triggering

Trigger an SAP iFlow with the capability to monitor the execution until the iFlow finishes.

Requirements​

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Area

Details

Python Version

Requires Python 3.11, Tested with Agent bundled python distribution.

Universal Agent Compatibility

  • Compatible with Universal Agent for Windows x64 and version >= 7.6.0.0.
  • Compatible with Universal Agent for Linux and version >= 7.6.0.0.

Universal Controller Compatibility

Universal Controller Version >= 7.6.0.0.

Network and Connectivity

Connectivity to SAP OData and Runtime APIs is required.

Supported Actions​

Action: Trigger iFlow (GET|POST|PUT|PATCH|DELETE)​

The Trigger iFlow action allows you to start an SAP iFlow and optionally monitor its execution until it reaches a final state. You can pass input parameters at runtime to control and customize the iFlow execution.

This functionality is implemented as five separate actions, each corresponding to a different HTTP method. The iFlow can be triggered using the following methods:

Action

HTTP Method

Description

Trigger iFlow (GET)

GET

Trigger the iFlow using an HTTP GET request.

Trigger iFlow (POST)

POST

Trigger the iFlow using an HTTP POST request.

Trigger iFlow (PUT)

PUT

Trigger the iFlow using an HTTP PUT request.

Trigger iFlow (PATCH)

PATCH

Trigger the iFlow using an HTTP PATCH request.

Trigger iFlow (DELETE)

DELETE

Trigger the iFlow using an HTTP DELETE request.

Action Output​

The extension output provides the following information:

  • exit_code, status_description: General info regarding the task execution. For more information users can refer to the exit code table.
  • invocation.fields: The task configuration used for this task execution.
  • result.basic_info: Shows basic information about the iFlow.
    • result.basic_info.status
    • result.basic_info.message_guid
    • result.basic_info.correlation_id
    • result.basic_info.log_start
      • Refers to the log_start of the last retrieved iFlow monitor message, not the iFlow start.
    • result.basic_info.log_end
      • Refers to the log_end of the last retrieved iFlow monitor message, not the iFlow end.
  • result.response_body: Shows the body of the response to the original trigger request.
    • This field, is included only if the Wait For Success Or Failure field is checked, otherwise it is omitted.
    • If the original trigger request times out, this field will have value None.
  • result.errors: List of errors that might have occurred during execution. That does not include iFlow run internal errors.

Examples:

Success: iFlow Trigger (GET) without Monitoring
{
    "exit_code": 0,
    "status_description": "iFlow completed successfully",
    "invocation": {
        "extension": "ue-sap-iflows",
        "version": "1.0.0",
        "fields": {
            "action": "Trigger iFlow (GET)",
            "iflow_id": "short-iflow",
            "tenant_api_url": "https://ff386262trial.it-cpitrial06.cfapps.us10-001.hana.ondemand.com/api/v1/MessageProcessingLogs",
            "authentication_method": "OAuth2 Authentication",
            "access_token_url": "https://abc1234trial.authentication.us10.hana.ondemand.com/oauth/token",
            "sap_credential": {
                "user": "sb-abc1234-5678-91011-ab16-12345abcdef!ab12345|it-rt-abc1234trial!b55215",
                "password": "****",
                "token": "****",
                "key_location": null,
                "passphrase": "****"
            },
            "sap_api_credential": {
                "user": "sb-abc1234-5678-42fb-ab16-12340ec70aa6!abc1234|it!b55215",
                "password": "****",
                "token": "****",
                "key_location": null,
                "passphrase": "****"
            },
            "use_csrf_protection": false,
            "mime_type_choice": null,
            "mime_type_other": null,
            "payload": null,
            "wait": false,
            "polling_interval": 0,
            "max_polls": 0,
            "http_timeout": 10
        }
    },
    "result": {
        "basic_info": {
            "status": "COMPLETED",
            "message_guid": "AGmgQoX-FngZPGKXv1fnB4zbYPhg",
            "correlation_id": "AGmgQoVFGnnXjtWMhmkO9eWct0Hp",
            "log_start": "2026-02-26 14:54:29.260000",
            "log_end": "2026-02-26 14:54:29.266000"
        },
        "response_body": "Method: GET"
    }
}
Fail: Invalid Task Configuration
{
    "exit_code": 45,
    "status_description": "Service Endpoint Not Found: iFlow may not be deployed.",
    "invocation": {
        "extension": "ue-sap-iflows",
        "version": "1.0.0",
        "fields": {
            ...
        }
    },
    "result": {
        "errors": [
            "Service Endpoint Not Found: iFlow may not be deployed."
        ]
    }
}

Configuration Examples​

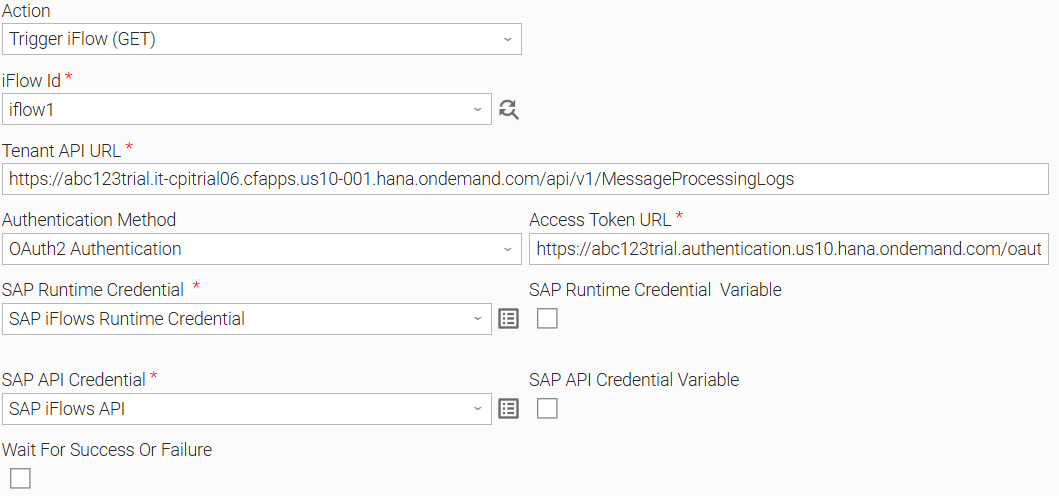

Example: Trigger an iFlow​

The SAP Trigger & Monitor Integration Suite iFlow Jobs task triggers an SAP iFlow with the ID "iflow1" with no monitoring. The task will end when it triggers the iFlow, and the task will not wait for it to finish. If the iFlow is triggered successfully, the task instance completes with success, else with failure.

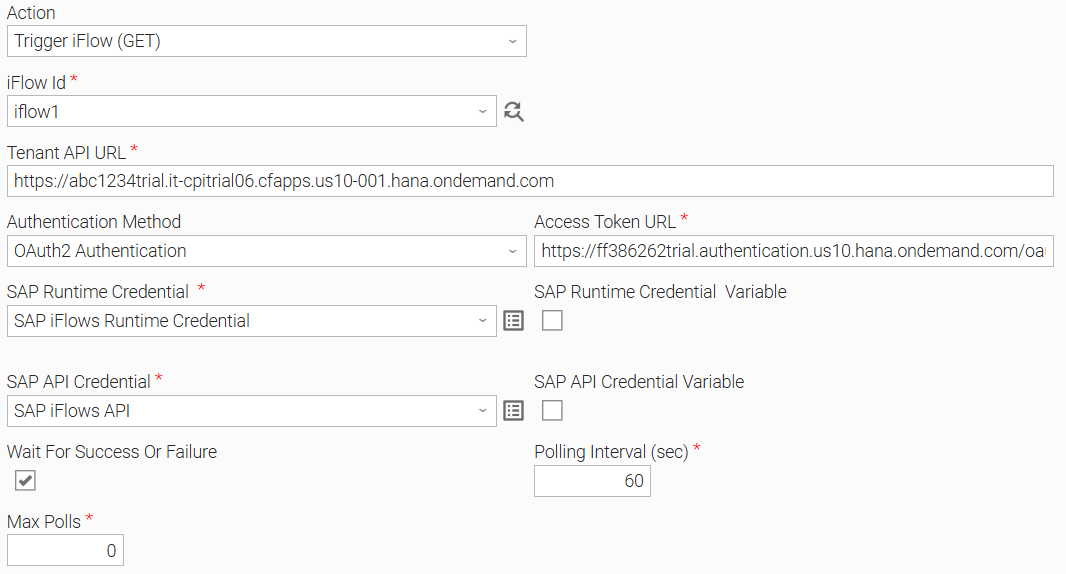

Example: Trigger and Monitor an iFlow​

The SAP Trigger & Monitor Integration Suite iFlow task will trigger an iFlow with the ID "iflow1" with monitoring. The task will remain running until the iFlow run reaches a terminal state.

The task will check if the iFlow run has reached a terminal state on each poll interval. Once the task reaches a terminal state, the task will end with success or failure, depending on the terminal state of the iFlow run.


Input Fields​

Name

Type

Description

Version Information

Action

Choice

The action performed upon the task execution. Options:

  • Trigger iFlow (GET)
  • Trigger iFlow (POST)
  • Trigger iFlow (PUT)
  • Trigger iFlow (PATCH)
  • Trigger iFlow (DELETE)

Introduced in 1.0.0

iFlow Id

Dynamic Choice

Dynamic Choice field for retrieval and selection of the iFlow to be executed.

Introduced in 1.0.0

Tenant API URL

Text

The Tenant API URL exposed by SAP Integration Suite (e.g., https://abc123.hana.ondemand.com)

Introduced in 1.0.0

Authentication Method

Choice

The authentication method to use to authenticate with SAP. The following options are available.

  • OAuth2 Authentication

Introduced in 1.0.0

Access Token URL

Text

The endpoint of the Authentication Server for the retrieval of an access token. It is used to exchange the SAP API Credential and SAP Runtime Credential for an access token.

Required when Authorization Type is "OAuth2 Authentication".

Introduced in 1.0.0

SAP API Credential

Credentials

Credentials used for monitoring the iFlow. The Credential definition should be as follows:

  • SAP Process Integration Runtime Service Key clientid as username
  • SAP Process Integration Runtime Service Key clientsecret as password

Required when Authorization Type is "OAuth2 Authentication".

Introduced in 1.0.0

SAP Runtime Credential

Credentials

Credentials used for triggering the iFlow. The Credential definition should be as follows:

  • SAP Process Integration API Service Key clientid as username
  • SAP Process Integration API Service Key clientsecret as password

Required when Authorization Type is "OAuth2 Authentication".

Introduced in 1.0.0

Use CSRF Protection

Checkbox

When checked, a CSRF Token will be fetched before executing an iFlow trigger with a modifying request. Enable this option if the iFlow is configured to use Cross-Site Request Forgery (CSRF) protection.

This field is shown only for the following Actions.

  • Trigger iFlow (POST)
  • Trigger iFlow (PUT)
  • Trigger iFlow (PATCH)
  • Trigger iFlow (DELETE)

Introduced in 1.0.0

MIME Type

Choice

The MIME type to be used in the request's header.

The following options are available.

  • application/javascript
  • application/json (default value)
  • application/xml
  • text/html
  • text/plain
  • text/xml
  • Other

This field is shown only for the following Actions.

  • Trigger iFlow (POST)
  • Trigger iFlow (PUT)
  • Trigger iFlow (PATCH)
  • Trigger iFlow (DELETE)

Introduced in 1.0.0

Other Value For MIME Type

Text

The MIME type to be included in trigger request's header in case "Other" is selected as MIME Type value.

Required when MIME Type is "Other".

Introduced in 1.0.0

Payload

Large Text

The payload to be sent in the request body.

This field is shown only for the following Actions.

  • Trigger iFlow (POST)
  • Trigger iFlow (PUT)
  • Trigger iFlow (PATCH)
  • Trigger iFlow (DELETE)

Introduced in 1.0.0

Wait For Success Or Failure

Checkbox

When checked, the Task Instance waits until the triggered iFlow reaches a final State. Otherwise, the Task Instance completes when the iFlow is simply triggered, without waiting for it to finish.

Monitoring starts only if the initial trigger request does not receive a response within the configured UE_HTTP_TIMEOUT. See Environment Variables.

If checked, the response_body field will be omitted from the extension output.

Introduced in 1.0.0

Polling Interval (sec)

Integer

This field is required when Wait For Success Or Failure is checked and represents the time interval between retries for getting the status of the iFlow run.

As a best practice, if the Task Execution expected completion duration is long, set the polling Interval to a larger value. A short value will trigger frequent checks towards the iFlow, which is inefficient in terms of resources in the case of long-duration Tasks.

The default value is 60.

Introduced in 1.0.0

Max Polls

Integer

This field is required when Wait For Success Or Failure is checked and represents the maximum number of times to check for the status of the job. Zero (0) means no limit, and the integration will keep checking the status of the job (until it reaches some terminal state) indefinitely.

Introduced in 1.0.0

Environment Variables​

Environment Variables can be set from the Environment Variables task definition table. The following environment variables can affect the behavior of the extension.

info

If Wait for Success or Failure is checked, the iFlow monitoring starts only if the initial trigger request does not receive a response within the UE_HTTP_TIMEOUT.

Environment Variable

Description

Version Information

UE_HTTP_TIMEOUT

Specifies the timeout (in seconds) for HTTP requests made by the Task Instance. A higher value allows for slower responses, while a lower value enforces stricter time constraints.

If not set, a default of 60 seconds is used.

Introduced in 1.0.0.

Cancelation and Rerun​

  • In case of cancellation of a Task Instance, the iFlow remains intact on SAP Integration Suite.
  • Re-run of a failed iFlow is currently not supported.

Exit Codes​

Exit Code

Status

Status Description

Meaning

0

Success

If Wait For Success Or Failure input field is checked,

  • "iFlow finished successfully"

If Wait For Success Or Failure input field is not checked,

  • "iFlow started successfully"

Successful Execution.

If Wait For Success Or Failure input field is checked,

  • It means that the iFlow ended up in a Success State.

If Wait for Success or Failure input field is not checked,

  • It means that the iFlow has been successfully triggered.

1

Failure

"Execution Failed: <<Error Description>>"

Failed Execution.

  • This error code also acts as a generic error code. Raised when an error does not fall into the other error scenarios.

2

Failure

"Authentication Error: <<Error Description>>"

Bad Credentials.

3

Failure

"Authorization Error: <<Error Description>>"

Bad Credentials. Possibly misconfigured Use CSRF Protection field.

20

Failure

"Data Validation Error: <<Error Description>>"

Input fields validation error.

21

Failure

"iFlow Failed"

  • If Wait For Success Or Failure input field is checked, it means that the Flow Run ended up in a Failed State.

40

Failure

"Monitor Timeout Error: <<Error Description>>"

Maximum number of polls has been reached

STDOUT and STDERR​

STDOUT is used for displaying Job information and its controlled by STDOUT Options (only when Wait For Success Or Failure is checked).

STDERR provides additional information to the user, the verbosity of which is controlled by Log Level Task Definition field.

info

Backwards compatibility is not guaranteed for the content of STDOUT/STDERR and can be changed in future versions without notice

How To​

Import the Universal Template into your Controller:

  1. Extract the zip file, you downloaded from the Integration Hub.
  2. In the Controller UI, select Services > Import Integration Template option.
  3. Browse to the "export" folder under the extracted files for the ZIP file (Name of the file will be unv_tmplt_*.zip) and click Import.
  4. When the file is imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task​

For a new Universal Task, create a new task, and enter the required input fields.

Integration Modifications​

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

  • Python code modifications should not be done.
  • Template Modifications
    • General Section
      • "Name", "Extension", "Variable Prefix", and "Icon" should not be changed.
    • Universal Template Details Section
      • "Template Type", "Agent Type", "Send Extension Variables", and "Always Cancel on Force Finish" should not be changed.
    • Result Processing Defaults Section
      • Success and Failure Exit codes should not be changed.
      • Success and Failure Output processing should not be changed.
    • Fields Restriction Section
      The setup of the template does not impose any restrictions. However, concerning the "Exit Code Processing Fields" section.
      1. Success/Failure exit codes need to be respected.
      2. In principle, as STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining the success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Document References​

This document references the following documents:

Document Link

Description

Universal Templates

User documentation for creating, working with and understanding Universal Templates and Integrations.

Universal Tasks

User documentation for creating Universal Tasks in the Universal Controller user interface.

SAP Integration Suite Guide: Build an HTTPS iFlow

SAP guide which explores how to setup a trial account and build an HTTPS based integration flow

Changelog​

ue-sap-iflows-1.0.0 (2026-03-05)​

Initial Version
