SAP Kyma Jobs

Disclaimer​

Your use of this download is governed by Stonebranch's Terms of Use.

Version Information​

Template Name

Extension Name

Version

Status

SAP Kyma Jobs

ue-sap-kyma-jobs

1 (Current 1.0.0)

Initial version.

Refer to Changelog for version history information.

Overview​

SAP Kyma provides a managed Kubernetes-based environment for building and operating cloud-native applications and extensions. It abstracts much of the underlying platform complexity, allowing teams to focus on application development rather than cluster management. Kyma is well suited for workloads that demand resilience, elastic scaling, and portability, particularly for extending SAP solutions in a loosely coupled manner. It enables event-driven integrations, supports open-source technologies, and fits naturally into existing CI/CD and DevOps practices across cloud providers.

This integration provides the capability to trigger, control, and manage Kubernetes Jobs and CronJobs on a specified Kyma cluster.

Key Features​

Feature

Description

Deploy Resources

Deploy Job and CronJob resources, either declaratively or imperatively, from local YAML or JSON files, remote URLs, or UAC scripts.

Create Jobs from CronJobs

Create one-off Job resources based on existing CronJob definitions in the cluster.

Delete Resources

Delete Job and CronJob and resources via the delete action or manually through a Dynamic Command. Job resources can also be set to be deleted automatically after completion.

Pod Information Streaming

Live stream real-time updates about Kubernetes pods as they are created, modified, or terminated.

Automatic or Manual Container Information Retrieval

Option to automatically or manually retrieve information, including logs, for all containers pertaining to a specific job.

Requirements​

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Area

Details

Python Version

Requires Python 3.11, tested with Python 3.11.8.

Universal Agent Compatibility

  • Compatible with Universal Agent for Windows x64 and version >= 7.6.0.0.
  • Compatible with Universal Agent for Linux and version >= 7.6.0.0.

Universal Controller Compatibility

Universal Controller Version >= 7.6.0.0.

Network and Connectivity

Network Connectivity towards the cluster on SAP Kyma is required.

Southbound System

Tested with a SAP Kyma cluster that has Kubernetes 1.35.5 installed. It should be compatible on later versions as long as backwards compatibility is guaranteed on the API level.

Supported Actions​

There are six Top-Level actions controlled by the Action Field:

  • Apply a Job definition directly to the cluster
  • Apply a CronJob to schedule recurring tasks
  • Create a new Job using a provided specification
  • Create a one-time Job from an existing CronJob definition
  • Create a new CronJob for scheduled task execution
  • Delete a Job or CronJob

Additional options and post-action capabilities vary depending on the chosen Action.

Action Output​

  • exit_code, status, status_description: General info regarding the task execution. In case of failure, it's set according to the specific error that happened during the execution. A list of possible values is provided in the exit codes table in this document.
  • invocation.fields: The task configuration used for this task execution.
  • result.containers: Information gathered related to the containers spawned by the deployed job. Information is retrieved from the Kyma cluster using the values appointed to the Output Only fields during execution. Only available if the corresponding Extension Output option has been selected.
  • result.resource_specification: Information relating to the specification of the deployed resource. Only available if the corresponding Extension Output option has been selected.

Examples:

Successful Execution of "Apply Job" Action, with all Extension Output options and Wait for Success or Failure selected
{
  "exit_code": 0,
  "status_description": "Job applied successfully.",
  "invocation": {
    "extension": "ue-sap-kyma-jobs",
    "version": "1.0.0",
    "fields": {
      "action": "Apply Job",
      "authentication_method": "Service Account Secret",
      "resource_type": null,
      "api_server": "https://api.c-abc123.kyma.ondemand.com",
      "service_account_secret_cred": {
        "user": "kyma",
        "password": "****",
        "token": "****",
        "key_location": null,
        "passphrase": "****"
      },
      "verify_ssl": true,
      "namespace": "ue-sap-kyma-jobs",
      "cronjob_to_use": null,
      "new_job_name": null,
      "resource_name": null,
      "resource_definition_type": "Local File",
      "resource_script": null,
      "resource_link": null,
      "resource_path": "/home/kyma/job_resource_definition.json",
      "wait_for_success_or_failure": false,
      "timeout_seconds": 0,
      "extension_output_options": [
        "Include Resource Specification and Metadata",
        "Include Container Information"
      ],
      "stdout_options": null,
      "delete_job_options": null,
      "retr_clogs_only_on_failure": false,
      "resource_name_output": null,
      "resource_namespace_output": null,
      "job_status_output": null,
      "last_update_on": null
    }
  },
  "result": {
    "resource_specification": {
      "name": "pi-simple-deploy-lin-agentpython",
      "namespace": "ue-sap-kyma-jobs",
      "active_deadline_seconds": 1800,
      "backoff_limit": 6,
      "completions": 1,
      "parallelism": 1,
      "pod_failure_policy": null,
      "pod_replacement_policy": "TerminatingOrFailed",
      "success_policy": null,
      "ttl_seconds_after_finished": 3600,
      "suspend": false
    }
  }
}
Failed Execution
{
  "exit_code": 21,
  "status_description": "Resource Naming Error: A job with the name pi-simple-deploy-lin-agentpython already exists in the namespace ue-sap-kyma-jobs",
  "invocation": {
    "extension": "ue-sap-kyma-jobs",
    "version": "1.0.0",
    "fields": {...}
  },
  "result": {
  "errors": [
    "Resource Naming Error: A job with the name pi-simple-deploy-lin-agentpython already exists in the namespace ue-sap-kyma-jobs"
    ]
  }
}

Configuration Examples​

tip

The configuration for tasks to Create a Resource on the cluster remains unchanged compared to the configuration to Apply a Resource. Only a different action is selected from the available fields.

Create and Apply a Job on the Kyma Cluster​

This configuration creates a Job definition. The Job definition is retrieved from a defined script on the Controller. After the Job is created, the task waits for it to complete and deletes the Job from the cluster if it finishes successfully. All output options are enabled, providing additional information on STDOUT and Extension Output.

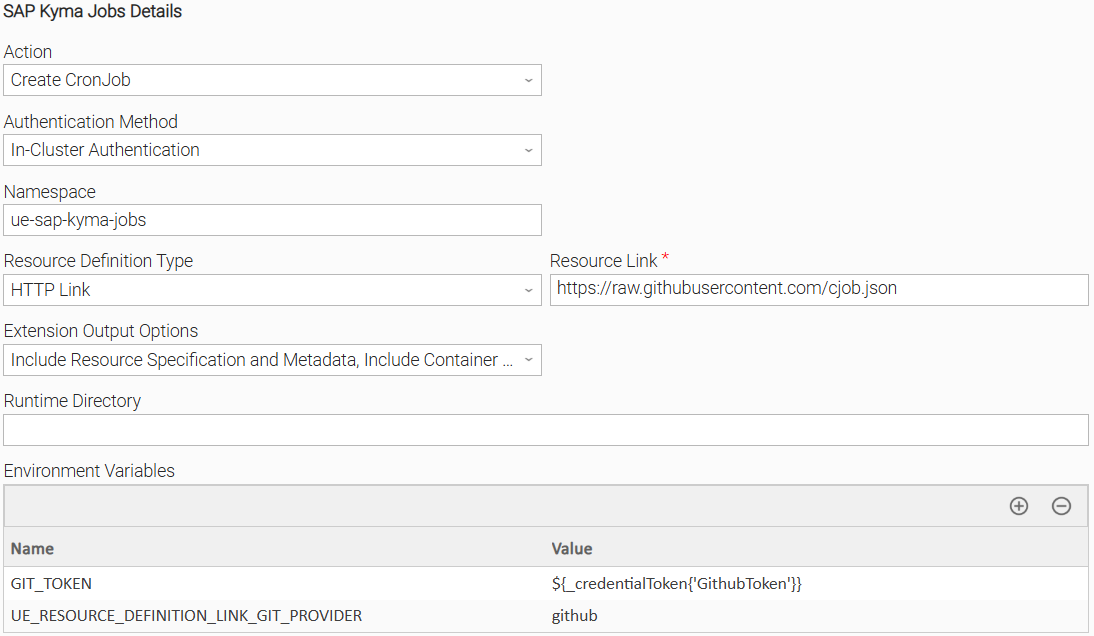

Create and Apply a CronJob on the Kyma Cluster​

This configuration applies a CronJob. The Job definition is fetched from an HTTP link, using the GIT_TOKEN and UE_RESOURCE_DEFINITION_LINK_GIT_PROVIDER environment variables for access. The resource specification for the deployed CronJob will be visible on the Extension's output. However, container information will be omitted, as no containers are tied to the deployment of the CronJob.

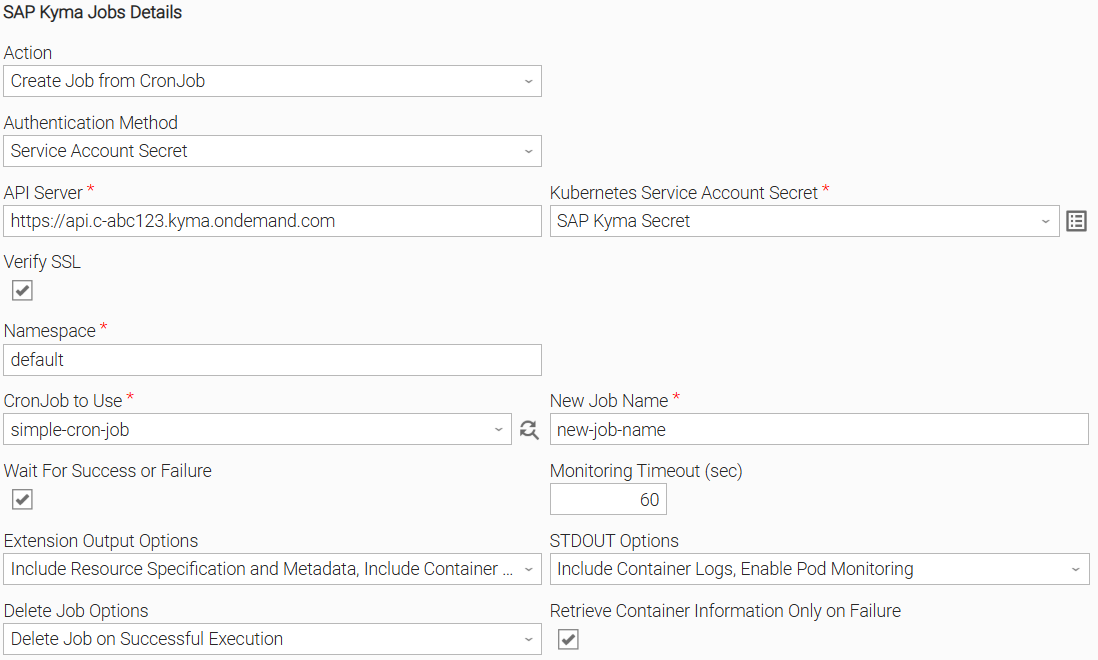

Create a Job from a CronJob on the Kyma Cluster​

This configuration creates a Job from an existing CronJob. The Job will be created based on the CronJob's specification, and its name is specified in the relevant field. The resulting Job is to be monitored, producing information on both output streams. Note that container logs are to be retrieved and displayed only in the event that the Job results in failure.

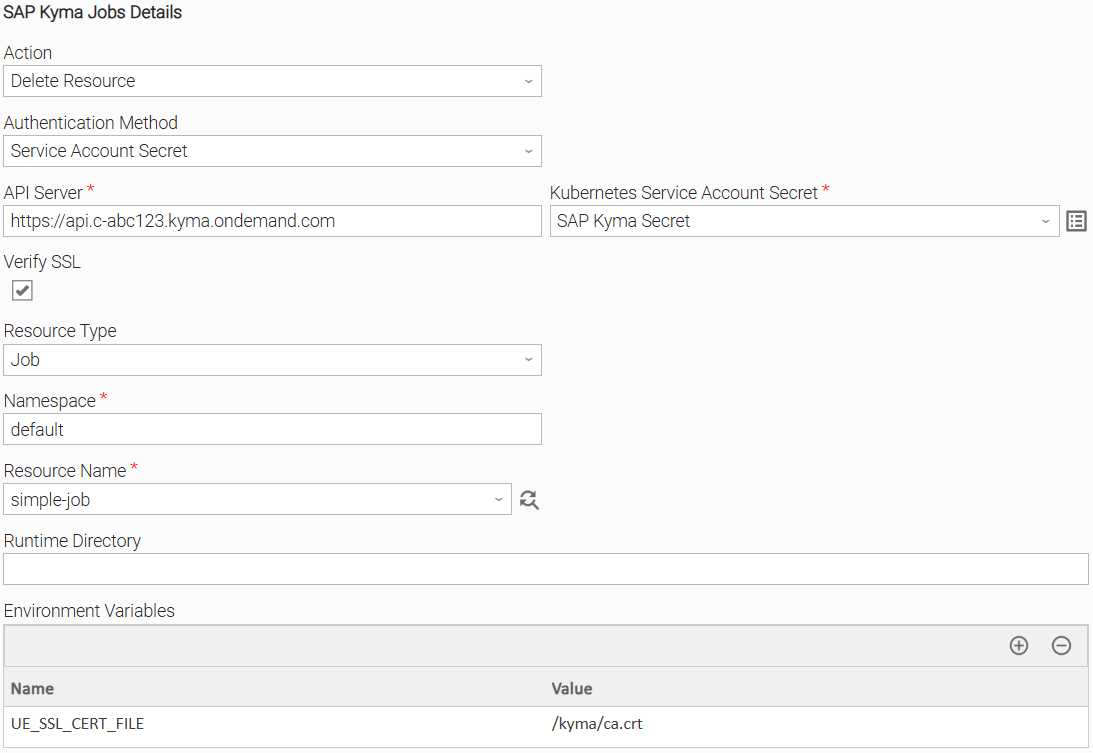

Delete a Resource from the Kyma Cluster​

This configuration deletes a Job present on the Kyma Cluster. The resource type chosen can be a Job or a CronJob, whereas the relevant Resource Name dynamic choice field can be used to load all resources of the specified type.

Input Fields​

Name

Type

Description

Version Information

Action

Choice

The action to be executed. The following options are available.

  • Apply Job
  • Apply CronJob
  • Create Job
  • Create Job from CronJob
  • Create CronJob
  • Delete Resource

Introduced in 1.0.0

Resource Type

Choice

The type of Resource to be deleted. Available options are:

  • Job
  • CronJob

Available & Mandatory if Action is set to "Delete Job"

Introduced in 1.0.0

Authentication Method

Choice

The type of authentication method to use. Available options are:

  • Service Account Secret
  • In-Cluster Authentication (Default, works only if the agent is running inside the cluster as a pod. See How To section for details.)

Introduced in 1.0.0

Kubernetes Service Account Secret

Credentials

The Credentials definition should be as follows.

  • Service Account Secret Token as "Token".
  • Any value as "Runtime User".

Available & Mandatory if Authentication Method is set to "Service Account Secret".

Introduced in 1.0.0

API Server

Text

Kubernetes API server that runs in a Kyma-managed cluster. Ensure you specify the appropriate URL for API communication. Example: https://api.c-abc123.kyma.ondemand.com

Available & Mandatory if Authentication Method is set to "Service Account Secret". The field is applicable for all the Actions.

Introduced in 1.0.0

Verify SSL

Checkbox

Enable to verify the server's SSL certificate. Disable to skip verification.

CA Bundle is specified using the UE_SSL_CERT_PATH environment variable.

Introduced in 1.0.0

Namespace

Text

The namespace in which resources are to be deployed or deleted. In the case of resource deployment, this field will be used only as a fallback in case a 'namespace' value is not specified inside of the Resource Definition.

Mandatory if Action is set to "Delete Resource" or "Create Job from CronJob"

Introduced in 1.0.0

Resource Definition Source

Choice

Specifies the source of the Job, CronJob, or Template manifest. The input must be in YAML or JSON format and must define exactly one resource.

  • UAC Script
  • Local File
  • HTTP Link

Available if Action is set to any of "Apply Job", "Apply CronJob", "Create Job", "Create CronJob", "Create Template"

Introduced in 1.0.0

Resource Definition Script

Script

The UAC Script containing the Resource definition.

Mandatory if Resource Definition Source is set to "UAC Script"

Introduced in 1.0.0

Resource Definition File Path

Text

The Agent's local full filename path to the Resource Definition.

Mandatory if Resource Definition Source is set to "Local File"

Introduced in 1.0.0

Resource Definition Link

Text

The HTTP link that points to the Job Definition or CronJob/Template Manifest. Environment variables in the URL are resolved; The GIT_TOKEN environmental variable, if set, is used as a Bearer token for authorization.

Mandatory if Resource Definition Source is set to "HTTP Link"

Introduced in 1.0.0

CronJob to Use

Dynamic Choice

The CronJob to use when creating Job from CronJob.

Available & Mandatory if action is set to "Create Job from CronJob"

Introduced in 1.0.0

New Job Name

Text

The name that the created Job should have.

Available & Mandatory if action is set to "Create Job from CronJob"

Introduced in 1.0.0

Resource Name

Dynamic Choice

The name of the Resource to be deleted.

Available & Mandatory if Action is set to "Delete Job"

Introduced in 1.0.0

Wait for Success or Failure

Checkbox

Choose where the UAC task should wait until the deployed Job is completed.

Available if Action is set to "Apply Job", "Create Job", "Create Job from CronJob"

Introduced in 1.0.0

Monitoring Timeout (sec)

Integer

The maximum number of seconds to monitor whether the job has been completed. If exceeded, a TimeoutExceededError is raised. Set to 0 to monitor indefinitely.

Only available if Wait for Success or Failure is selected.

Introduced in 1.0.0

Extension Output Options

Choice

Controls whether additional information is printed to Extension Output. Available options are:

  • Include Resource Specification and Metadata
  • Include Container Information (Only applicable if Wait for Success or Failure is selected)

Available for all Actions except "Delete Job".

Introduced in 1.0.0

STDOUT Options

Choice

Controls whether additional information is printed to Standard Output. Available options are:

  • Include Container Logs
  • Enable Pod Monitoring

Only available if Wait for Success or Failure is selected.

Introduced in 1.0.0

Delete Job Options

Choice

Specifies the conditions under which the Deployed Job should be deleted. When deploying a job from a Template or CronJob, only the job instance itself will be deleted. Available options are:

  • Do not Delete Job
  • Delete Job on Successful execution (default)
  • Delete Job regardless of execution status

Only available if Wait for Success or Failure is selected.

Introduced in 1.0.0

Retrieve Container Information Only on Failure

Checkbox

Specifies whether container information is only retrieved when Job fails. This option does nothing if "Include Container Logs" or "Include Container Information" options are not requested as part of the Standard Output or Extension Output options, respectively.

Only available if Wait for Success or Failure is selected.

Introduced in 1.0.0

Output Fields​

The following output-only fields provide better visibility during the execution of Universal Task Instances.

Field

Type

Description

Version Information

Resource Name

Text

Name of deployed Resource. Applicable for all Actions except "Delete Job".

Introduced in 1.0.0

Resource Namespace

Text

The Namespace in which the resource has been deployed on. Applicable for all Actions except "Delete Job".

Introduced in 1.0.0

Job Status

Text

The latest status of the Kyma Job.

Introduced in 1.0.0

Last Updated On

Text

The timestamp when the task instance was last updated.

Introduced in 1.0.0

Environment Variables​

Environment Variables can be set from the Environment Variables task definition table. The following environment variables can affect the behavior of the extension.

Environment Variable Name

Description

Version Information

UE_SSL_CERT_PATH

Used to specify the local path to a CA Bundle to be used for SSL Verification.

If not set, and Verify SSL has been selected, the system default CA Bundle will be used.

Introduced in 1.0.0

UE_HTTP_TIMEOUT

Specifies the timeout (in seconds) for HTTP requests made by the Task Instance. A higher value allows for slower responses, while a lower value enforces stricter time constraints. If not set, a default of 60 seconds is used. When a timeout happens, the Task Instance ends in failure.

Introduced in 1.0.0

GIT_TOKEN

If specified, this environment variable will be used as a Bearer token in the Authorization header when making the request to retrieve a Resource Definition via HTTP Link.

Introduced in 1.0.0

UE_RESOURCE_DEFINITION_LINK_GIT_PROVIDER

This environment variable is used only when GIT_TOKEN is passed and defines which Git provider to use when fetching Kubernetes job resource definitions. It ensures the correct Authorization header is generated for the selected provider.

Supported values are:

  • github
  • gitlab
  • bitbucket
  • azure_devops

If the environment variable is not set, github is used by default.

Introduced in 1.0.0

UE_JOB_FINALIZATION_POLL_INTERVAL

This environment variable defines the interval (in seconds) between successive checks for job finalization after the pods have completed. It controls the polling frequency to ensure that job completion is detected reliably without overwhelming the server or agent resources.

Accepted values: Positive integer (in seconds).

If the environment variable is not set, or is set to an invalid value, the polling interval will default to 1 second.

Introduced in 1.0.0

Cancellation and Rerun​

  • In case of cancellation, monitoring of the deployed job is halted. No additional actions are taken on the Kyma Cluster. If the deployment process has already been initiated, it will not be impacted in any way. If Extension Output Options have been specified, information that has been produced at the point of cancellation will be returned.
  • In case of rerun, the extension follows the same execution flow as the initial execution. As such, resources will be deployed or deleted, depending on the specified input fields, with no regard to the existing condition of the Kyma Cluster.

Dynamic Commands​

Command Name

Allowed Task Instance Status

Description

Delete Resource

Cancelled, Failed, Finished, Success

Deletes the deployed resource from the specified namespace. The name of the Job to delete, as well as the project it exists inside of, is inferred using the Resource Name and Resource Namespace Output Fields.

Applicable for all Actions except "Delete Job".

Retrieve Container Logs

Running, Cancelled, Failed, Finished, Success

Retrieves all container logs associated with the deployed Job that have been generated up to that point. The name of the Job to retrieve container logs for is inferred from the Resource Name and Resource Project Output Fields.

Only applicable if Action is set to "Apply Job", "Create Job", "Create Job from CronJob".

Exit Codes​

Exit Code

Status

Status Description

Meaning

0

Success

"Task executed successfully."

Successful Execution.

1

Failure

"Execution Failed: <<Error Description>>"

Generic Error. Raised in case of failure and in case no other failure exit code is applicable.

2

Failure

"Authentication Error: Account cannot be authenticated."

Bad Credentials.

20

Failure

"Data Validation Error: <<Error Description>>"

Input fields validation error.

21

Failure

"DuplicateJobNameError: Job Naming Error."

A job sharing the provided name already exists in the specified namespace. Raised only if attempting to manage resource imperatively.

40

Failure

"TimeoutExceededError: Timeout Error."

The number of seconds to monitor the job, specified by the Timeout Seconds field, has been exceeded.

STDOUT and STDERR​

STDOUT is used for displaying Job information. It is controlled by STDOUT Options field.

STDERR provides additional information to the user. The level of detail is tuned by Log Level Task Definition field.

warning

Backwards compatibility is not guaranteed for the content of STDOUT/STDERR and can be changed in future versions without notice

How To​

Import Universal Template​

To use the Universal Template, you first must perform the following steps.

  1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
  2. Import the Universal Template into your Controller:
    1. Extract the zip file, you downloaded from the Integration Hub.
    2. In the Controller UI, select Services > Import Integration Template option.
    3. Browse to the "export" folder under the extracted files for the ZIP file (Name of the file will be unv_tmplt_*.zip) and click Import.
    4. When the file is imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task​

For a new Universal Task, create a new task, and enter the required input fields.

Deploy Universal Agent on Kubernetes Cluster​

To use the In-Cluster Authentication method, the Universal Agent needs to be deployed inside the cluster as a pod.

tip

For the integration and its full feature set to function properly with the In-Cluster Authentication method, a ServiceAccount must be configured with an RBAC role that includes the following permissions:

Rules for RBAC Role
rules:
# Job management
- apiGroups: ["batch"]
resources: ["jobs", "jobs/status", "cronjobs"]
verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
# Pod monitoring (for job status)
- apiGroups: [""]
resources: ["pods", "pods/log", "pods/status"]
  1. Prepare the Universal Agent YAML (universal-agent.yml).

    1. Specify namespace. Replace the namespace field value with your namespace.

    2. Specify ServiceAccount. Replace the serviceAccountName field value with your ServiceAccount.

    3. Specify OMS Server. Replace the value of the UAGOMSSERVERS field with your OMS Server.

      info

      In order to be able to connect the agent, the OMS server needs to be accessible by the cluster.

    4. Apply the YAML to the cluster.

      kubectl apply -f universal-agent.yaml

    5. Once the pod is running, you should be able to use the agent from the Universal Controller that the OMS Server is connected to.

Integration Modifications​

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

  • Python code modifications should not be done.
  • Template Modifications
    • General Section
      • "Name", "Extension", "Variable Prefix", and "Icon" should not be changed.
    • Universal Template Details Section
      • "Template Type", "Agent Type", "Send Extension Variables", and "Always Cancel on Force Finish" should not be changed.
    • Result Processing Defaults Section
      • Success and Failure Exit codes should not be changed.
      • Success and Failure Output processing should not be changed.
    • Fields Restriction Section
      The setup of the template does not impose any restrictions. However, concerning the "Exit Code Processing Fields" section.
      1. Success/Failure exit codes need to be respected.
      2. In principle, as STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining the success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Document References​

This document references the following documents:

Document Link

Description

Universal Templates

User documentation for creating, working with and understanding Universal Templates and Integrations.

Universal Tasks

User documentation for creating Universal Tasks in the Universal Controller user interface.

SAP Kyma

SAP Kyma documentation.

Kubernetes

The Kubernetes documentation.

Changelog​

ue-sap-kyma-jobs-1.0.0 (2026-02-05)​

Initial Version
