Snowflake: Schedule, Trigger, Monitor, and Orchestrate Operations

Disclaimer​

Your use of this download is governed by Stonebranch's Terms of Use, which are available at https://www.stonebranch.com/integration-hub/Terms-and-Privacy/Terms-of-Use/

Overview​

Snowflake is a cloud-based data warehousing platform that allows users to store, manage, and analyze large amounts of data. It offers high performance, scalability, and ease of use by separating storage and compute resources.

This Universal Task allows Stonebranch users to orchestrate, schedule, trigger, and monitor the Snowflake load and unload process from different data sources (cloud storage or local VMs) directly from Universal Controller. It uses Python libraries to perform all functions listed in the following sections. Alternatively, you also can perform all these operations using the Snowflake JDBC driver, which you can add to the Universal Controller libraries, and use a SQL Task to perform any operations with Snowflake (https://docs.snowflake.com/en/user-guide/jdbc-download.html )

Users can orchestrate the Snowflake functionalities using the following features available in the Universal Task

  • UAC functionalities (Snowflake -Loading)
    • Load data from AWS S3 to Snowflake.
    • Load data from Azure Storage to Snowflake.
    • Load data from Google storage to Snowflake.
    • Load Internal stage file to Snowflake Table.
    • Copy from local server to Internal staging.
  • UAC functionalities (Snowflake - Unloading)
    • Unload Snowflake data to AWS S3.
    • Unload Snowflake data to Azure Storage.
    • Unload Snowflake data to Google Storage.
    • Unload Snowflake data to Internal stage.
    • Unload from internal stage to local server.
  • UAC functionalities (Snowflake - Execute Commands)
    • Execute a Snowflake command.

Version Information​

Template Name

Version

CS Snowflake

1.3.0

Refer to Changelog for version history information.

Key Features​

Feature

Description

Load data from AWS S3 to Snowflake

Load the S3 bucket file(s) into a Snowflake table, You may specify the file format options and copy options appropriately.

Load data from Azure Storage to Snowflake

Load the Azure container blobs into a Snowflake table, You may specify the file format options and copy options appropriately.

Load data from Google storage to Snowflake

Load the google storage bucket files into a Snowflake table, You may specify the file format options and copy options appropriately. Please note that you will need to define the storage integration in Snowflake and provide this in the Universal Task.

Load Internal stage file to Snowflake Table

Files that are available in Snowflake internal storage to be loaded into a Snowflake table using the pipe name and authentication using private public key files. The data can be loaded in Snowflake using patterns.

Copy from local server to Internal staging

Copies files from local Windows or Linux server to Snowflake internal staging area.

Unload Snowflake data to AWS S3

This feature helps to unload the data from a Snowflake table to a AWS S3 bucket, file format options and copy options can be provided appropriately.

Unload Snowflake data to Azure Storage

This feature helps to unload the data from a Snowflake table to an Azure container; file format options and copy options can be provided appropriately.

Unload Snowflake data to Google Storage

This feature helps to unload the data from a Snowflake table to a Google cloud Storage; file format options and copy options can be provided appropriately. Also, this would need an storage integration name from Snowflake.

Unload Snowflake data to Internal stage

Unloads the Snowflake table into an internal staging area in Snowflake.

Unload from internal stage to local server

This feature helps to copy the files in staging area to a local windows or a Linux server.

Execute a Snowflake command

Users can use this feature to execute snowflake commands; for example: Copy, Remove, Select, Delete, etc.

Software Requirements

This integration requires a Universal Agent and a Python runtime to execute the Universal Task against Snowflake.

Software Requirements for Universal Template and Universal Task​

Software Requirements for Universal Agent​

Either:

  • Universal Agent for Windows x64 Version 7.0 and later with Python options installed.
  • Universal Agent for Linux Version 7.0 and later with Python options installed.

Software Requirements for Universal Controller​

  • Universal Controller Version 7.0.0.0 and later.

Software Requirements for the Application to be Scheduled​

This Universal Task has been tested with the snowflake-connector-python=2.3.9 and snowflake-ingest=1.0.3.

Technical Considerations​

Import Snowflake Integration Downloadable Universal Template​

To use this downloadable Universal Template, you first must perform the following steps:

  1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
  2. To import the Universal Template into your Controller, follow the instructions here.
  3. When the files have been imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Configure Snowflake Integration Universal Task​

For the new Universal Task type, create a new task, and enter the task-specific details that were created in the Universal Template.

Field Descriptions for Snowflake Integration Universal Task​

Field

Description

Snowflake Account

Provide the Snowflake user account; for example, sr14548.eu-central-1.

Snowflake Authentication

Select from list down options either Basic or Key-pair Authentication

Encrypted Private Key

Select only if you have a encrypted private key.

Oauth Client Credentials

Enter the Client ID and Client Secret issued by Microsoft Entra ID for your OAuth app registration.

Oauth Config

Array of Microsoft Entra ID OAuth parameters with fixed field names and default placeholders, used to configure token acquisition; the field names are mandatory and must not be modified by users.

  • Tenant ID - Specifies the Microsoft Entra tenant used to build the authentication authority.
  • Resource App ID URI - Defines the target application (audience) for which the access token is requested.
  • OAuth User (optional) - Identifies the Entra ID user under which the OAuth flow is executed; if omitted, the default identity configured in the environment is used.

Snowflake Login Name

  • Specify your Snowflake login user name and password when the selected authentication is Basic
  • Specify your Snowflake login user name ,Key Location & Passphrase accordingly when the authentication is Key-pair

Snowflake Host URL

Specify your host information in the form of a URL; for example, sr14548.eu-central-1.snowflakecomputing.com.

Warehouse

Specify the warehouse name; If not specified, connects to the default warehouse for the user.

Database

Specify the database name.

Role

Name of the default role to use.

Schema

Name of the default schema to use for the database.

Select a Snowflake function

Select the required Snowflake function (if the required function not available, check the SQL task to invoke snowflake DB).

Log Level

Select a log level.

Snowflake Command

Provide a Snowflake command either in SQL or put / get commands etc.

Local file Name & Path

Provide the local file name that need to be copied to stage.

Stage Name

Provide the stage(internal) name in Snowflake.

Encrypted Private Key

Select only if you have an encrypted private key.

Stage File Name(s)

Provide the stage file names; if there are multiple files, separate by comma.

Pipe Name

Specify the fully-qualified name of the pipe to use to load the data.

Private Key File Path

Provide the private key file path to establish connection to Snowflake for data ingest.

Private Key Password

Provide the password for private if it is encrypted.

Snowflake Table Name

Provide the full path and the Snowflake table name where the table to be loaded.

Use AWS Credentials

Check this if you need to supply AWS access key credentials.

AWS Key ID & Secret Access Key

Provide the AWS secret Access Key (runtime user AWS Key id and secret key in the password section).

AWS Storage Integration

Provide the name of the AWS storage integration created in Snowflake.

Load using Pattern

If you need load the data using a pattern, check this option.

S3 Bucket URL

Provide your S3 bucket URL: s3://<your_s3_bucket>/data/.

Azure container File

Provide the Azure container file URL starting with azure://.

Azure Storage Integration

Provide the Azure storage integration created in Snowflake.

GCP storage URL

Provide the bucket name and the file name; for example, gcs://mybucket/data/files.

Azure Sas Token

Provide the Azure Sas Token.

Existing File Format Name

Specify an existing named file format to use for loading data into the table.

Storage Integration

Provide the Snowflake storage integration details.

Pattern

Regular expression pattern string - specifying the file names and/or paths to match.

File Format Name

Specifies an existing named file format to use for loading data into the table.

Format Type

Specify the format type: CSV | JSON | AVRO | ORC | PARQUET | XML.

File Format Type Options

Specify the file format type options; for example, FIELD_DELIMITER = '|' if CSV type -- Refer to https://docs.snowflake.com/en/sql-reference/sql/copy-into-table.html

Copy Options

Include other copy options; for example, ON_ERROR = CONTINUE or FORCE=TRUE- Refer to https://docs.snowflake.com/en/sql-reference/sql/copy-into-table.html

Polling Interval (Secs)

Provide the Polling Interval time in Seconds, in the case of data ingestion from internal staging to Snowflake Table.

Number of times to Poll

Specify the number of times to poll; otherwise, default is set to 50, in the case of data ingestion from internal staging to Snowflake Table.

Examples for Snowflake Integration Universal Tasks​

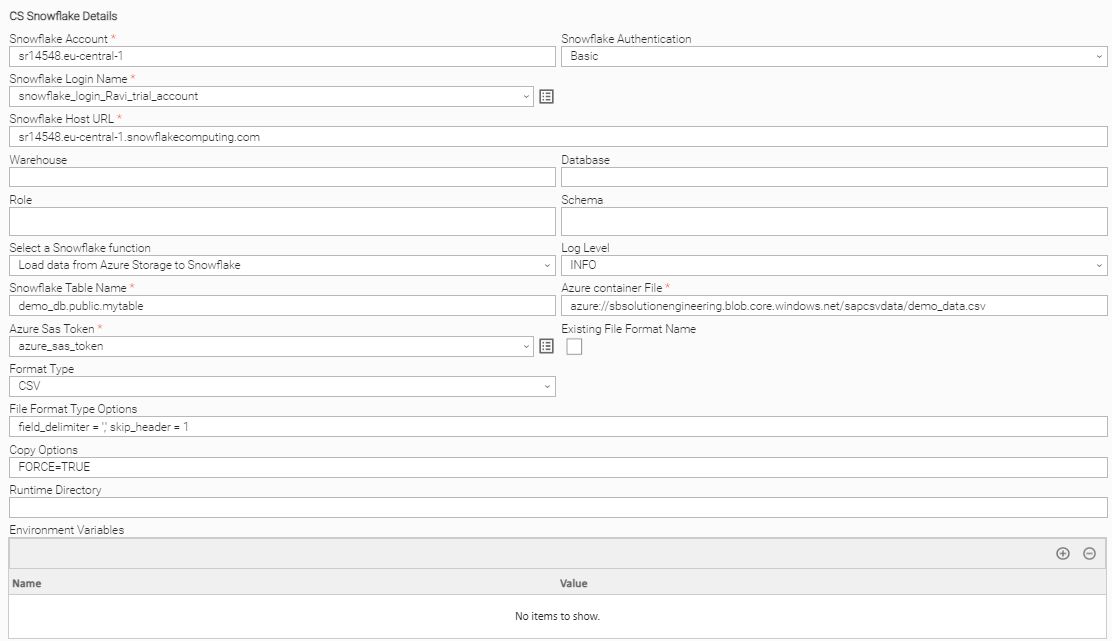

Load Data from Azure Storage to Snowflake Table​

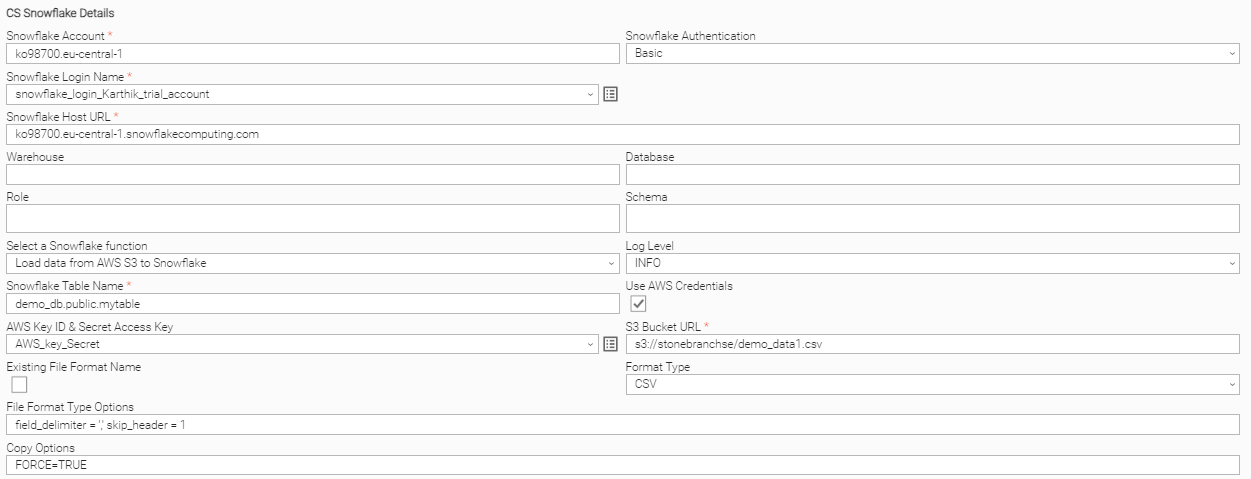

Load Data from AWS S3 to Snowflake Table​

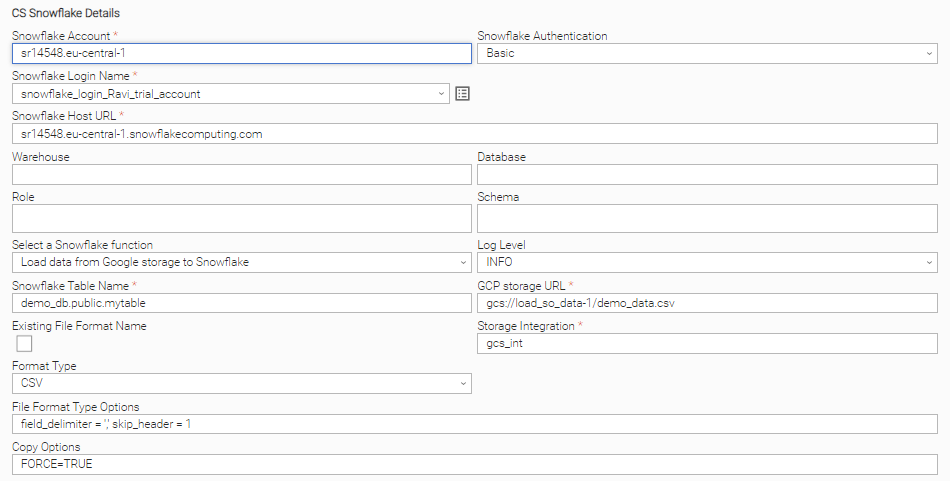

Load Data from Google Cloud Storage to Snowflake Table​

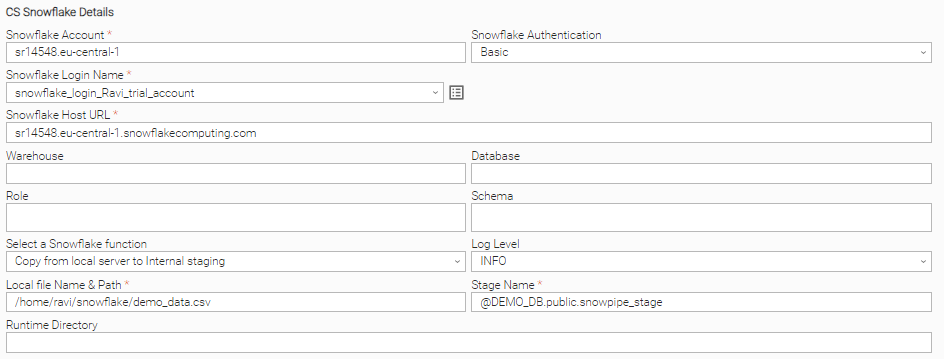

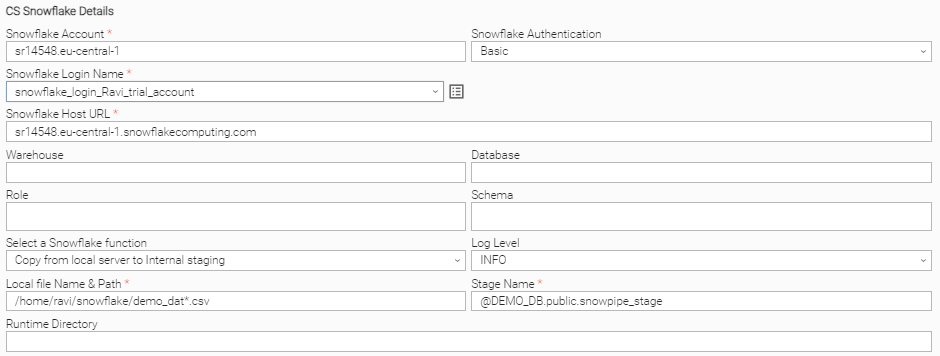

Copy Local File to Snowflake Staging​

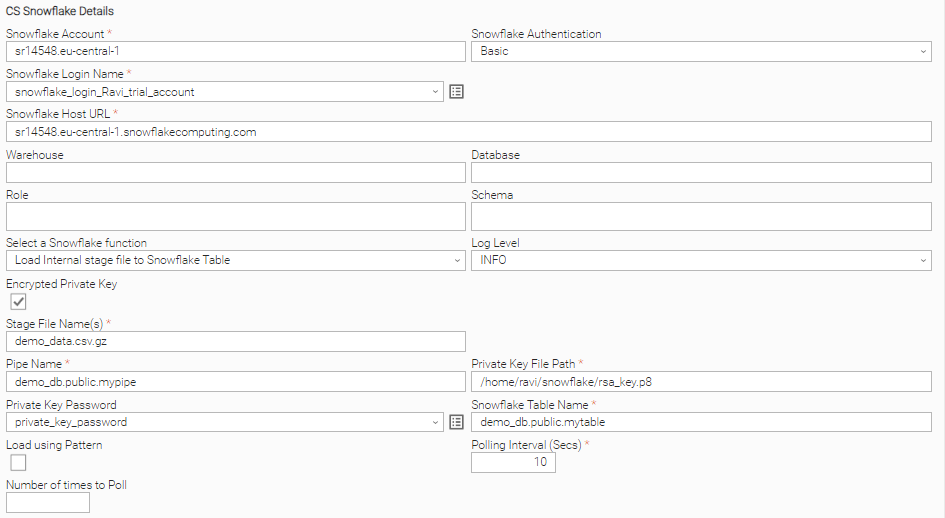

Load Snowflake Staging File to Table​

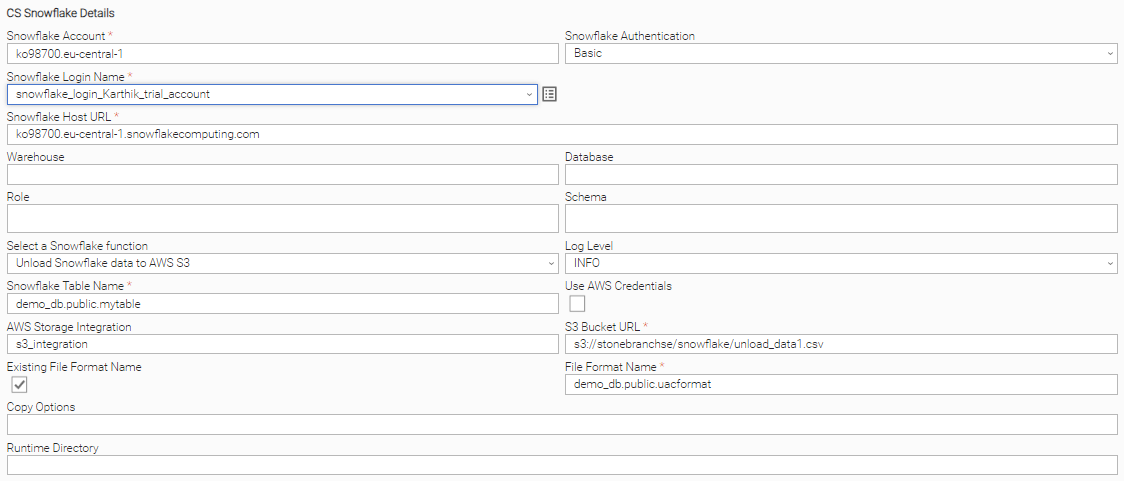

Unload Snowflake Table to AWS S3 Storage​

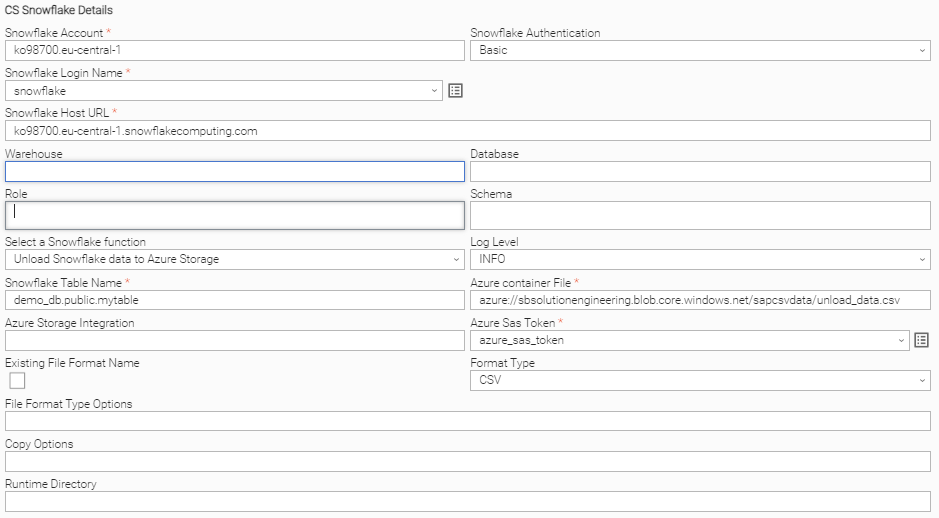

Unload Snowflake Table to Azure Storage​

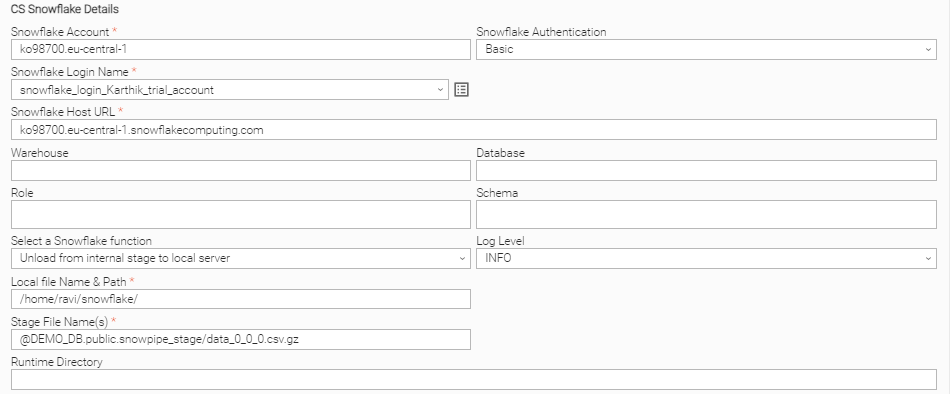

Download Snowflake Stage File to Local Linux Server​

Copy Multiple Files (Linux Server) to Snowflake Staging Area​

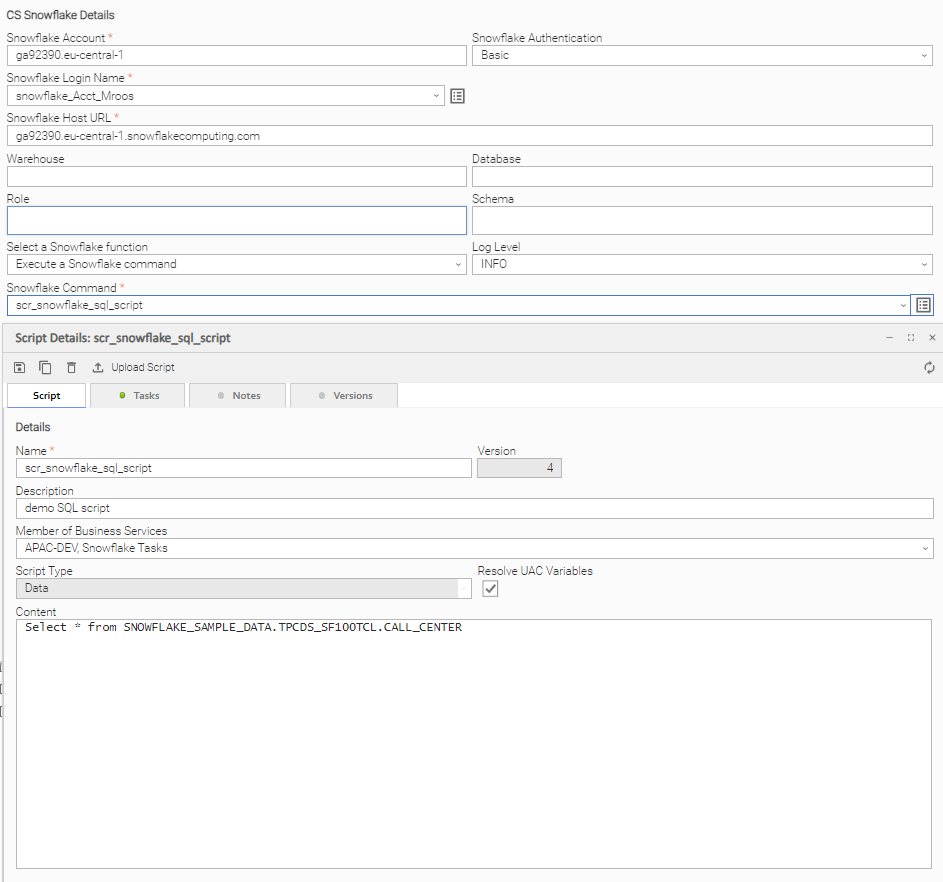

Executing a Snowflake Command​

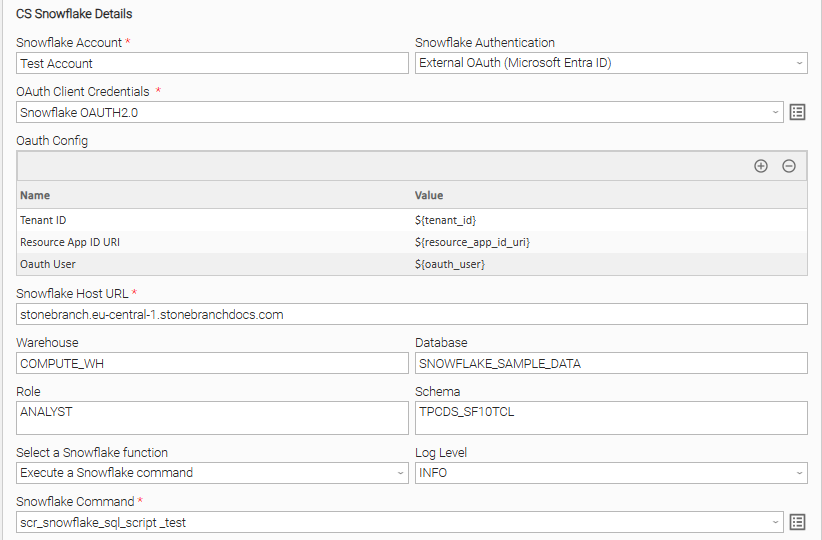

Execute a Snowflake Command (via Entra ID Oauth)​

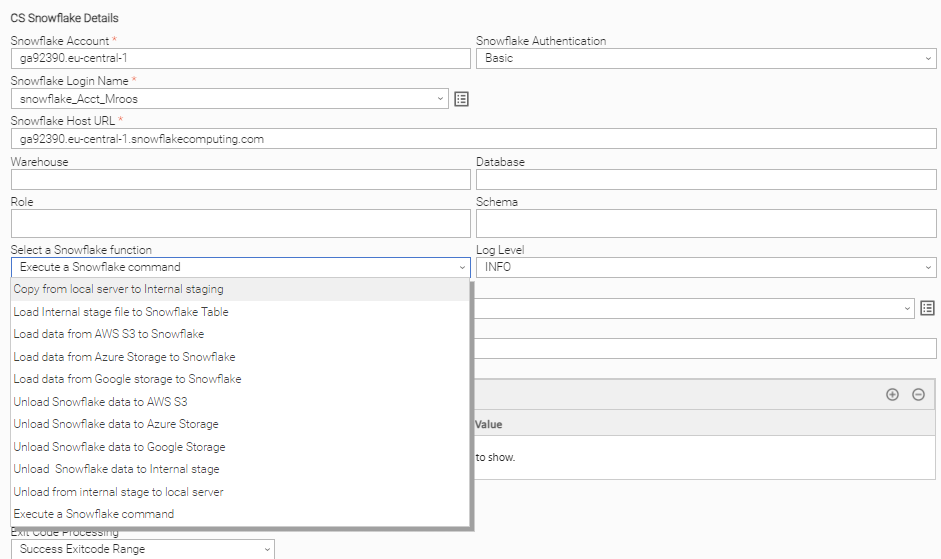

Snowflake Universal Task Functions​

Document References​

This document references the following documents:

Name

Description

Universal Templates

User documentation for creating Universal Templates in the Universal Controller user interface.

Universal Tasks

User documentation for creating Universal Tasks in the Universal Controller user interface.

Changelog​

ut-cs-snowflake-1.3.0 (2026-04-16)​

Enhancements​

  • Added: Support of OAuth authentication via Microsoft Entra ID.
  • Added: Support of variable for Snowflake Login Name field
  • Added: Automatic installation of Snowflake Python packages.
  • Added: Snowflake command status monitoring

Fixes​

  • Fixed: Private Key Location not found error while the task is executed on a Windows agent

ut-cs-snowflake-1.2.0 (2024-08-08)​

Enhancements​

  • Added: key pair Authentication

ut-cs-snowflake-1.1.4 (2022-09-05)​

Enhancements​

  • Added: Datawarehouse field

ut-cs-snowflake-1.0.0​

  • Initial version
