UAC Utility: GnuPG

Disclaimer

Your use of this download is governed by Stonebranch's Terms of Use, which are available at Terms Of Use.

Version Information

Template Name	Extension Name	Version	Status
GnuPG	ue-gnupg	2 (Current 2.0.0)	Fixes and new features are introduced. Compatibility starts from UAC/UAG 7.6.0.0 onwards.

warning

Version 2.0.0 is a major release and introduces breaking changes that might affect some customers depending on their setup. Administrators are strongly advised to refer to Changelog for more information on the changes introduced in this release.

Refer to Changelog for version history information.

Overview

GnuPG (GPG) is a command line tool implementing the OpenPGP standard. GPG allows for encryption , decryption and signing of data and communications. This integration provides the capability to perform file encryption and decryption, signing, and verification based on GnuPG.

Key Features

Feature	Description
Encrypt	Encrypt files based on file patterns, and optionally sign the encrypted file.
Decrypt	Decrypt files based on file patterns, and optionally verify signature.
Keystore Options	PGP keys can be retrieved from either a local keystore stored on the Universal Agent environment, or from a UDMG based keystore.

Support for UDMG versions 2 and 3

As of release 2.0.0, UDMG versions 2 and 3 are supported. The versions can be used for the actions related to encryption and decryption using UDMG keystore. The key difference is that UDMG version 3 requires a domain to be specified. Additionally, for UDMG version 3 the passphrase of the private key needs to be specified using UDMG or UAC credentials, unlike UDMG version 2 where the passphrase already comes embedded in the private key, so users do not need to provide it separately.

Software Requirements

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Area	Details
Python Version	Requires Python 3.11, tested with Agent bundled python distribution
Universal Agent	Compatible with Universal Agent for Windows x64 and version >= 7.6.0.0. Compatible with Universal Agent for Linux and version >= 7.6.0.0. Only Agents that are Under Support are supported.
Universal Controller	Universal Controller Version >= 7.6.0.0.
GnuPG	This integration requires GnuPG command line tool to be installed manually on the Universal Agent environment. Tested against GnuPG 2.2.19 and 2.4.4.

Supported Actions

Action: Encrypt With Local Keystore

Encrypt a single file or multiple files given a file pattern. Optionally sign the encrypted file(s). The Public key for encryption and Private Key for signing are retrieved from the local GnuPG keystore, through the Local Key and Private Key For Signing fields, respectively.

Configuration examples

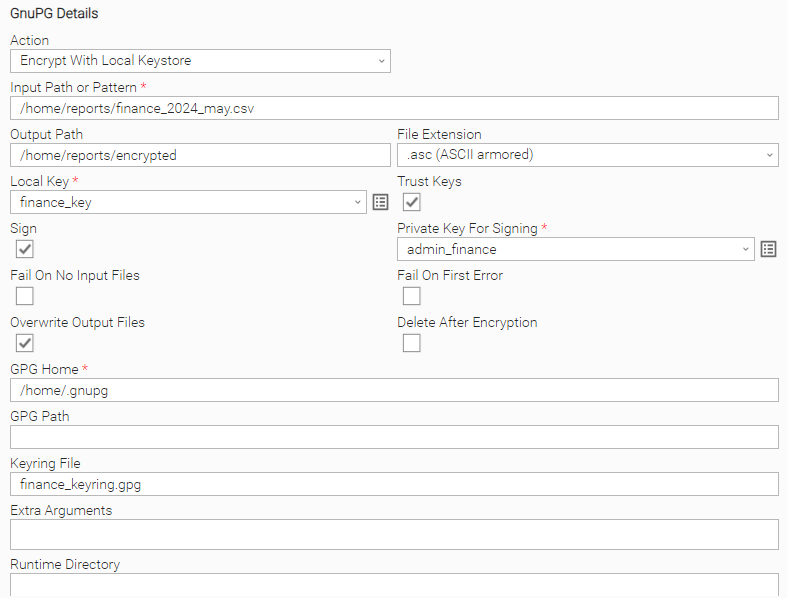

Use Case: Encrypt and sign a single file, using keys stored in a keyring file on the local GPG.

Retrieve the single file "finance_2024_may.csv" and encrypt it in ASCII format, using a PGP key stored in a local GPG keyring file in the /home/.gnupg directory. After encryption is completed, sign the encrypted file. Allow the integration to overwrite any existing encrypted file with the same name.

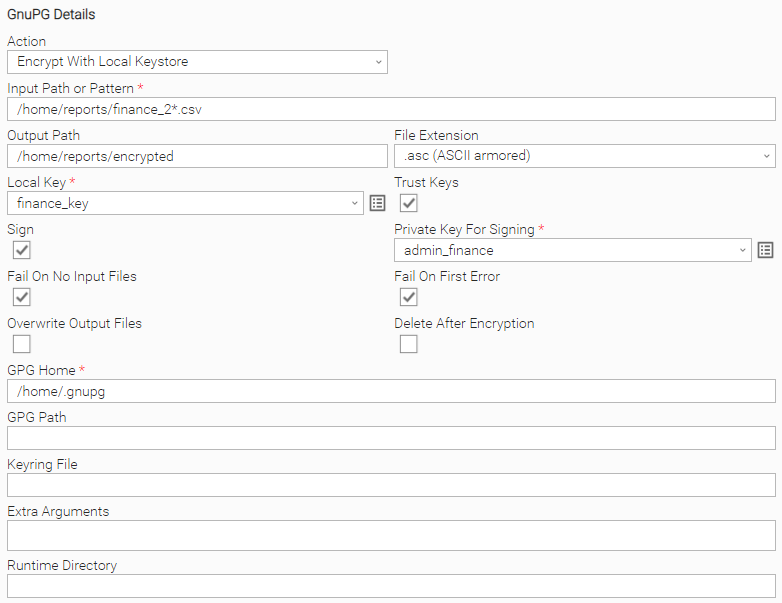

Use Case: Encrypt and sign multiple files matching a pattern, using keys stored in the default keyring of the local GPG.

Retrieve all matching files based on the filename pattern "finance_2*.csv" and encrypt them in ASCII format, using a PGP key stored in the default keyring of the local GPG. After encryption is completed, sign the encrypted files. The task instance will fail on the first encryption error or if no matching files are found.

Action Output

EXTENSION

The extension output provides the following information:

• exit_code, status_description: General info regarding the task execution.
• result.metadata.count: Number of files that have been encrypted. Skipped files are not counted here.
• result.metadata.input_file_count: Number of files that matched the Input Path or Pattern field.
• result.metadata.success_count: Number of files successfully encrypted.
• result.metadata.failure_count: Number of files failed to be encrypted.
• result.metadata.skip_count: Number of files skipped during processing due to previous error or overwrite flag.
• result.files.source_file: The source file path.
• result.files.target_file: The target file path.
• result.files.status: The status of the operation on the specific file. Possible values (Encrypted | Not encrypted).
• result.files.message: The error message.
• result.errors: List of generic or unexpected errors.

Examples:

Successful Encryption Example

{
  "exit_code": 0,
  "status_description": "Task executed successfully",
  "invocation": {
    "version": "2.0.0",
    "extension": "ue-gnupg",
    "fields": {
          ...
    }
  },
  "result": {
    "errors": [],
    "metadata": {
      "metadata": {
        "count": 2,
        "input_file_count": 3,
        "success_count": 1,
        "failure_count": 1,
        "skip_count": 1
      },
      "files": [
        {
          "source_file": "/source_directory/gpg_test1.txt",
          "target_file": "/target_directory/pgp_test1.txt.asc",
          "status": "Encrypted",
          "message": null
        },
        {
          "source_file": "/source_directory/gpg_test2.txt",
          "target_file": "/target_directory/pgp_test2.txt.asc",
          "status": "Encrypted",
          "message": null
        }
      ]
    }
  }
}

Failed Execution

{
  "exit_code": 100,
  "status_description": "Execution failed: At least one file processing failed.",
  "invocation": {
    "version": "2.0.0",
    "extension": "ue-gnupg",
    "fields": {
          ...
    }
  },
  "result": {
    "metadata": {
        "count": 3,
        "input_file_count": 4
        "success_count": 1,
        "failure_count": 2,
        "skip_count": 1
    },
    "files": [
        {
            "source_file": "/source_directory/pgp_test1.txt",
            "target_file": "/target_directory/pgp_test1.txt.pgp",
            "status": "Encrypted",
            "message": null
        },
        {
            "source_file": "/source_directory/pgp_test2.txt",
            "target_file": "/source_directory/pgp_test2.txt.pgp",
            "status": "Not encrypted",
            "message": "invalid recipient, not found:dummy.pub"
        },
        {
            "source_file": "/source_directory/pgp_test3.txt",
            "target_file": "/source_directory/pgp_test3.txt.pgp",
            "status": "Not encrypted",
            "message": "invalid recipient, not found:dummy.pub"
        }
    ]
  }

Generic Failed Execution

{
  "exit_code": 1,
  "status_description": "Execution Failed: ...",
  "invocation": {
    "version": "2.0.0",
    "extension": "ue-gnupg",
    "fields": {
          ...
    }
  }
  "result": {
    "errors": [
      "Execution Failed: ..."
    ]
  }
}

Action: Encrypt With UDMG Keystore

Encrypt a single file or multiple files given a file pattern. Optionally sign the encrypted file(s). The Public key for encryption and Private key for signing are retrieved from a UDMG server, through the 'UDMG Key Name' and 'UDMG Private Key For Signing' fields, respectively.

Configuration examples

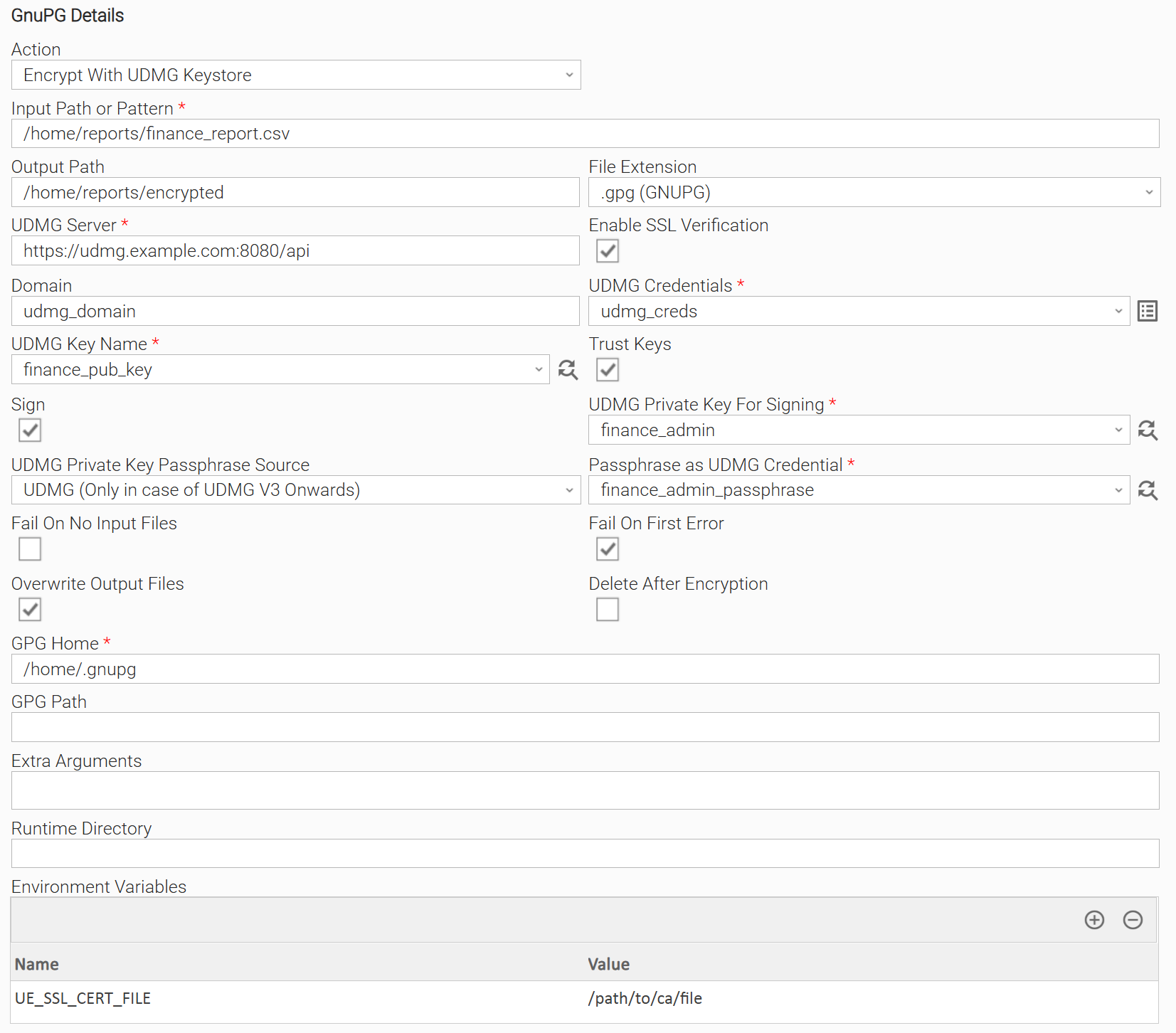

Use Case: Encrypt and sign a single file, using keys stored on a UDMG server.

Retrieve the single file "finance_report.csv" and encrypt it, using a PGP key stored on a UDMG version 3 server. After encryption is completed, sign the encrypted file. PGP keys will be temporarily stored on the local GPG, then removed as soon the task instance completes. Allow the integration to overwrite any existing encrypted file with the same name. Use SSL verification and the environment variable UE_SSL_CERT_FILE to specify the path to the CA bundle.

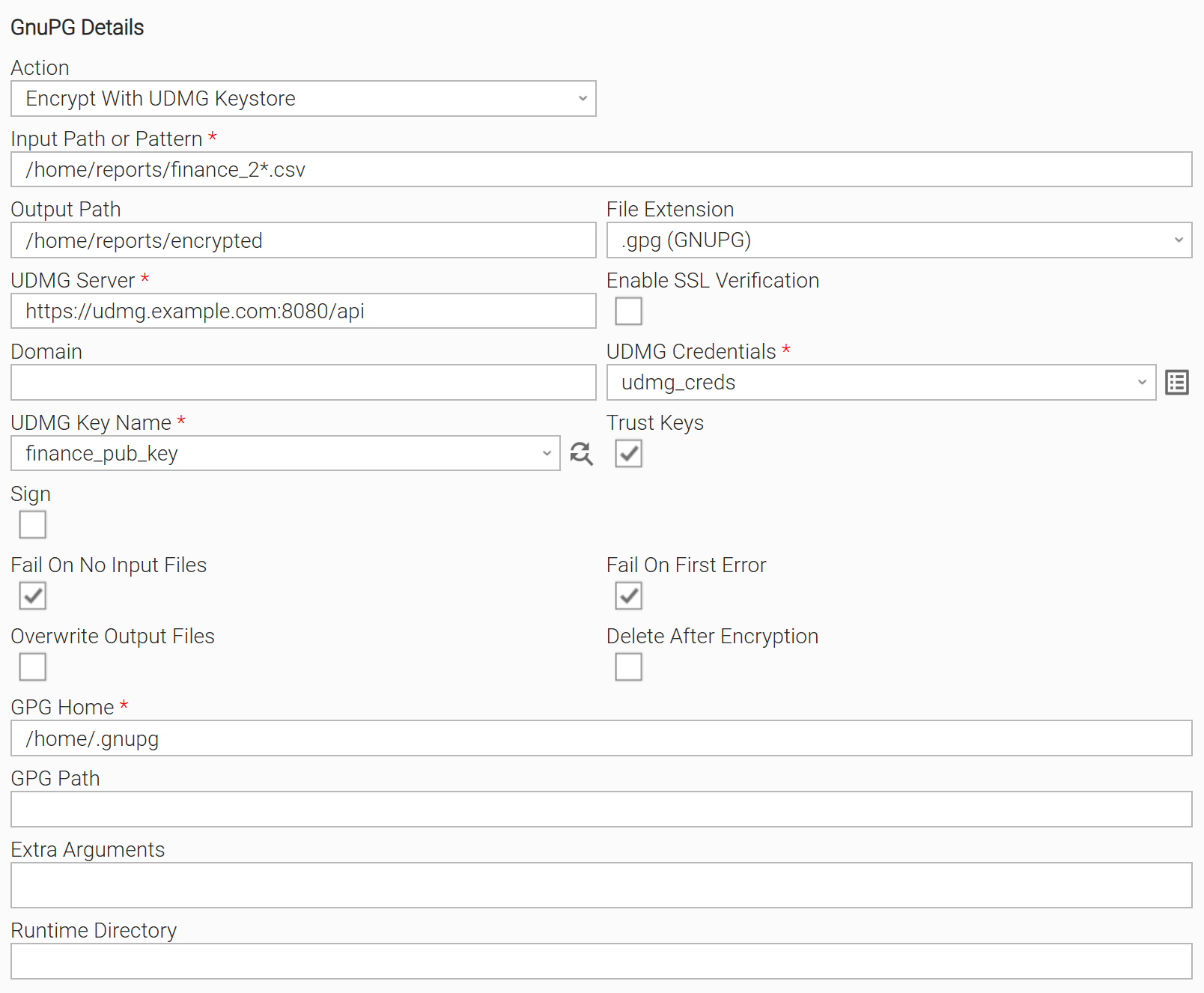

Use Case: Encrypt multiple files, using keys stored on a UDMG server.

Retrieve all matching files based on filename pattern "finance_2*.csv" and encrypt them, using a PGP key that is stored on a UDMG version 2 server. The integration will skip encryption of any existing encrypted file with the same name. The task instance will fail on the first encryption error or if no matching files are found. SSL verification is disabled.

Action Output

tip

Action Output is the same as described in Action Encrypt With Local Keystore.

Action: Decrypt With Local Keystore

Decrypt a single file or multiple files given a file pattern. Optionally verify the signature of a signed and encrypted file. Private key for decryption is retrieved from the local GPG keystore, through the 'Local Key' field.

Configuration examples

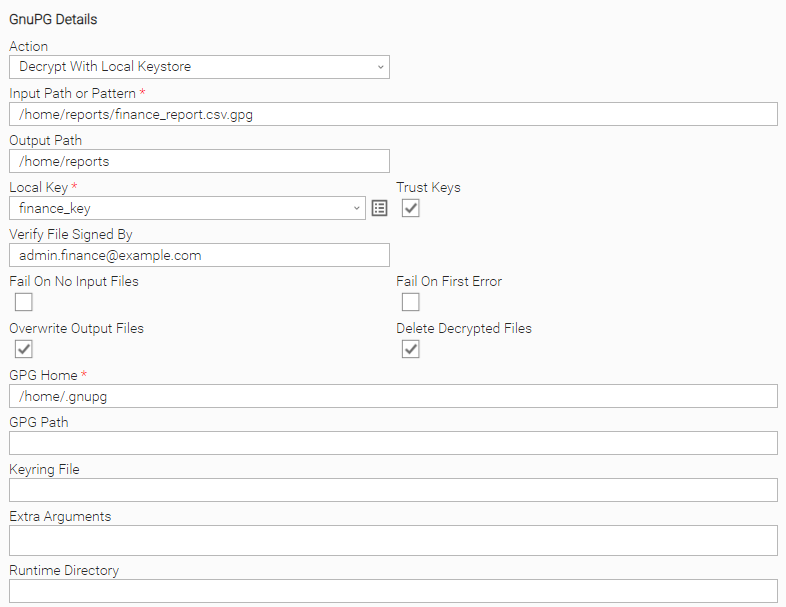

Use Case: Decrypt a single file using a Private Key stored in the local GPG keystore and verify the signature.

Retrieve a single file and decrypt it, using a PGP key stored in the local GPG keystore. After decryption is completed, verify that the file has been signed by "admin.finance@example.com". Allow the integration to overwrite any existing decrypted file with the same name. The task instance will delete the original decrypted file 'finance_report.gpg'.

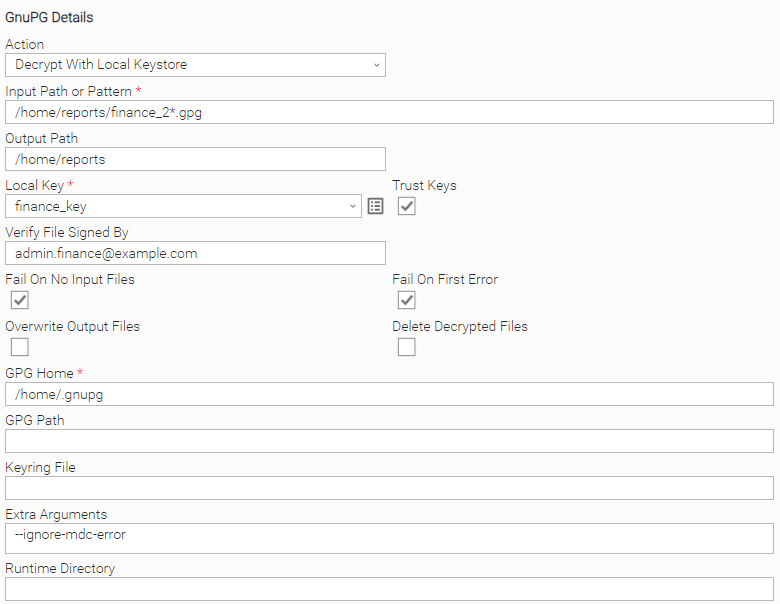

Use Case: Decrypt multiple files using a Private Key stored in the local GPG keystore and verify the signature.

Retrieve all matching files based on filename pattern "finance_2*.gpg" and decrypt them, using a PGP key stored in the local GPG keystore. After decryption is completed, verify that each file has been signed by "admin.finance@example.com". Using a GPG option, ignore any MDC error produced during decryption. The task instance will fail on the first decryption or verification error, or if no matching files are found.

Action Output

EXTENSION

The extension output provides the following information:

• exit_code, status_description: General info regarding the task execution.
• result.metadata.count: Number of files that have been decrypted. Skipped files are not counted here.
• result.metadata.input_file_count: Number of files matched the Input Path or Pattern field.
• result.metadata.success_count: Number of files successfully decrypted.
• result.metadata.failure_count: Number of files failed to be decrypted.
• result.metadata.skip_count: Number of files skipped during processing due to previous error or overwrite flag.
• result.files.source_file: The source file path.
• result.files.target_file: The target file path.
• result.files.status: The status of the operation on the specific file. Possible values (Decrypted | Not decrypted).
• result.files.message: The error message.
• result.errors: List of generic or unexpected errors.

Examples:

Successful Execution

{
  "exit_code": 0,
  "status_description": "Task executed successfully",
  "invocation": {
    "version": "2.0.0",
    "extension": "ue-gnupg",
    "fields": {
          ...
    }
  },
  "result": {
    "errors": [],
    "metadata": {
      "metadata": {
        "count": 2,
        "input_file_count": 3,
        "success_count": 1,
        "failure_count": 1,
        "skip_count": 1
      },
      "files": [
        {
          "source_file": "/source_directory/gpg_test1.txt.gpg",
          "target_file": "/target_directory/pgp_test1.txt",
          "status": "Decrypted",
          "message": " decryption ok"
        },
        {
          "source_file": "/source_directory/gpg_test2.txt.gpg",
          "target_file": "/target_directory/pgp_test2.txt",
          "status": "Not decrypted",
          "message": "not found:my_key private key"
        }
      ]
    }
  }
}

Failed Execution

{
  "exit_code": 100,
  "status_description": "Execution failed: At least one file processing failed.",
  "invocation": {
    "version": "2.0.0",
    "extension": "ue-gnupg",
    "fields": {
            ...
    }
  },
  "result": {
    "metadata": {
        "count": 3,
        "input_file_count": 4,
        "success_count": 1,
        "failure_count": 2,
        "skip_count": 1
    },
    "files": [
        {
            "source_file": "/source_directory/pgp_test1.txt.pgp",
            "target_file": "/target_directory/pgp_test1.txt",
            "status": "Decrypted",
            "message": null
        },
        {
            "source_file": "/source_directory/pgp_test2.txt.pgp",
            "target_file": "/target_directory/pgp_test2.txt",
            "status": "Not decrypted",
            "message": " not valid data"
        },
        {
            "source_file": "/source_directory/pgp_test3.txt.pgp",
            "target_file": null,
            "target_file": "/target_directory/pgp_test3.txt",
            "status": "Not decrypted",
            "message": " not valid data"
        },
    ]
  }
}

Generic Failed Execution

{
  "exit_code": 1,
  "status_description": "Execution Failed: ...",
  "invocation": {
    "version": "2.0.0",
    "extension": "ue-gnupg",
    "fields": {
          ...
    }
  }
  "result": {
    "errors": [
      "Execution Failed: ..."
    ]
  }
}

Action: Decrypt With UDMG Keystore

Decrypt a single file or multiple files given a file pattern. Optionally verify the signature of a signed and encrypted file. Private key for decryption is retrieved from a UDMG server, through the 'UDMG Key Name' field.

Configuration examples

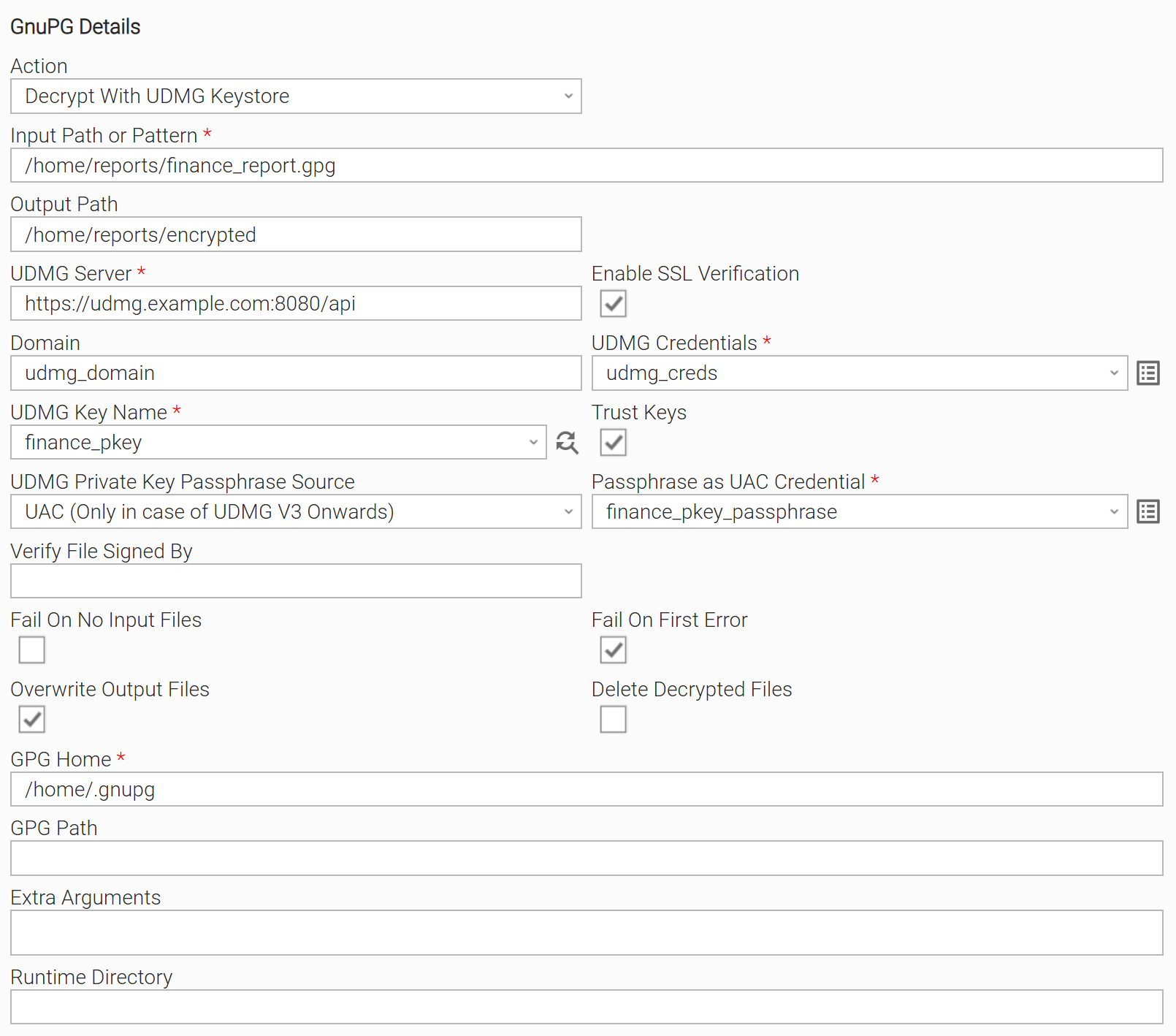

Use Case: Decrypt a single file using a private key stored on a UDMG server.

Retrieve a single file 'finance_report.gpg' and decrypt it, using a PGP key stored on a UDMG version 3 server. Allow the integration to overwrite any existing decrypted file with the same name. The task instance will fail on the first decryption or verification error. SSL verification is enabled.

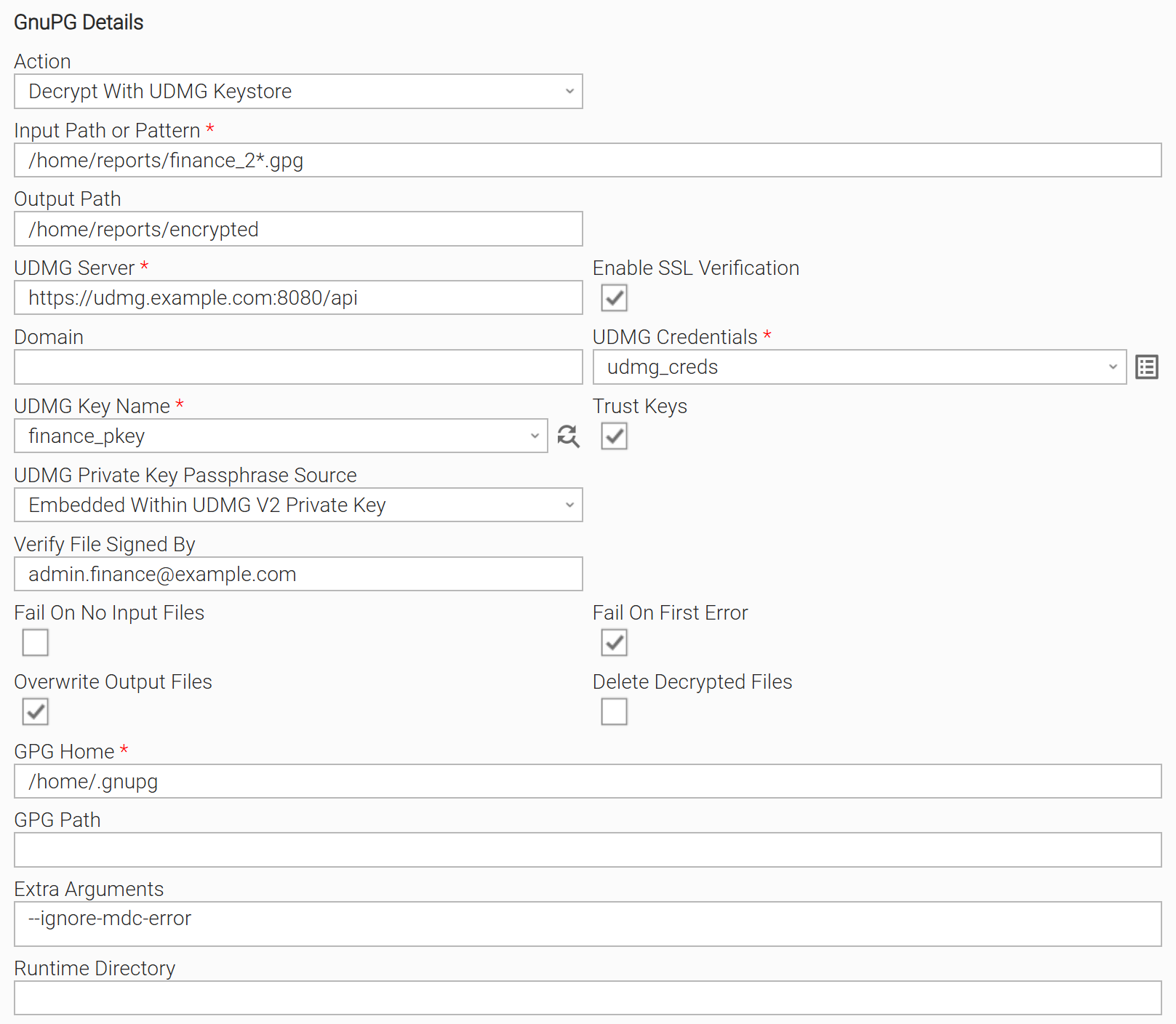

Use Case: Decrypt multiple files with private key stored on UDMG server and verify their signature.

Retrieve all matching files based on filename pattern "finance_2*.csv", and decrypt them, using a PGP key that exists on a UDMG version 2 server. After the decryption is completed, verify that each file has been signed by "admin.finance@example.com". Using a GPG option, ignore any MDC error produced during decryption. The task instance will fail on the first decryption or verification error. SSL verification is enabled.

Action Output

tip

Action Output is the same as described in Action Decrypt With Local Keystore.

Input Fields

Name	Type	Description	Version Information
Action	Choice	The action performed upon the task execution. Encrypt With Local Keystore Encrypt With UDMG Keystore Decrypt With Local Keystore Decrypt With UDMG Keystore	Introduced in 1.0.0
Input Path or Pattern	Text	Source directory containing the file(s) to encrypt/decrypt. When file path pattern is provided, all matched files will be used.	Introduced in 1.0.0
Output Path	Text	Directory to store the encrypted/decrypted files.	Introduced in 1.0.0
File Extension	Choice	The file extension that will be appended in the encrypted files. Choose the extension that will be used for the encrypted files. Available options: .gpg (GNUPG) .pgp (PGP) .asc (ASCII armored) Visible when Action is "Encrypt With Local Keystore" or "Encrypt With UDMG Keystore".	Introduced in 1.0.0
Local Key	Credentials	The UID or Email that will be used for the selected action. Should reflect to an existing GPG key in the local GPG keystore or the keyring that is specified in the Keyring field. The Credentials should be specified as follows: The UID or Email of the local key as "Runtime User". Private key's passphrase (only when Action = "Decrypt With Local Keystore") as "Passphrase". Visible and required when Action is "Encrypt With Local Keystore" or "Decrypt With Local Keystore".	Introduced in 1.0.0
UDMG Server	Text	UDMG Server API endpoint. Example*:* http://<udmg_url>:<port>/api for using HTTP communication. Example*:* https://<udmg_url>:<port>/api for using HTTPS communication. Visible and required when Action is "Encrypt With UDMG Keystore or "Decrypt With UDMG Keystore".	Introduced in 1.0.0
Enable SSL Verification	Checkbox	Enable/disable SSL certificate verification of the UDMG instance. A path to a certificate bundle may be specified using the UE_SSL_CERT_FILE environment variable. Default setting is checked. Visible and required when Action is "Encrypt With Local Keystore" or "Encrypt With UDMG Keystore".	Introduced in 2.0.0
Domain	Text	The UDMG domain to be used mandatory for UDMG version 3.	Introduced in 2.0.0
UDMG Credentials	Credentials	Credentials for UDMG Server. User as "Runtime User". User Password as "Runtime Password". Visible and required when Action is "Encrypt With UDMG Keystore or "Decrypt With UDMG Keystore".	Introduced in 1.0.0
UDMG Key Name	Dynamic Choice	A list of all the available PGP keys retrieved from the UDMG Server, one of which should be used for the selected action. When Action is "Encrypt With UDMG Keystore", the available Public Keys are listed. When Action is "Decrypt With UDMG Keystore", the available Private Keys are listed. Visible and required when Action is "Encrypt With UDMG Keystore or "Decrypt With UDMG Keystore".	Introduced in 1.0.0
Sign	Checkbox	After encryption is completed, optionally sign the encrypted file with the sender's private key. Default setting is unchecked*.*	Introduced in 1.0.0
Private Key For Signing	Credentials	Credentials representing the Private key used to sign the encrypted file(s). The UID or Email of the local key as "Runtime User". Private key's passphrase as "Passphrase". Visible and required when Sign is checked*.*	Introduced in 1.0.0
Verify File Signed By	Text	The email of the person/key who has signed the file that was decrypted. When a signed file is decrypted, an implicit signature verification is performed. Populating this field will force the task instance to perform an additional validation that the signature is from the expected person. tip Decryption is irrelevant to the signature verification. This means that a file can be successfully decrypted, but the signature verification might fail. In this case, a corresponding message is present in the Extension Output result.file.message field for the specific file. Visible when Action is "Decrypt With Local Keystore" or "Decrypt With UDMG Keystore".	Introduced in 1.0.0
UDMG Private Key For Signing	Dynamic Choice	A list of all the available PGP Private keys retrieved from the UDMG Server, one of which should be used for signing the encrypted files. Visible and required when Sign is checked*.*	Introduced in 1.0.0
UDMG Private Key Passphrase Source	Choice	Determines the source from where to get passphrase for private key. The following options are available. Embedded Within UDMG V2 Private Key (default) UAC (Only in case of UDMG V3 Onwards) UDMG (Only in case of UDMG V3 Onwards) Visible when Sign is checked or Action is "Decrypt With UDMG Keystore".	Introduced in 2.0.0
Passphrase as UAC Credential	Credential	Get the passphrase from a UAC credentials record. The UAC credentials can be defined as follows. Any value can be set in "Runtime User". The value of this attribute is irrelevant; however, it is mandatory to fill a value to save the credentials. The Passphrase value as "Passphrase". Visible and required when UDMG Private Key Passphrase Source is "UAC (Only in case of UDMG V3 Onwards)".	Introduced in 2.0.0
Passphrase as UDMG Credential	Dynamic Choice	Get the passphrase from a UDMG credentials record. The UDMG credentials can be defined as follows. With the type "Username and Password". Any value can be set in "Username". The value of this attribute is irrelevant, however it is mandatory to fill a value to save the credentials. The Passphrase value as "Password". Visible and required when UDMG Private Key Passphrase Source is "UDMG (Only in case of UDMG V3 Onwards)".	Introduced in 2.0.0
Overwrite Output File	Checkbox	When checked, the output file(s) will overwrite the existing ones, if any. Default setting is checked.	Introduced in 1.0.0
Delete After Encryption	Checkbox	When checked, delete the input file(s) after encryption. Visible when Action is "Encrypt With Local Keystore" or "Encrypt With UDMG Keystore". Default setting is unchecked.	Introduced in 1.0.0
Delete After Decryption	Checkbox	When checked, delete the input file(s) after decryption. Visible when Action is "Decrypt With Local Keystore" or "Decrypt With UDMG Keystore". Default setting is unchecked.	Introduced in 1.0.0
Fail On No Input Files	Checkbox	When selected, fails when no matching input files are found. Default setting is unchecked.	Introduced in 1.0.0
Fail On First Error	Checkbox	When checked, fails on the first error that might occur during encryption/decryption. Task instance fails with Exit Code 101. Default setting is unchecked.	Introduced in 1.0.0
Trust Keys	Checkbox	When checked, skip key validation and assume that used keys are always fully trusted. This option should be used with caution for imported keys. Default setting is unchecked.	Introduced in 1.0.0
GPG Home	Text	Home directory for the GnuGP tool. This is the location where default and/or custom keyrings can be stored. Refer to the official GnuPG documentation for more details on the GnuPG Home Directory option. Users are advised to use a custom GPG Home when Action is "Encrypt With UDMG Keystore or "Decrypt With UDMG Keystore".	Introduced in 1.0.0
GPG Path	Text	The file path to the .gpg executable. Should be populated when .gpg executable is not included in the PATH environment variable.	Introduced in 1.0.0
Keyring File	Text	Points to a keyring file. Use this field when a GPG Keyring other than the default stored under the GPG Home Directory is used. Populate the field according to the following cases: When field is the absolute path to a keyring file is provided, it will be respected. When field is the keyring filename, it will be expected to be found under the GPG Home. Please refer to official documentation for more details on the keyring usage, depending on the Linux or Windows OS. Visible when Action is "Encrypt With Local Keystore" or "Decrypt With Local Keystore".	Introduced in 1.0.0
Extra Arguments	Large Text	A space-separated list of extra arguments that can be provided to the GPG command line tool. A usage example can be found under Action "Decrypt With Local Keystore". Some common scenarios for the Extra Arguments field are indicated in Extra Arguments for GnuPG.	Introduced in 1.0.0

Extra Arguments for GnuPG

The task definition allows users to pass additional GnuPG command line arguments through the Extra Arguments field. See the following common scenarios.

Setting GnuPG debug level

By default, when the task is run with Log Level DEBUG, --debug-level 3 is used implicitly during GnuPG execution, which corresponds to the advanced GnuPG debug level. This level offers comprehensive in-depth debug information useful for troubleshooting purposes.

However, users have the flexibility to override this default setting. If a custom GnuPG debug level is specified using the --debug-level argument in the Extra Arguments field, it will take precedence over the default level 3. This allows users to adjust the verbosity of the debug output according to their specific needs. If using the --debug-level extra argument, debug information will appear on STDERR, even if the task log level is not set to DEBUG.

Using Keys generated by older GnuPG versions.

Older GPG versions, particularly those in the 1.x series of versions, are considered less secure for multiple reasons, such as using outdated encrypting algorithms and older key types. This may cause problems during execution with GnuPG version 2.x, such as failed decryption even though a correct private key is used. This case may occur if the key was encrypted with an outdated algorithm, or it did not have Modification Detection Code (MDC).

To avoid such errors, users can configure the Extra Arguments field accordingly, consulting the official GnuPG User Guide.

• --ignore-mdc-error: Instructs GPG to ignore Modification Detection Code (MDC) errors. This is useful since older GPG versions do not use MDC for the keys, while newer GPG versions require MDC by default and refuse to decrypt messages without it. However, reduced protection against message tampering is a security risk that must be considered.
• --trust-model always: Sets GPG's trust model to "always," bypassing key validation. Older GPG versions have simpler trust models, and this argument skips the stricter key validation processes required by newer GPG versions. This argument needs to be used with caution due to possible impersonation attacks.

warning

Task Authors should always consult the GnuPG official User Guide to understand the nuances around GnuPG command line options

Environment Variables

Environment Variables can be set from Environment Variables task definition table. The following environment variables can affect the behavior of the extension.

Environment Variable Name	Description	Version Information
UE_HTTP_TIMEOUT	This environment variable defines the global timeout value for sending all requests to the UDMG server. It affects both connection and read timeouts, preventing requests from hanging. Accepted values: Positive integer (in seconds). If the environment variable is not set, the timeout will default to 60 seconds.	2.0.0
UE_SSL_CERT_FILE	The path to the SSL certificate file for validating the UDMG server.	2.0.0

Exit Codes

Exit Code	Status	Status Description	Meaning
0	Success	Task executed successfully.	Successful Execution
1	Failed	Execution Failed: <Error Description>.	Generic Error identifying a failed execution.
2	Failed	"Authentication Error: Account cannot be authenticated."	UDMG: Bad credentials.
3	Failed	"Authorization Error: Account is not authorized to perform the requested action."	UDMG: Insufficient permissions.
10	Failed	"Connection Error: <<Error Description>>"	UDMG: Bad connection data or connection timed out.
11	Failed	"Connection Error: 404 page not found."	Invalid UDMG API endpoint.
20	Failed	"Data Validation Error: <<Error Description>>"	Input fields validation error.
100	Failed	Execution failed: At least one file processing failed.	At least one file has failed to be encrypted/decrypted, or signature has failed to be verified according to the given Email.
101	Failed	Execution failed: All file processing failed.	All files have failed to be encrypted/decrypted.

STDOUT and STDERR

STDOUT of this integration provides verbose logging of the executed GPG command line. STDERR provides additional information to the user, the detail of it is tuned by Log Level Task Definition field.

More information on the available levels can be found on the official GnuPG site.

tip

Backward compatibility is not guaranteed for the content of STDOUT/STDERR and can be changed in future versions without notice

STDOUT and STDERR can include more debug information if field Extra Arguments is used (parameter --debug-level <level>).

More information on the available debug levels can be found in the official documentation.

GnuPG - How To

The following sections describe sample scenarios of managing GPG keys with GnuPG cli tool.

Action	GPG Command	Comments	Example Output
Generate GPG Key Pair - default way (RSA Algorithm)	gpg --generate-key	At this step, you will be prompted to input a passphrase for the private key. The public and private keys are generated and stored in binary format.	Generate Keys Generate Keys (venv) vagrant@ubuntu-bionic:~$ gpg --generate-key gpg (GnuPG) 2.2.4; Copyright (C) 2017 Free Software Foundation, Inc. This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Note: Use "gpg --full-generate-key" for a full featured key generation dialog. GnuPG needs to construct a user ID to identify your key. Real name: ue_gpg Email address: ue_gpg@example.com You selected this USER-ID: "ue_gpg<ue_gpg@example.com>" Change (N)ame, (E)mail, or (O)kay/(Q)uit? O We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. gpg: key 6108ADC464ED7963 marked as ultimately trusted gpg: directory '/home/vagrant/.gnupg/openpgp-revocs.d' created gpg: revocation certificate stored as '/home/vagrant/.gnupg/openpgp-revocs.d/CF610B70872C3981A7F890D06108ADC464ED7963.rev' public and secret key created and signed. pub rsa3072 2024-02-06 [SC] [expires: 2026-02-05] CF610B70872C3981A7F890D06108ADC464ED7963 uid ue_gpg<ue_gpg@example.com> sub rsa3072 2024-02-06 [E] [expires: 2026-02-05]
Generate GPG keypair - choose encryption algorithm	gpg --full-generate-key	At this step, you will be prompted to input a passphrase for the private key. Choose a different encryption algorithm, other than the default RSA. In this example, 'ElGamal' is chosen.	Generate Keys Generate Keys venv) vagrant@ubuntu-bionic:~$ gpg --full-generate-key gpg (GnuPG) 2.2.4; Copyright (C) 2017 Free Software Foundation, Inc. This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Please select what kind of key you want: (1) RSA and RSA (default) (2) DSA and Elgamal (3) DSA (sign only) (4) RSA (sign only) Your selection? 2 DSA keys may be between 1024 and 3072 bits long. What keysize do you want? (2048) 1024 Requested keysize is 1024 bits Please specify how long the key should be valid. 0 = key does not expire <n> = key expires in n days <n>w = key expires in n weeks <n>m = key expires in n months <n>y = key expires in n years Key is valid for? (0) 0 Key does not expire at all Is this correct? (y/N) y GnuPG needs to construct a user ID to identify your key. Real name: ue_gpg_elg Email address: ue_gpg_elg@example.com Comment: This key pair uses DSA and ElGamal Algorithm You selected this USER-ID: "ue_gpg_elg(This key pair uses DSA and ElGamal Algorithm) <ue_gpg_elg@example.com>" Change (N)ame, (C)omment, (E)mail or (O)kay/(Q)uit? o We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. gpg: key D4471D13493DA3C8 marked as ultimately trusted gpg: revocation certificate stored as '/home/vagrant/.gnupg/openpgp-revocs.d/AFD9027733280F78ED5A74CAD4471D13493DA3C8.rev' public and secret key created and signed. pub dsa1024 2024-02-06 [SC] AFD9027733280F78ED5A74CAD4471D13493DA3C8 uid ue_gpg_elg(This key pair uses DSA and ElGamal Algorithm) <ue_gpg_elg@example.com> sub elg1024 2024-02-06 [E]
Export GPG Public Key to file	gpg --export --armor <uid> > my_secret.pub		Export Public Key Export Public Key (venv) vagrant@ubuntu-bionic:~$ gpg --export -a ue_gpg > ./ue_gpg_pub.asc (venv) vagrant@ubuntu-bionic:~$ cat ./ue_gpg_pub.asc
Export GPG Private Key to file	gpg --export-secret-keys -a [uid] > my_secret.key	At this point you will be prompted to enter the passphrase you set in the key generation step.	Export Private Key Export Private Key (venv) vagrant@ubuntu-bionic:~$ gpg --export-secret-keys -a ue_gpg> ./ue_gpg_pkey.asc (venv) vagrant@ubuntu-bionic:~$ cat./ue_gpg_pkey.asc
List Keys	gpg --list-keys	The above command will prompt only the public keys. To get prompted with the private keys, execute the command: gpg --list-secret-keys To list keys under a keystore stored on a different GPG home, than the default one: gpg --homedir <dir> --list-keys To list keys stored on a custom keyring file: gpg --keyring <absolute path to keyring file> --no-default-keyring --list-keys	List Pubic Keys List Pubic Keys (venv) vagrant@ubuntu-bionic:~$ gpg --list-keys gpg: checking the trustdb gpg: marginals needed: 3 completes needed: 1 trust model: pgp gpg: depth: 0 valid: 2 signed: 0 trust: 0-, 0q, 0n, 0m, 0f, 2u gpg: next trustdb check due at 2026-02-05 /home/vagrant/.gnupg/pubring.kbx -------------------------------- pub rsa3072 2024-02-06 [SC] [expires: 2026-02-05] CF610B70872C3981A7F890D06108ADC464ED7963 uid [ultimate] ue_gpg<ue_gpg@example.com> sub rsa3072 2024-02-06 [E] [expires: 2026-02-05] pub dsa1024 2024-02-06 [SC] AFD9027733280F78ED5A74CAD4471D13493DA3C8 uid [ultimate] ue_gpg_elg (This key pair uses DSA and ElGamal Algorithm) <ue_gpg_elg@example.com> sub elg1024 2024-02-06 [E]
Import GPG Public Keys	gpg --import <pub key file> [--homedir <>]		Import Public Key Import Public Key (venv) vagrant@ubuntu-bionic:~$ gpg --import ue_gpg.pub gpg: key FD9C1F2E818BD452: public key "ue_gpg<ue_gpg@example.com>" imported gpg: Total number processed: 1 gpg: imported: 1 (venv) vagrant@ubuntu-bionic:~$
Import GPG Private Keys	gpg --import <pkey file> [--homedir <>]	At this point you will be prompted to enter the key passphrase. tip Private keys should be carefully imported into a system. In order to use a private key properly, you might need to update its trust method. To do so, execute the interactive command: gpg --trust . Choose the appropriate options as per your needs, and then run gpg --save to save the changes.	Import Private Key Import Private Key (venv) vagrant@ubuntu-bionic:~$ gpg --import ue_gpg.key gpg: key FD9C1F2E818BD452: "ue_gpg<ue_gpg@example.com>" not changed gpg: key FD9C1F2E818BD452: secret key imported gpg: Total number processed: 1 gpg: unchanged: 1 gpg: secret keys read: 1 gpg: secret keys imported: 1

How To

Import Universal Template

To use the Universal Template, you first must perform the following steps.

1. This Universal Task requires the Resolvable Credentials feature. Check that the Resolvable Credentials Permitted system property has been set to true.
2. Import the Universal Template into your Controller:
   1. Extract the zip file, you downloaded from the Integration Hub.
   2. In the Controller UI, select Services > Import Integration Template option.
   3. Browse to the "export" folder under the extracted files for the ZIP file (Name of the file will be unv_tmplt_*.zip) and click Import.
   4. When the file is imported successfully, refresh the Universal Templates list; the Universal Template will appear on the list.

Modifications of this integration, applied by users or customers, before or after import, might affect the supportability of this integration. For more information refer to Integration Modifications.

Configure Universal Task

For a new Universal Task, create a new task, and enter the required input fields.

Integration Modifications

Modifications applied by users or customers, before or after import, might affect the supportability of this integration. The following modifications are discouraged to retain the support level as applied for this integration.

• Python code modifications should not be done.
• Template Modifications
  • General Section
    • "Name", "Extension", "Variable Prefix", and "Icon" should not be changed.
  • Universal Template Details Section
    • "Template Type", "Agent Type", "Send Extension Variables", and "Always Cancel on Force Finish" should not be changed.
  • Result Processing Defaults Section
    • Success and Failure Exit codes should not be changed.
    • Success and Failure Output processing should not be changed.
  • Fields Restriction Section
    The setup of the template does not impose any restrictions. However, concerning the "Exit Code Processing Fields" section.
    1. Success/Failure exit codes need to be respected.
    2. In principle, as STDERR and STDOUT outputs can change in follow-up releases of this integration, they should not be considered as a reliable source for determining the success or failure of a task.

Users and customers are encouraged to report defects, or feature requests at Stonebranch Support Desk.

Document References

This document references the following documents:

Document Link	Description
Universal Templates	User documentation for creating, working with and understanding Universal Templates and Integrations.
Universal Tasks	User documentation for creating Universal Tasks in the Universal Controller user interface.
GnuPG	User documentation of GnuPG command line tool.

Changelog

ue-gnupg-2.0.0 (2025-12-19)

Deprecations and Breaking Changes

• Breaking Change: Dropping support for Agents with version <= 7.5 and for Python 3.7.

Enhancements

• Added: Support for UDMG server version 3.
• Added: Environment variables UE_HTTP_TIMEOUT for setting up timeout for requests and UE_SSL_CERT_FILE for setting up the path to the CA bundle.

Fixes

• Fixed: Duplicate key deletion when encryption and signing use same fingerprint. (#51149)

ue-gnupg-1.1.1 (2025-08-21)

Fixes

• Fixed: GnuPG failures by using key fingerprints instead of names for key existence verification and encrypt/decrypt operations. (#138862, #48376)

ue-gnupg-1.1.0 (2024-11-07)

Enhancements

• Added: When the Task is configured to run in DEBUG mode, GnuPG is run in DEBUG mode as well to provide more information on STDERR (#41681)
• Added: Environment variable UE_GNUPG_VERBOSE_OUTPUT is dropped, and its functionality is embedded when the Task is run on DEBUG log level for better user experience.
• Added: Updated documentation to include guidance on handling older GPG keys. (#41682)

ue-gnupg-1.0.1 (2024-08-08)

Fixes

• Fixed: fix check that falsely detects that the target file exists (#41481)

ue-gnupg-1.0.0 (2024-06-06)

Initial version
