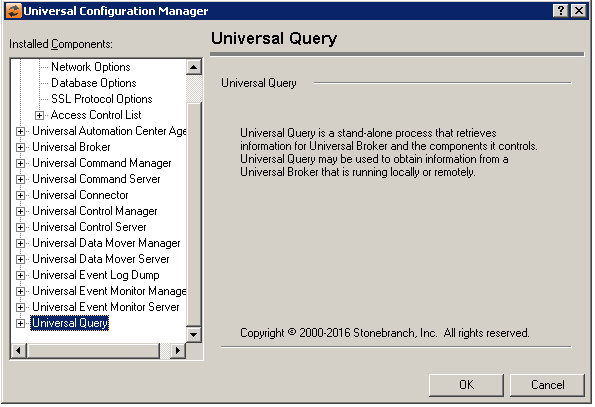

Universal Configuration Manager - Universal Query

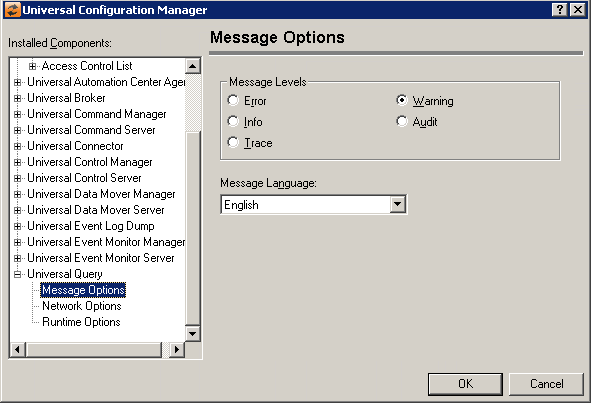

Universal Query: Message Options

Field	Description
Message Level	Error Turns on message logging for errors only. Warning Turns on message logging for warnings and errors. Info Turns on message logging for all informational, warning and error messages. Audit Turns on message logging for all audit, informational, warning and error messages. Trace Allows all messages to be logged, including those used for debugging purposes.
Message Language	Specifies the language used to display error messages.

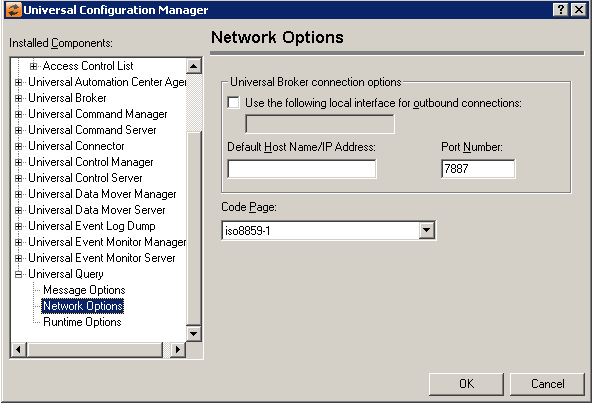

Universal Query: Network Options

Field	Description
Universal Broker Connection Options	Outbound IP Option When this option is selected, the IP address or alias of a local interface may be specified that will be used whenever Universal Query connects to a Universal Broker.If this option is not selected, any available local interface will be used. Default Host Name/IP Address Enter a valid IP address or host name that will be used as the default system for process execution. To run processes on the local system, enter a host name of localhost, or an IP address of 127.0.0.1. Port Number Enter a port number or service name that will be used to connect to Universal Broker.
Code Page	Sets the translation table used to translate text-based data transmitted across the network.

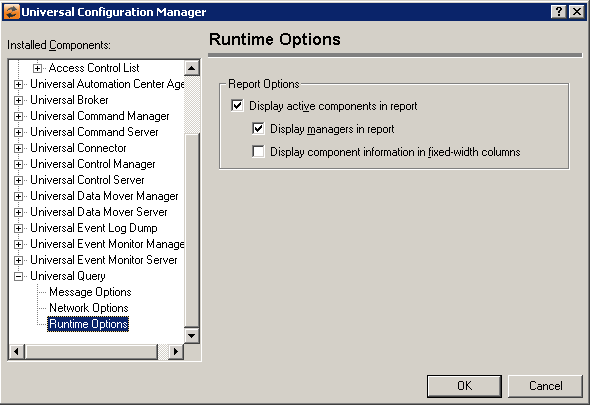

Universal Query: Runtime Options

Field

Description

Report options

Display Active Components in report Check this option if you want to display information for the active components currently being managed by a specific Universal Broker. If this option is not checked, only the status of the Broker will be displayed. Display managers in report heck this option if you want to display information for Universal Manager components and utilities currently registered with a specified Universal Broker. If this option is not checked, only the status of the Universal Server components will be displayed. Display component information in fixed-width columns Check this option to display information for active components in fixed-width colums. This will allow the information in the resulting text file to be easily parsed. If this option is not checked, active component information will be formatted in variable-width columns, as determined by the information returned.
