Windows Host Installation

This guide explains how to install UDMG Server 3.2.x on Windows, configure it to connect to a supported database, start the Windows service, and verify the installation.

Prerequisites

• Administrator privileges on the Windows host where you will install UDMG Server.
• A supported database (Oracle, MySQL, Microsoft SQL Server, or PostgreSQL). For setup instructions, see Database Installation.

info

Before you begin, confirm that your Windows version and database version are supported, and that the host meets the hardware recommendations. For details, see System Requirements.

Installation

To install UDMG Server, follow these steps:

1. Get the Installer File

To obtain the installation package, contact your Stonebranch representative. If you do not have a representative, reach out to support@stonebranch.com.

2. Verify the Checksum

To ensure the integrity of the downloaded package, verify its SHA256 checksum by navigating to the directory that contains the installer and running the following command:

Get-FileHash -Algorithm SHA256 .\udmg-server-3.2.1-setup.exe

For UDMG Server 3.2.1, the output must match the following value exactly:

3C32182C41ED50DB299770A2C3C672ADA7229789C14F89BDE60CC84DD4176005

3. Run the Installer

Run the UDMG Server installer and follow the prompts in the installation wizard to complete the installation.

You can select a custom installation path or accept the default.

For this guide, we use the default path: C:\Program Files\Stonebranch\UDMG Server\.

info

Do not select the Start UDMG Server Service now checkbox, as you still need to configure the Configuration File before the service can run.

4. Check the Installed Binary

After installation, the binaries and configuration files are located in the installation folder.

You can verify that the binary is installed by running:

Command:

& "C:\Program Files\Stonebranch\UDMG Server\udmg-server.exe" --version

Example output:

udmg-server version 3.2.1-b5685:97ef93098f83e747e064691af7acd2a1f0ac19a5:HEAD:2026-02-02T14:12:19Z

info

The exact version and build information may differ.

Configuration

info

All HCL arguments described on this page use dot notation to reference their full path from the root of the configuration file.

After installing the software, the next step is to configure UDMG Server by editing the Configuration File. By default, the Configuration File is located at C:\Program Files\Stonebranch\UDMG Server\udmg-server.hcl.

The initial Configuration File includes baseline configuration values. However, certain arguments (such as the database connection, working directory, and security keys) must be configured before the instance can start successfully.

To configure UDMG Server (including recommended security settings), edit the Configuration File as follows:

1. Work Directory Path

Configure the work_directory_path argument to set the root working directory for UDMG Server.

For example:

udmg-server.hcl

work_directory_path = "C:\\UDMG\\WorkDir\\"

info

For more context and recommendations, see Work Directory Path.

2. jwt Block

Configure the jwt block to set the signing key used to sign access and refresh tokens for the UDMG Admin UI and UDMG REST API. This key must be a strong secret of at least 30 characters and can contain only letters, numbers, and underscores.

udmg-server.hcl

jwt {
    signing_key = "<REPLACE_WITH_YOUR_LONG_RANDOM_KEY>"

    ...

}

3. database Block

You can configure the database block in two ways: by specifying individual connection parameters, or by using a TNS-format DSN (Oracle only).

Individual Parameters (Any Engine)

For any supported database engine, you can configure the database block using individual parameters such as database.hostname, database.port, and database.name.

In this example, we followed the Database Installation guide for MySQL and have a MySQL database running on the same host as UDMG Server, with the default MySQL port:

udmg-server.hcl

database {
    engine   = "mysql"
    name     = "udmg"
    hostname = "localhost"
    port     = 3306
    user     = "udmgadm"
    password = "udmg-mysql-password"

    ...
}

DSN in TNS Format (Oracle)

For Oracle databases, you can also configure the database block using a DSN, instead of individual arguments. For this, UDMG supports TNS descriptors as a single-line string.

In this case, you must still specify database.user and database.password separately:

udmg-server.hcl

database {
    engine   = "oracle"
    user     = "udmgadm"
    password = "udmg-oracle-password"
    dsn = "(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=hostname)(PORT=1521))(CONNECT_DATA=(SERVICE_NAME=service_name)))"

    ...
}

When using the TNS descriptor format:

• The database.user and database.password fields are required.
• When database.dsn is set, it overrides database.hostname, database.port, and database.name.

4. database.secure Block (Optional)

Use the database.secure block to configure optional TLS/SSL for the database connection.

To enable TLS/SSL, set database.secure.enable to true and adjust the database.secure.mode according to your database security requirements.

If your database requires client certificate authentication, provide the paths to the client certificate and private key files.

udmg-server.hcl

database {

    secure {
        enable   = true
        mode     = "require"
        pub_key  = "C:\\Program Files\\Stonebranch\\UDMG Server\\certs\\db-client-cert.pem"
        priv_key = "C:\\Program Files\\Stonebranch\\UDMG Server\\certs\\db-client-key.pem"
    }

    ...
}

5. security Block

Set the security.passphrase_key field to define the root encryption key used to protect secret values (passwords, credential private keys, etc.).

This key:

• Must be a valid 32-byte (64-character) hexadecimal string.
• Must be kept secret and backed up securely (it is required for decryption and disaster recovery).

You can generate a suitable value using one of the following methods:

PowerShell (Get-Random)

Generate a 64-character hexadecimal string (basic method):

$UDMG_SECURITY_PASSPHRASE_KEY = (1..64 | ForEach-Object { '{0:X}' -f (Get-Random -Max 16) }) -join ''
$UDMG_SECURITY_PASSPHRASE_KEY

PowerShell (RandomNumberGenerator)

Generate a 64-character hexadecimal string using cryptographically secure randomness:

$UDMG_SECURITY_PASSPHRASE_KEY = & {
$bytes = [byte[]]::new(32)
[Security.Cryptography.RandomNumberGenerator]::Create().GetBytes($bytes)
try {
    ([BitConverter]::ToString($bytes) -replace '-', '').ToLowerInvariant()
}
finally {
    [Array]::Clear($bytes, 0, $bytes.Length)
}
}
$UDMG_SECURITY_PASSPHRASE_KEY

Then set it in the Configuration File:

udmg-server.hcl

security {
    passphrase_key = "<REPLACE_WITH_YOUR_64_CHARACTER_HEXADECIMAL_STRING>"

    ...

}

tip

For production environments, we strongly recommend providing the passphrase key via the UDMG_SECURITY_PASSPHRASE_KEY environment variable using Custom Functions.

info

See Encryption Key Rotation for instructions on how to rotate this key securely.

6. api Block

Use the api block to configure how the UDMG Server API listens for incoming connections.

• api.inet controls the bind address (default is 0.0.0.0, which listens on all interfaces).
• api.port sets the TCP port for the API (default is "8080").
• api.trusted_domains defines the allowed origins for the UDMG Admin UI when it is served from an external web server.

For example:

udmg-server.hcl

api {
    inet = "0.0.0.0"
    port = "8080"
    trusted_domains = [
        "udmg.my-company.com",
        "udmg-staging.my-company.com:9180",
    ]

    ...
}

7. api.secure Block (Recommended)

Use the api.secure block to enable HTTPS and configure the TLS certificate and key used by the UDMG REST API.

While optional, enabling HTTPS is highly recommended to secure client communication with the UDMG REST API, especially in production environments or when the server is exposed beyond localhost.

When api.secure.enable is set to true, the UDMG REST API listens over HTTPS on the configured api.port using the provided certificate and key.

To enable HTTPS, set api.secure.enable to true and provide the paths to your certificate (api.secure.pub_key) and private key (api.secure.priv_key):

For example:

udmg-server.hcl

api {
    ...

    secure {
        enable   = true
        pub_key  = "C:\\Program Files\\Stonebranch\\UDMG Server\\certs\\udmg-api-cert.pem"
        priv_key = "C:\\Program Files\\Stonebranch\\UDMG Server\\certs\\udmg-api-key.pem"
    }
}

info

For details on the PEM certificate and key files, see the api block.

8. log Block

Use the log block to configure the logging behavior of UDMG Server. In particular, set log.file to a valid file path to enable file-based logging during installation and configuration.

For example:

udmg-server.hcl

log {
    file = "C:\\Program Files\\Stonebranch\\UDMG Server\\logs\\udmg-server.log"

    ...
}

Service Start

Once the configuration is complete, start the UDMG Server service by running:

Start-Service -Name "udmg-server"

Optionally, set the service to start automatically with the system:

Set-Service -Name "udmg-server" -StartupType Automatic

Installation Verification

1. Verify That the Service Started Correctly

To confirm that the Windows service is installed and running, run:

Get-Service -Name "udmg-server"

Expected output:

Status   Name         DisplayName
------   ----         -----------
Running  udmg-server  Stonebranch UDMG Server

2. Verify Listening Ports

Verify that UDMG Server is listening on the expected ports by running:

Get-NetTCPConnection -State Listen |
  Where-Object { $_.OwningProcess -eq (Get-Process -Name "udmg-server").Id } |
  Select-Object LocalAddress, LocalPort, OwningProcess |
  Sort-Object LocalPort

Example output:

LocalAddress LocalPort OwningProcess
------------ --------- -------------
::                4222          2192
::                6222          2192
::                7070          2192
::                8080          2192

3. Test UDMG REST API

Test the UDMG REST API by running:

curl.exe https://localhost:8080/auth/login/_csrf

If you are using a self-signed certificate for testing purposes, you may need to ignore certificate validation errors using the -k flag:

curl.exe -k https://localhost:8080/auth/login/_csrf

Example output:

{"csrfToken":"e07df0cd-dabe-43dc-93cd-8a2fd4582e52"}

info

The previous command assumes that you enabled HTTPS for the UDMG REST API. If you did not enable HTTPS, replace https with http and adjust the port if necessary.

4. Test UDMG Observability API

Test the UDMG Observability API by running:

(Invoke-WebRequest -Uri "http://localhost:7070/_/ping").Content

Example output:

ACTIVE

tip

To enable HTTPS for the Observability API, configure the observability.api.secure block in the Configuration File.

5. Verify the UDMG Admin UI Endpoint

Test the UDMG Admin UI web server by running:

curl.exe https://localhost:8080/ui/ | findstr /R "<title>.*</title>"

If you are using a self-signed certificate for testing purposes, you may need to ignore certificate validation errors using the -ks flag:

curl.exe -ks https://localhost:8080/ui/ | findstr /R "<title>.*</title>"

Expected output:

<title>Stonebranch Universal Data Mover Gateway</title>

6. Open the UDMG Admin UI in a Browser

Use a web browser to navigate to:

• http://localhost:8080/ui/, or
• https://localhost:8080/ui/ (if HTTPS is enabled as recommended).

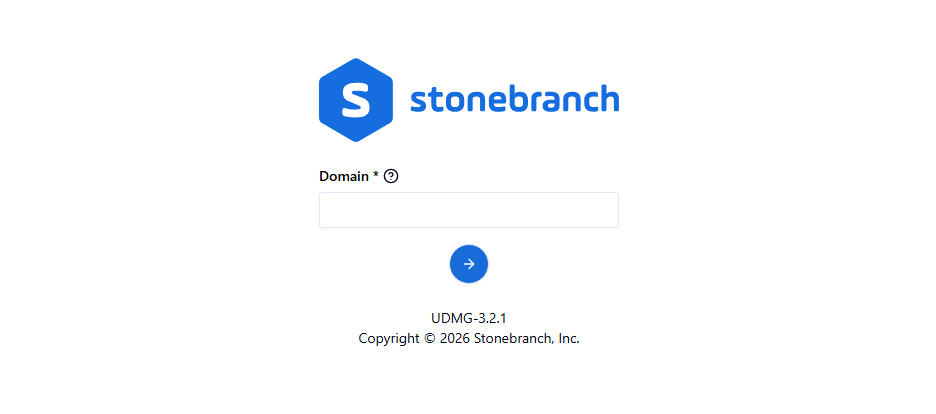

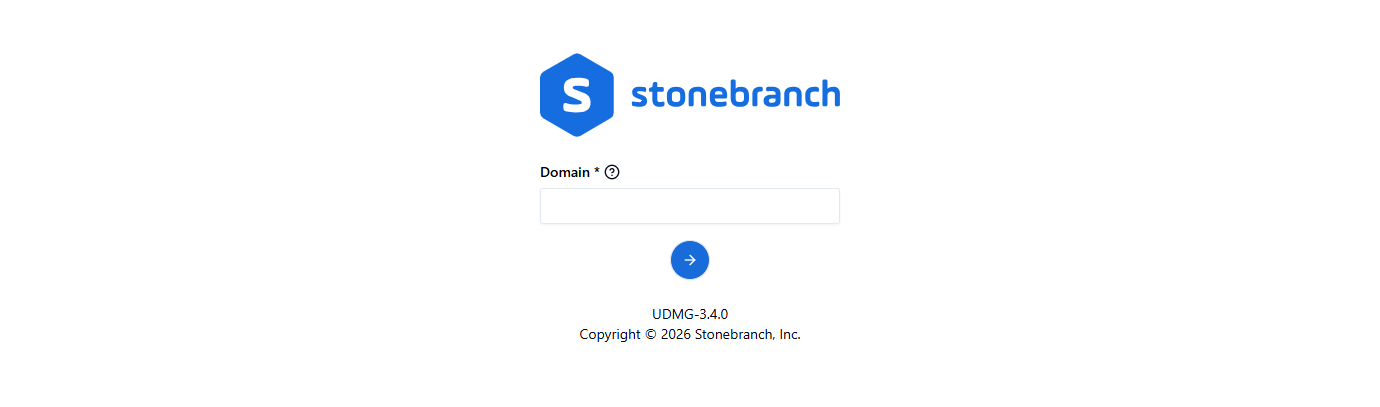

The following screenshot shows a successful login page load:

info

For detailed guidance on navigating and using the Admin UI, see the Admin UI Interface section.

Default Port Numbers

Default Port	Description	Configuration File Argument
8080	UDMG Server API Port	api.port
7070	UDMG Server Observability API Port	observability.api.port
4222	UDMG Server Cluster Client Port	cluster.client_port
6222	UDMG Server Cluster Server Port	cluster.cluster_port
