Create Entra App for Universal Portal

Next, we will set up an Entra application for Universal Portal. This is very similar to what we did for Universal Controller previously.

Step 1

Log into the Microsoft Azure Portal using your admin credentials.

Step 2

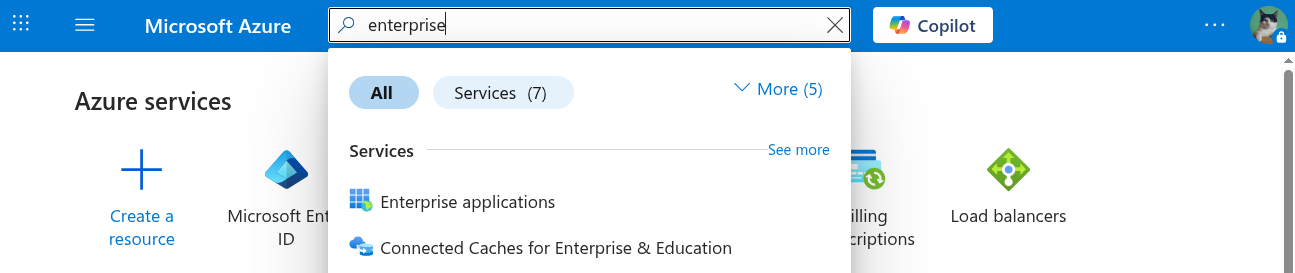

Go to Azure > Enterprise Applications.

Step 3

Go to Enterprise Applications

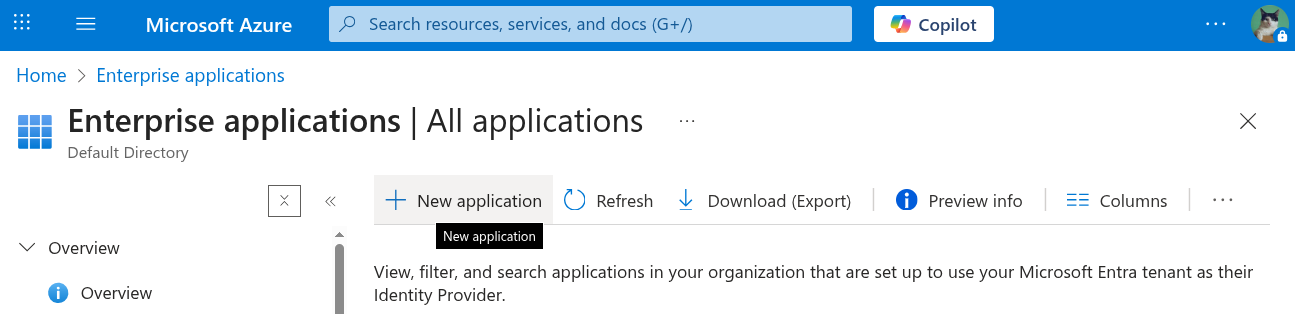

From Enterprise applications, click New application.

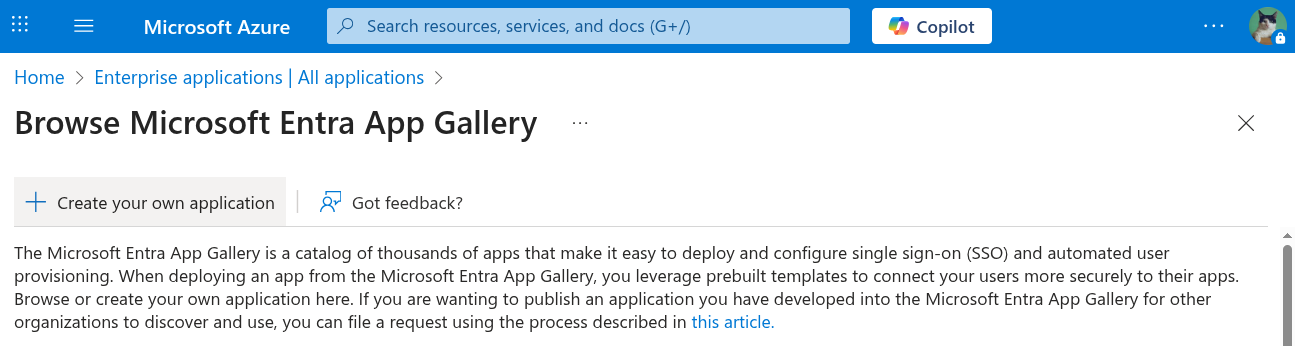

Then click Create your own application.

Step 4

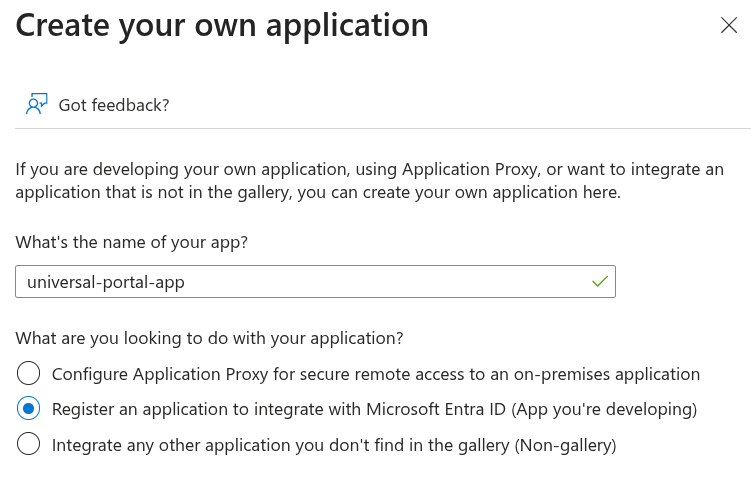

This application represents the Universal Portal.

Select the Register an application to integrate with Microsoft Entra ID (App you're developing) option**.**

Then, click Create.

Step 5

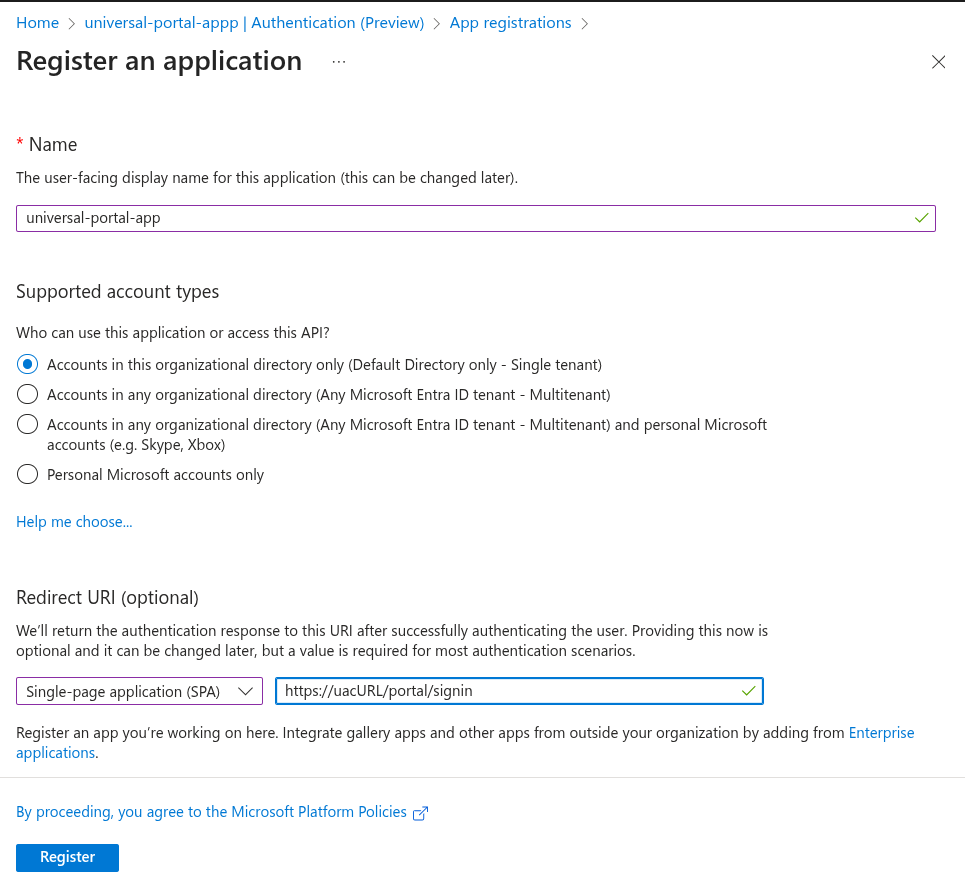

Select Single tenant for those who can access the application

Under Redirect URI

  • Select Single-Page application (SPA)
  • Add Redirect URI in the format https://uacURL/portal/signin

Click Register.

Step 6

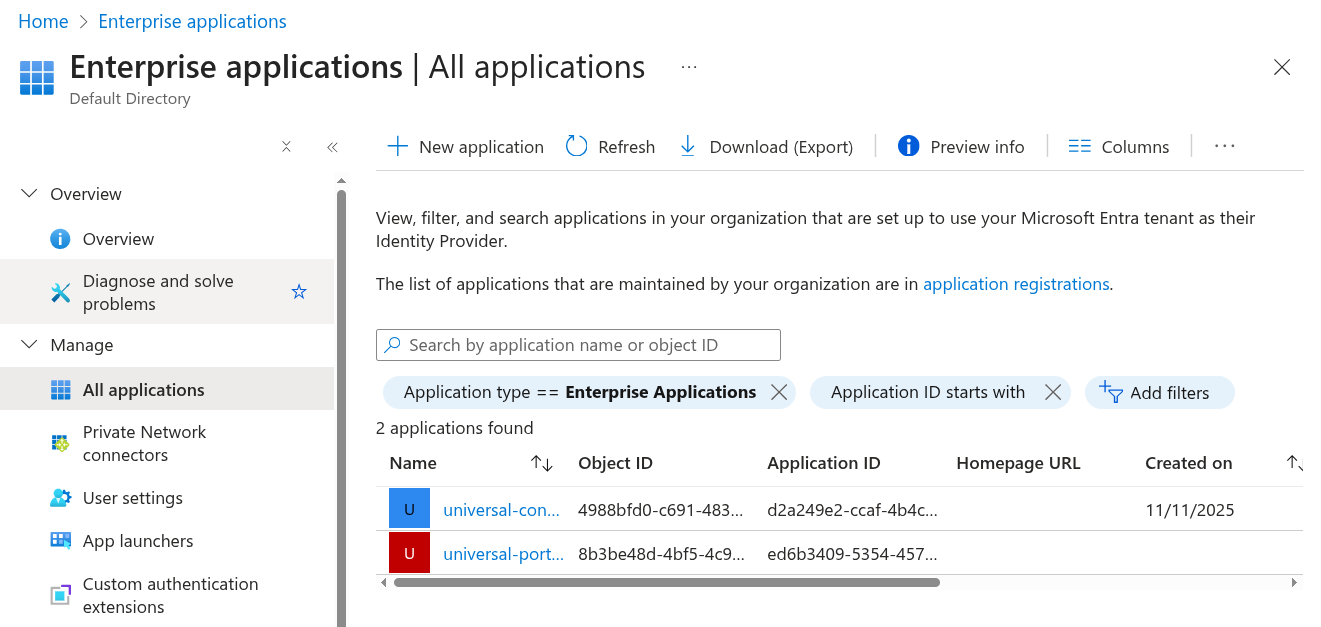

Go to Enterprise Applications > All Applications

Click Refresh and select the universal-portal-app from the list.

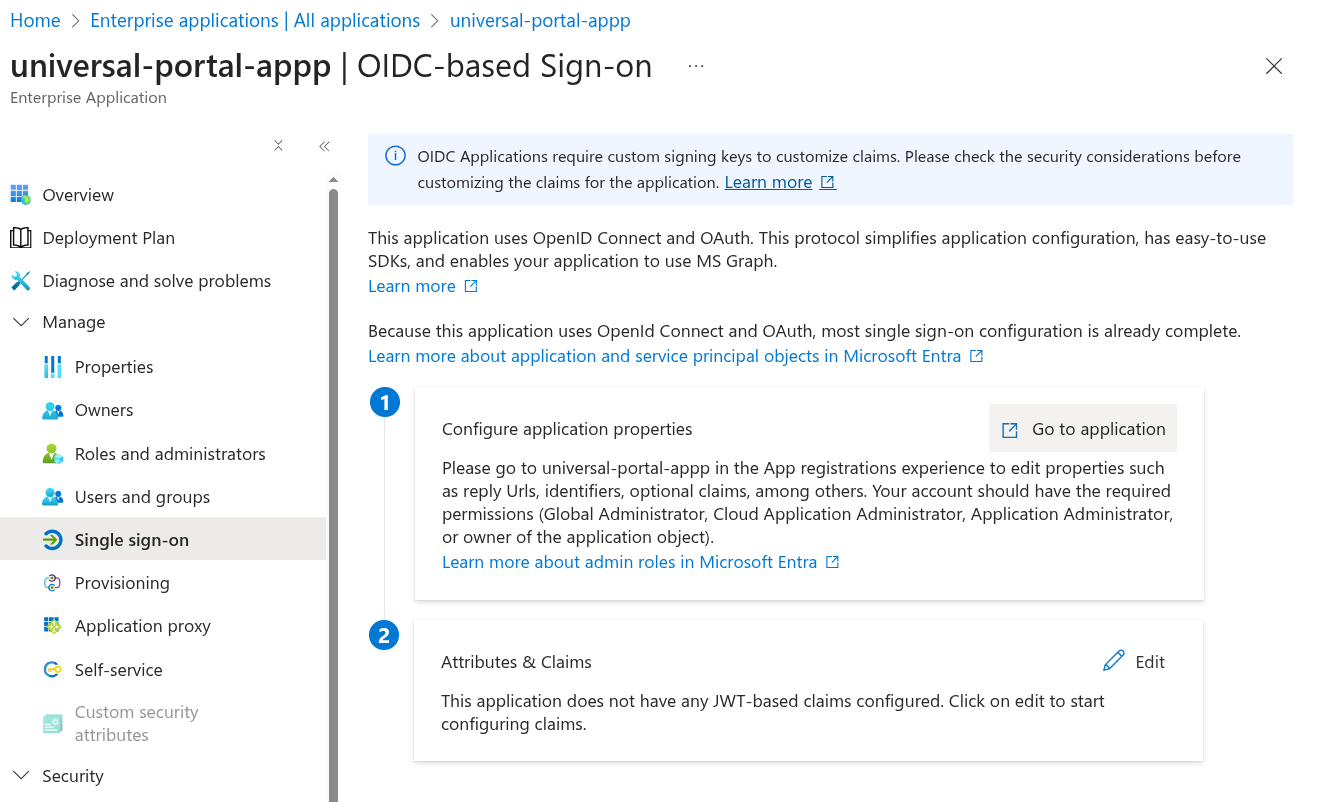

Click Single sign-on from the left navigation, and then click Go to Application.

Step 7

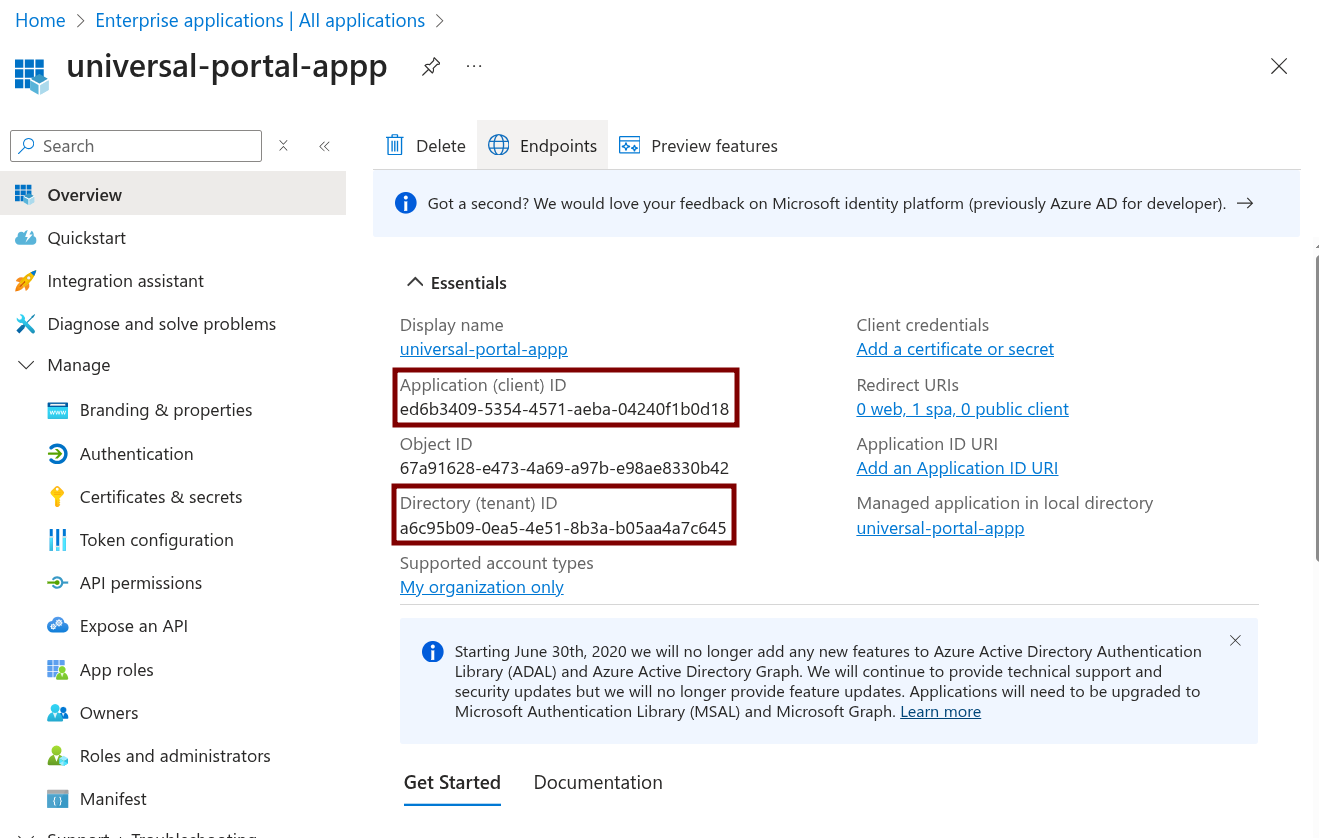

From the Overview, take note of both the Application (client) ID and Directory (tenant) ID, as we will need this information later.

Step 9

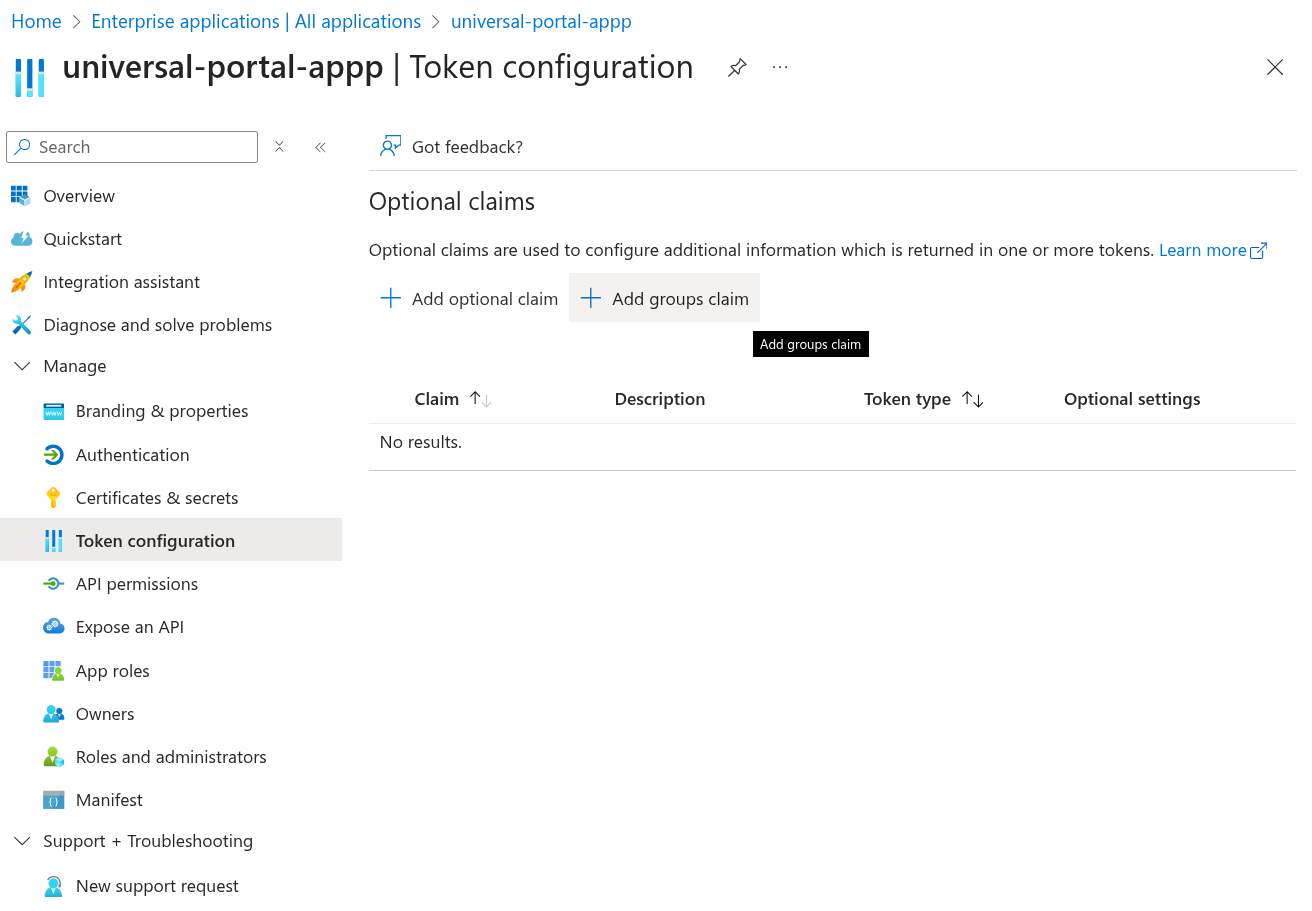

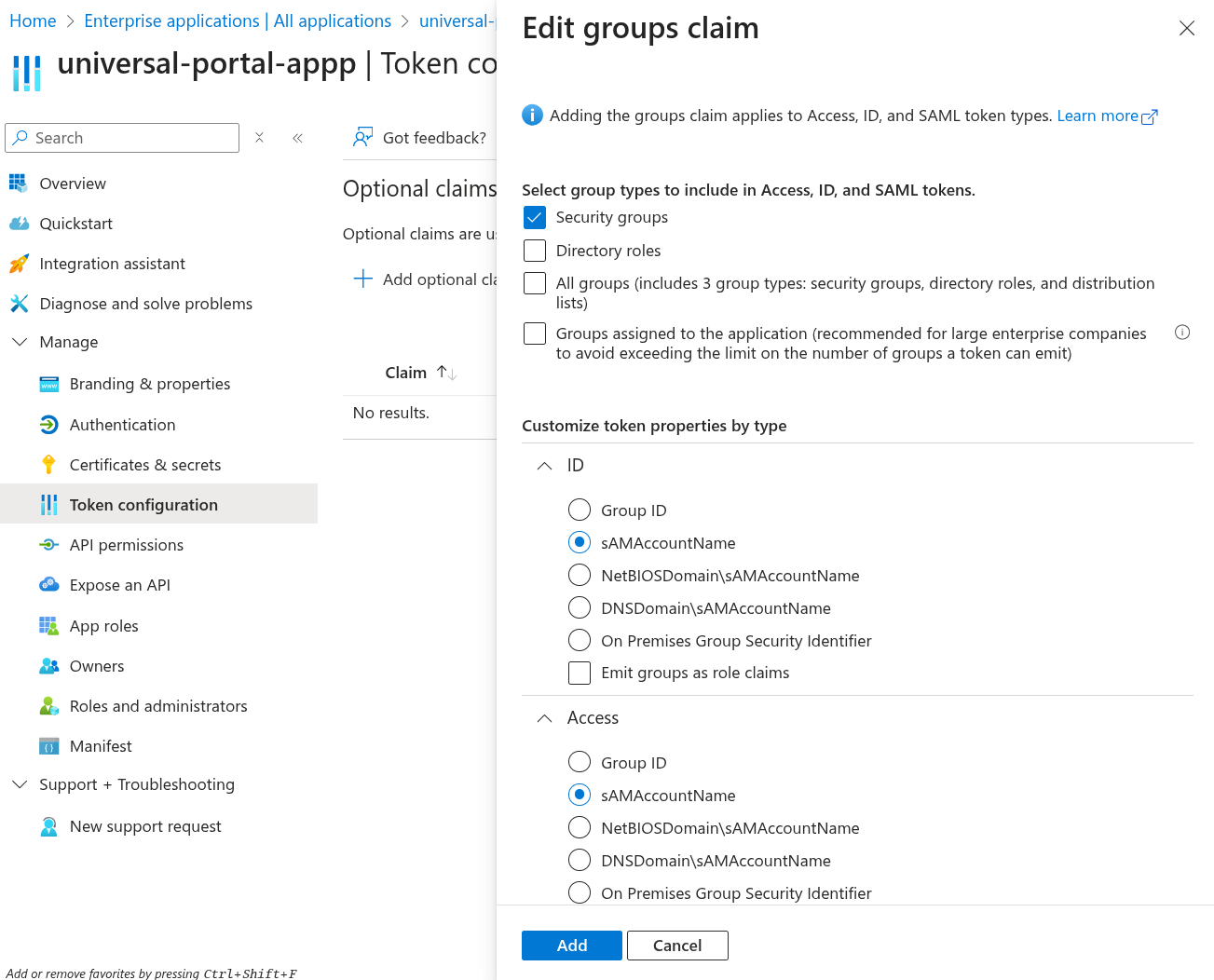

Go to Token configuration. Click Add groups claim.

In the opened dialog, select Security Groups, and assign sAMAccountName to the ID and Access token properties.

Click Add.

Step 10

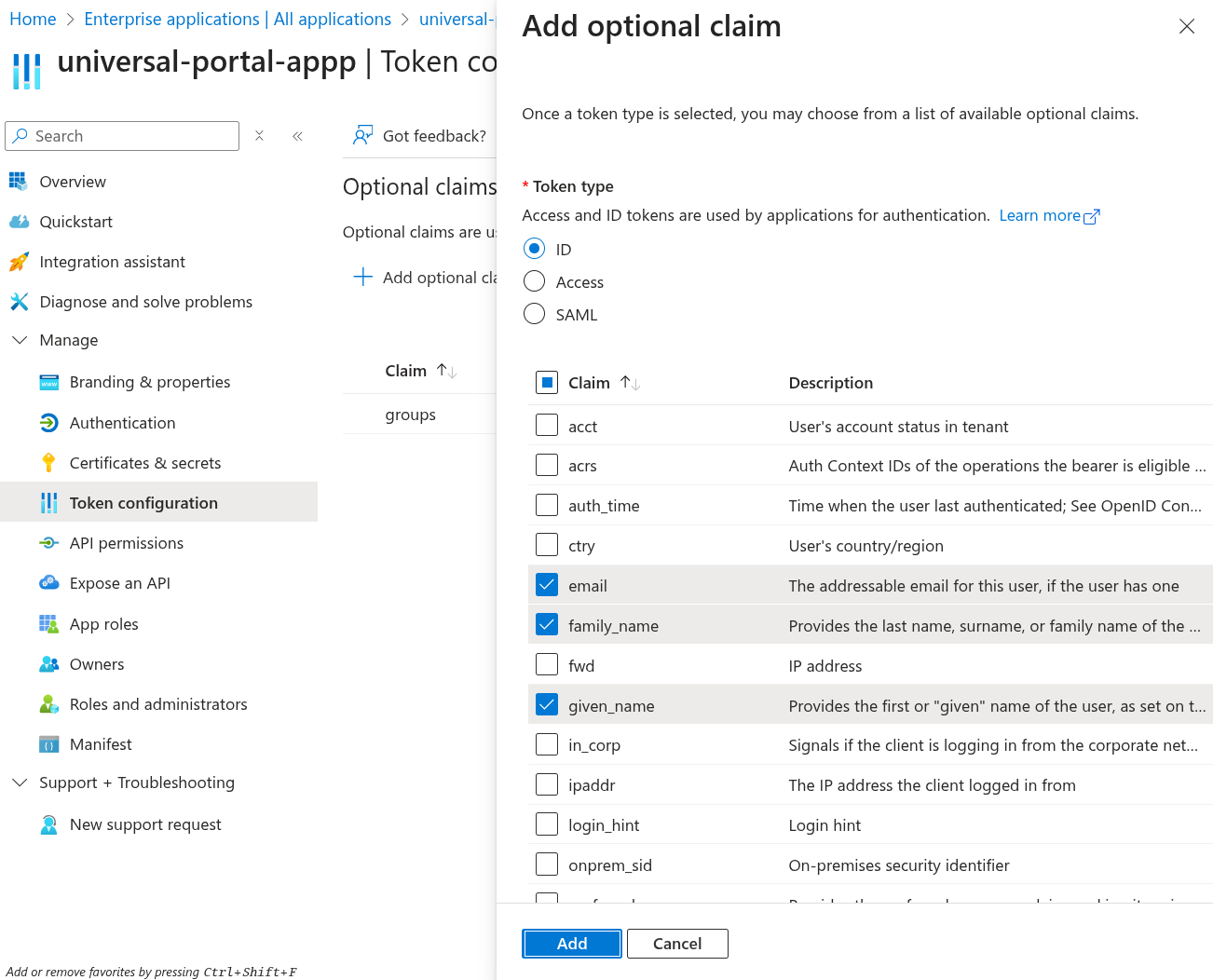

Go to Token configuration. Click Add optional claim.

Select ID from the options, and choose email, family_name, given_name, preferred_username.

Click Add.

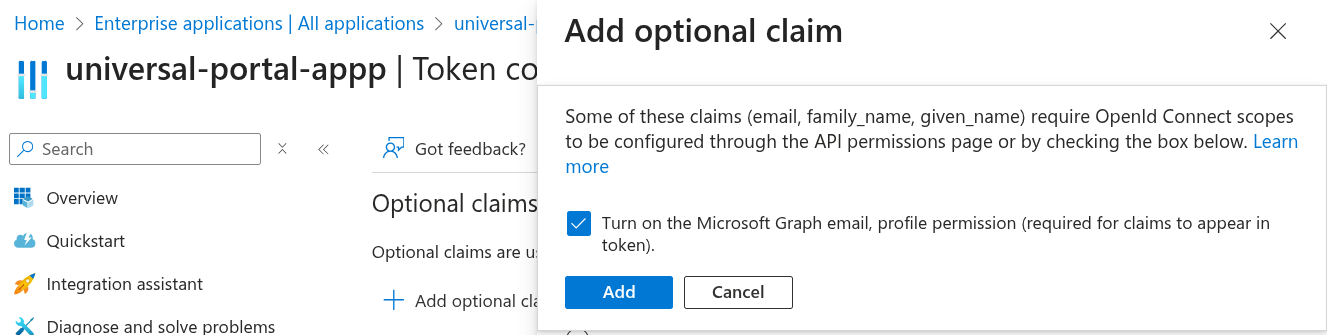

Check Turn on the Microsoft Graph email, profile permission (required for claims to appear in token).

Click Add.

Step 11

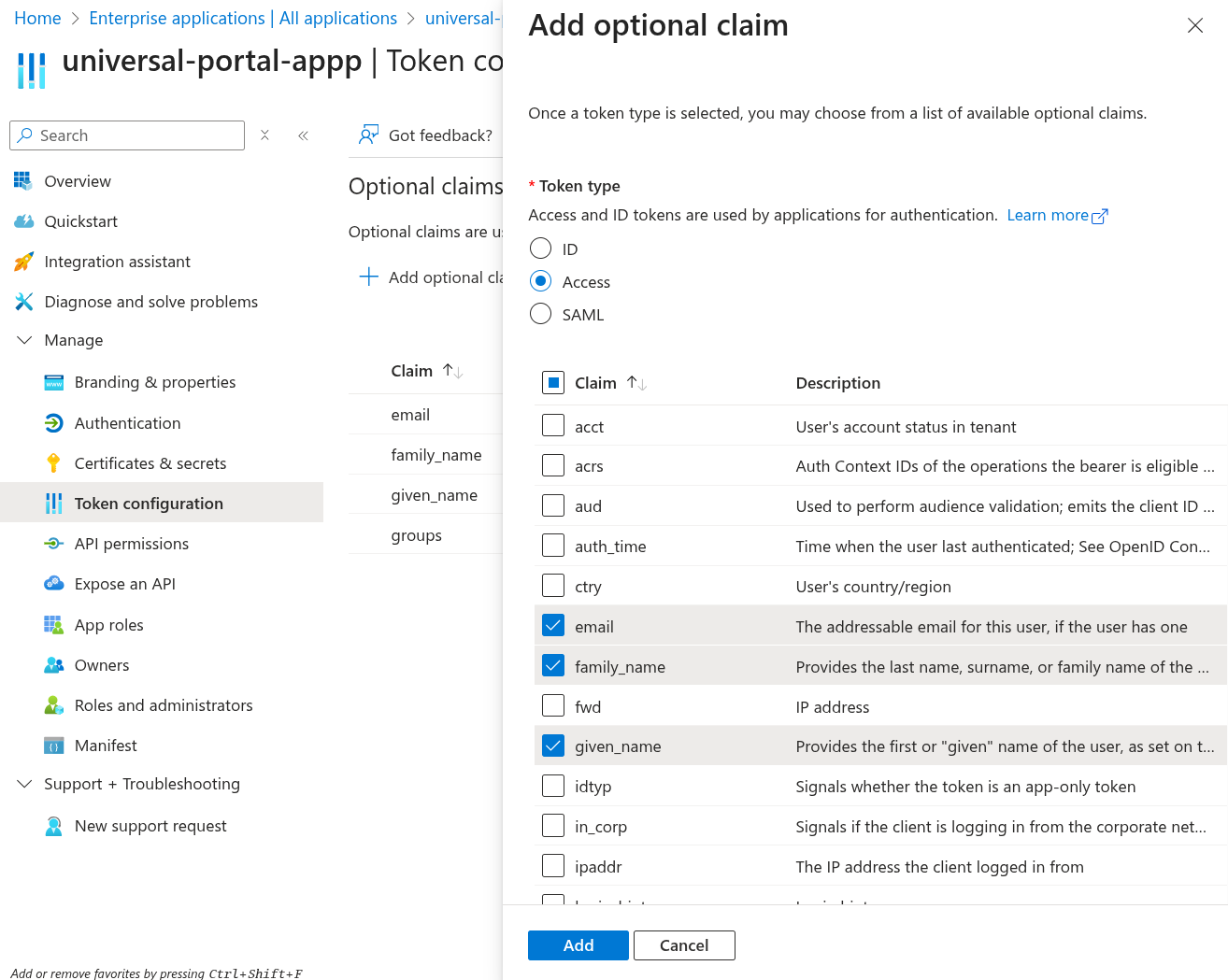

Go to Token configuration. Click Add optional claim again.

This time, select Access from the options, and choose email, family_name, given_name, preferred_username.

Click Add.

Step 12

Go to Token configuration

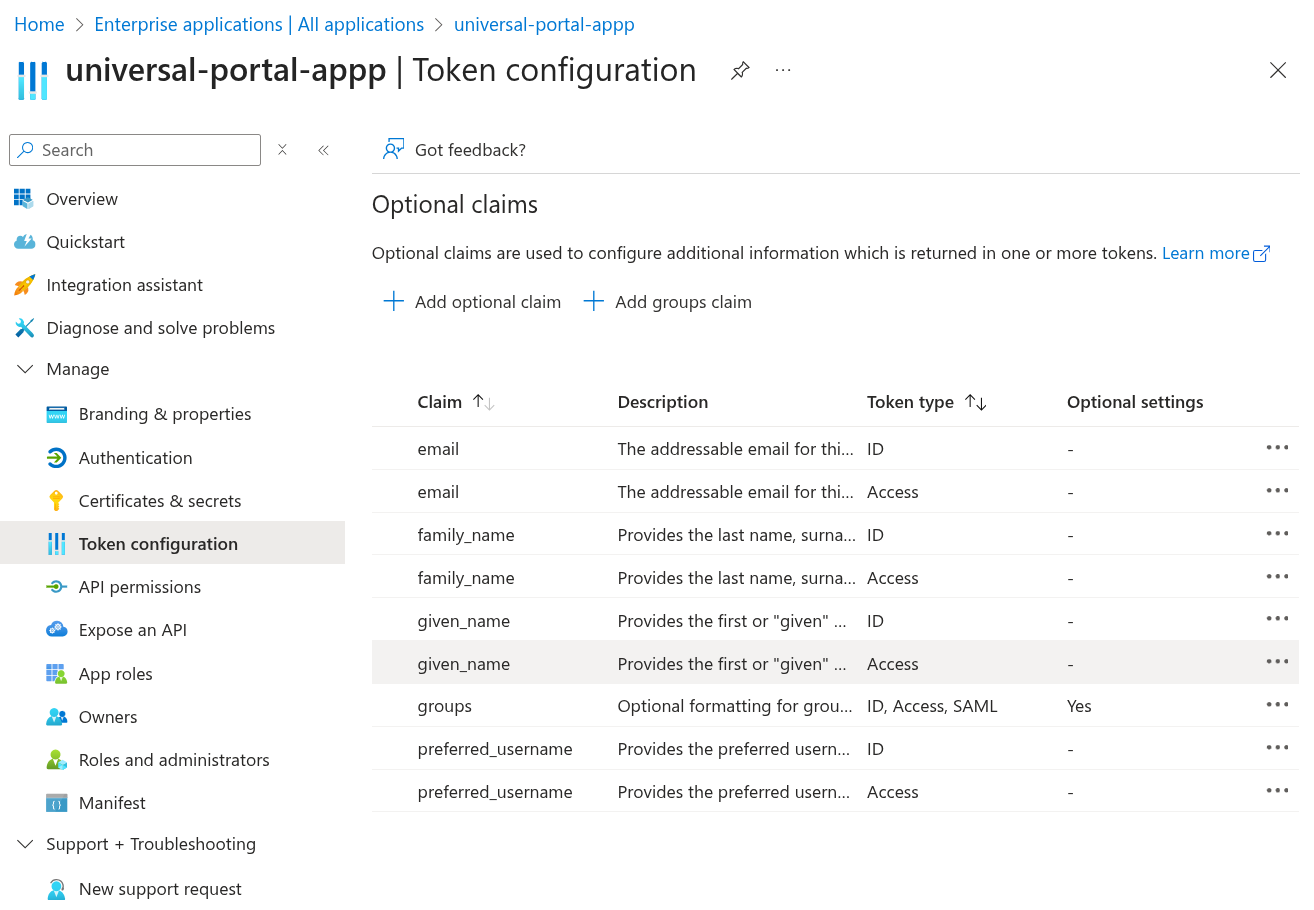

Once you are all done, confirm you have all the claims in place.

Step 13

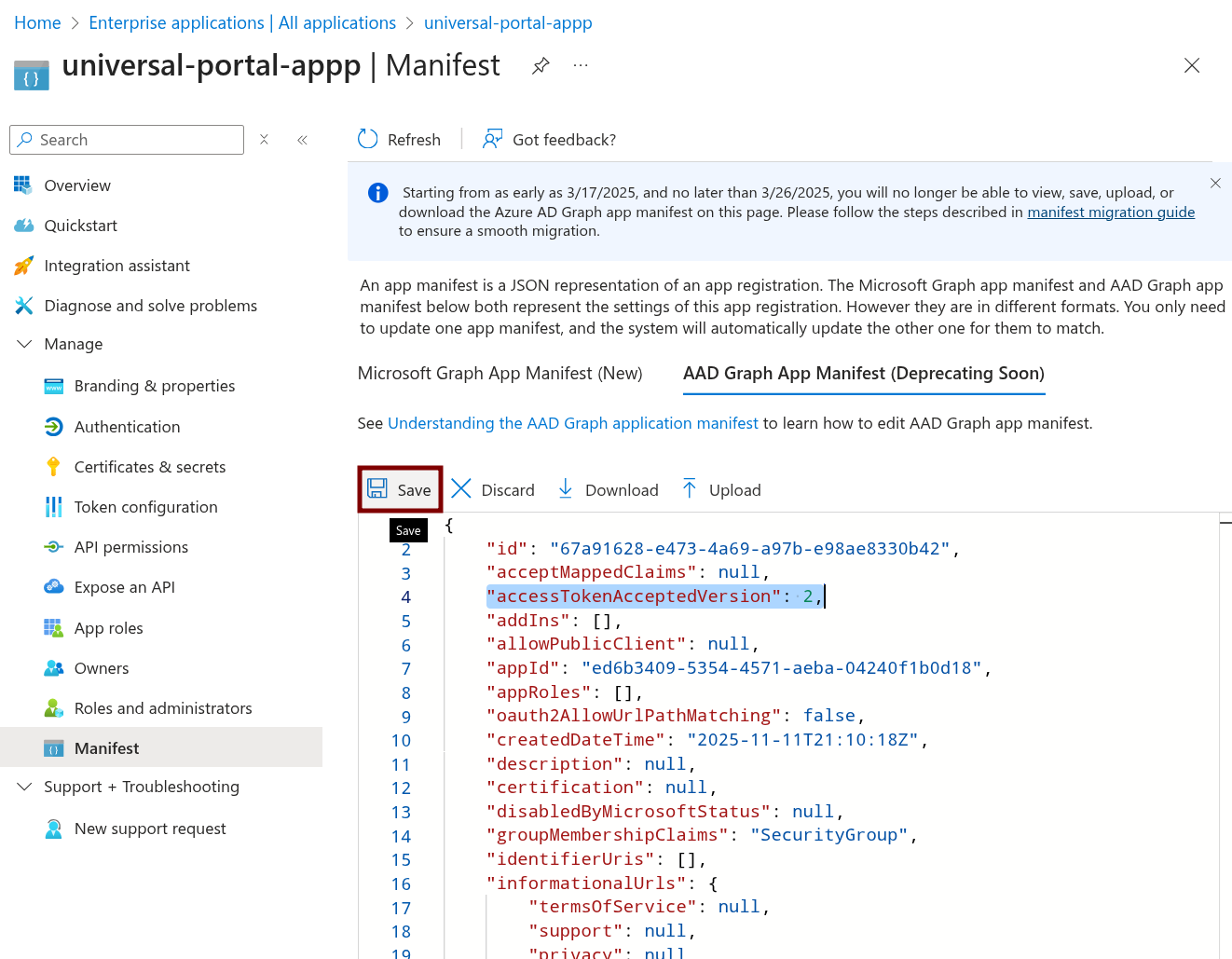

Go to Manifest.

Select AAD Graph APP Manifest.

Find this line:

"accessTokenAcceptedVersion": null

Update the value to 2:

"accessTokenAcceptedVersion": 2

Click Save.

Step 14

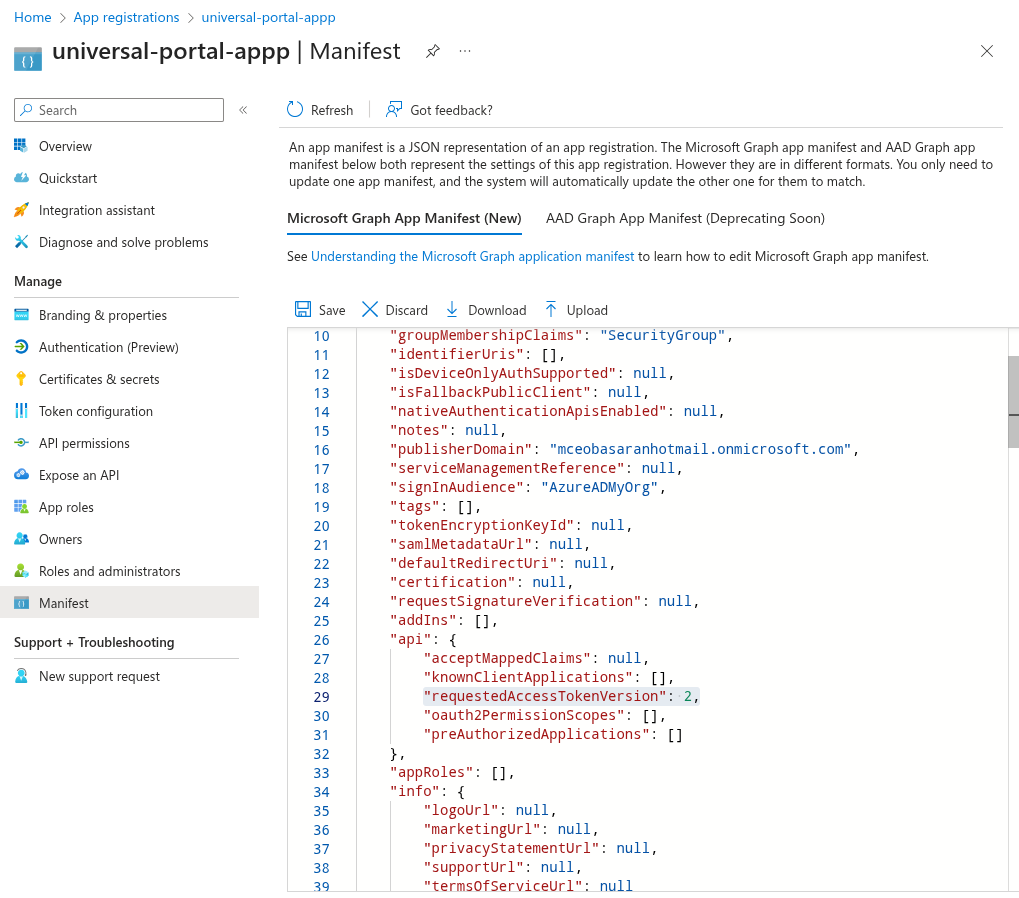

Go to Manifest.

Select Microoft Graph App Manifest (New).

Find this line:

"requestedAccessTokenVersion": null

Update the value to 2:

"requestedAccessTokenVersion": 2

Click Save.

Step 15

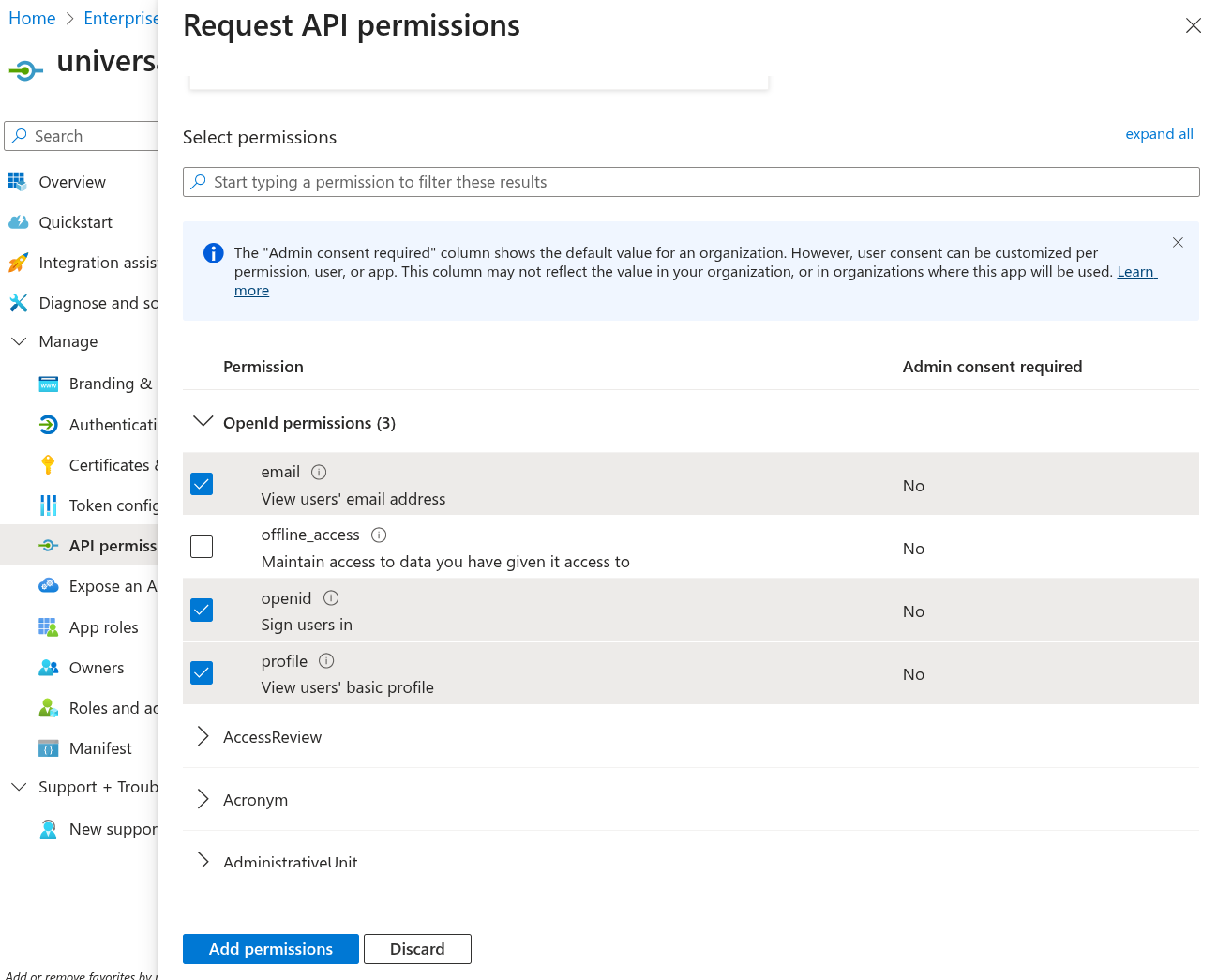

Go to API Permissions. Click Add a Permission.

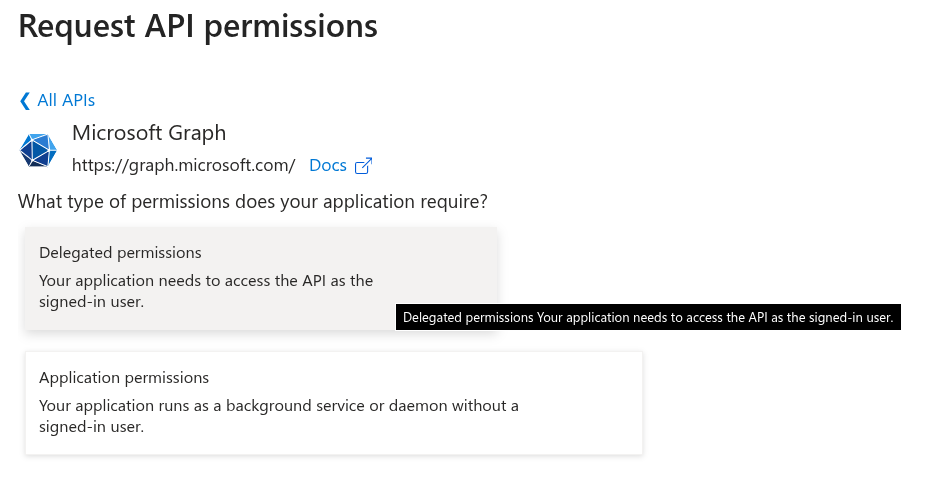

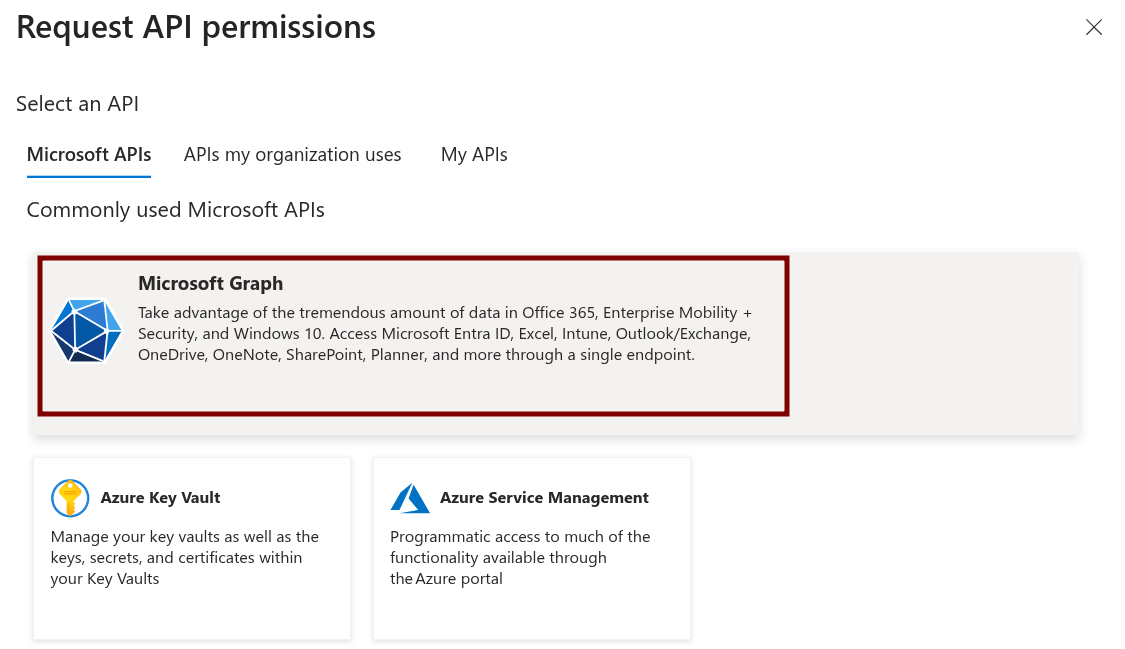

Select Microsoft Graph.

Select Delegated permissions.

Scroll down and make sure email, openid, and profile are checked.

Click Add permissions.

Step 16

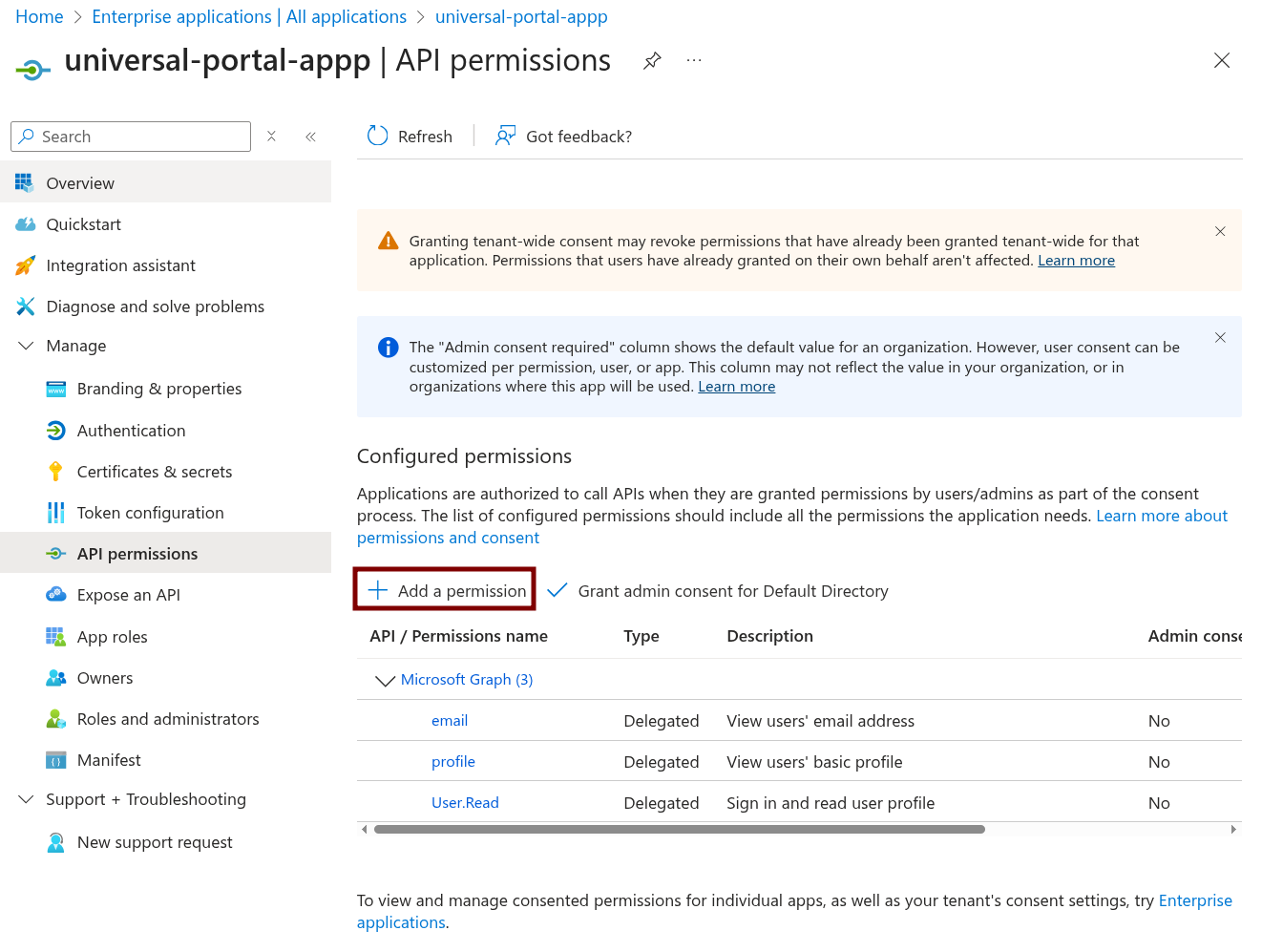

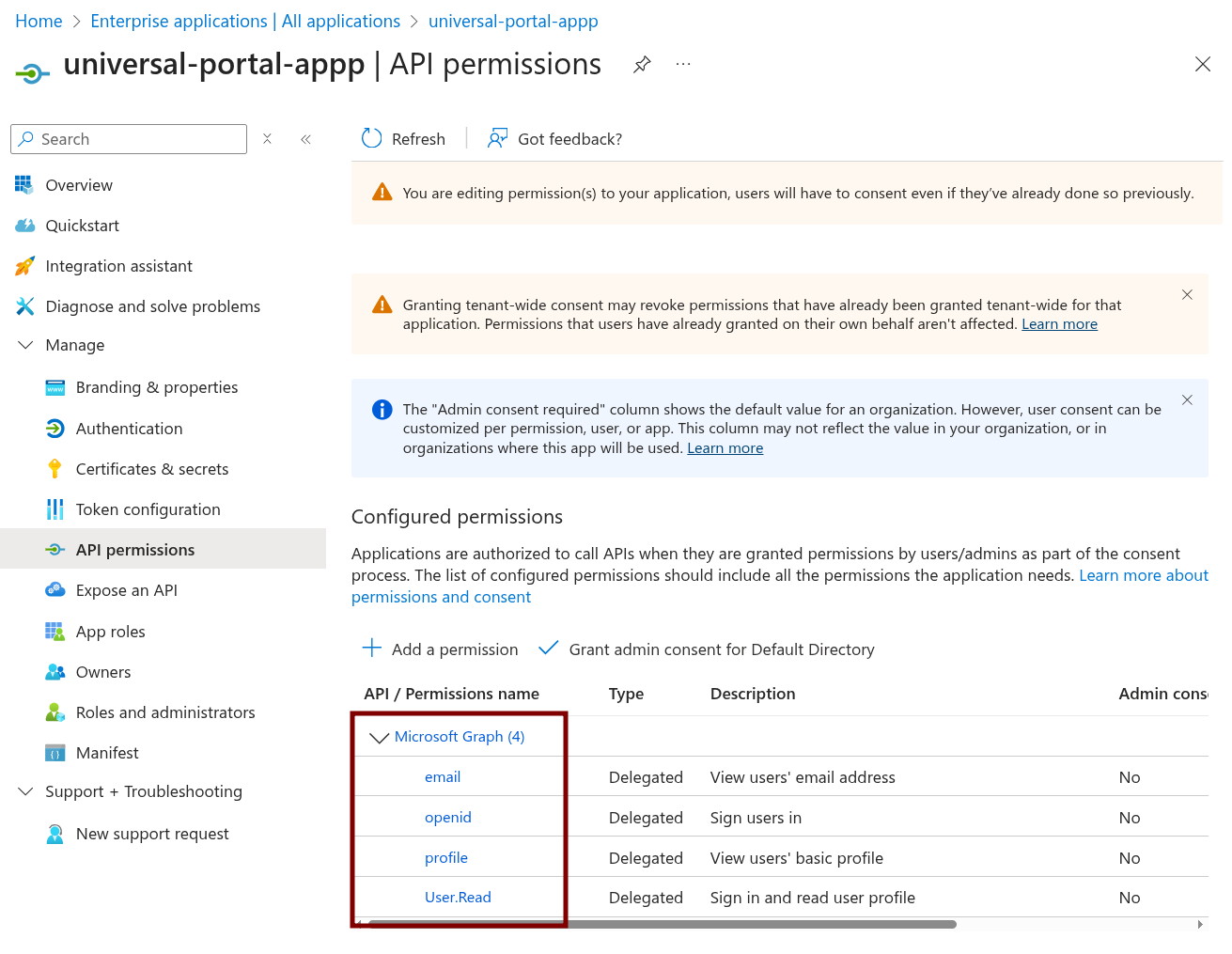

Confirm you have the right API permissions.
